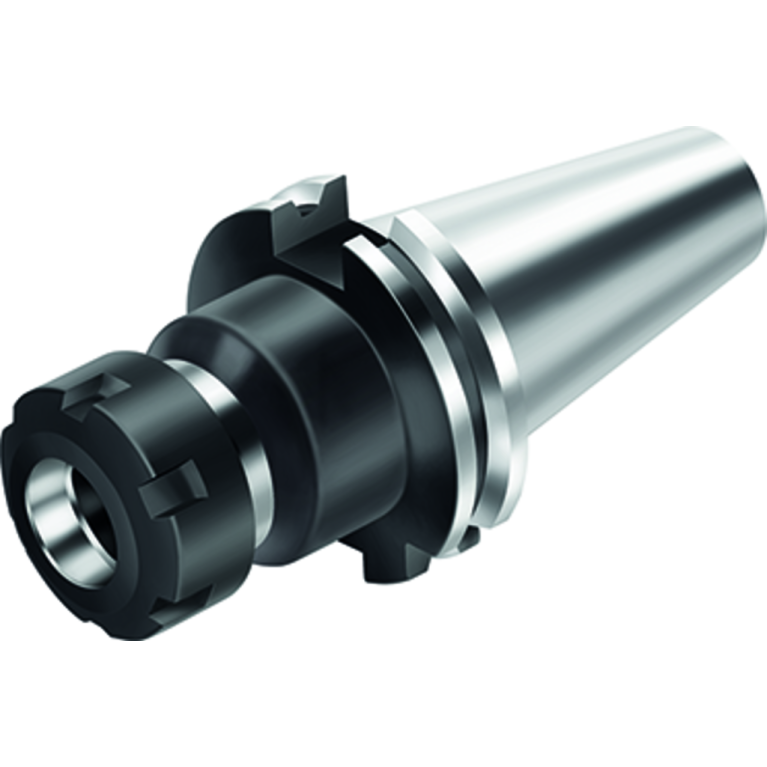

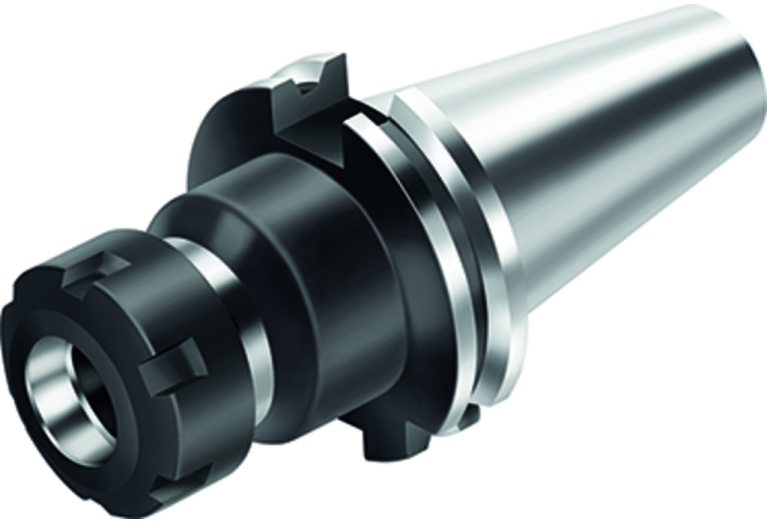

AK300.S40.075.ER16

Артикул: 6258741

В наличии

В корзину

Описание

Характеристики

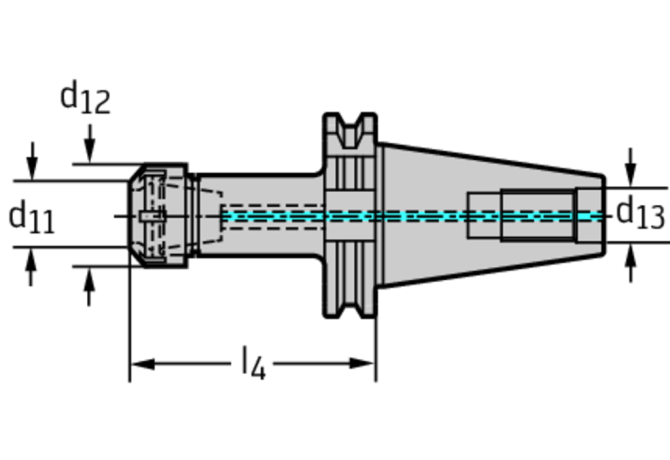

BD Body diameter

28 mm

BD Body diameter 2

28 mm

BD Body diameter 3

63.55 mm

CCFWS Form

CCSWS Style

CCTWS Type

SZD

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0160

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

63.55 mm

DIN

SKG04001795

DLN Diameter lock nut

28 mm

FamilyProducts

DIN 69871 AD/B ER collet chuck AK300.S

ID Technical product number

6258741

Interface codes

J6 / J61

ISO

SKG17C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

52.9 mm

LB Length 2

55.9 mm

LB Length Body diameter 3

75 mm

LF Functional length

75 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0160

LOC-01 ISO

SZD02C0160****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD01600295

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

17 mm

LOC-03 ISO

SKG17C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04001795

LPR Protruding length

75 mm

Name Identifying order number

AK300.S40.075.ER16

OAL Overall length

143.4 mm

RPMX Rotational speed maximum

12000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO7388-1

THSZMS Connection thread nominal size machine side

M16

WT Weight of item

1.123 kg
