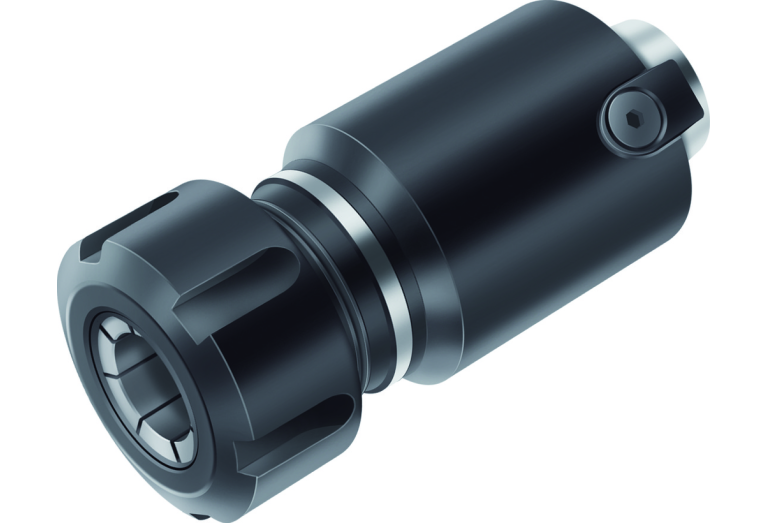

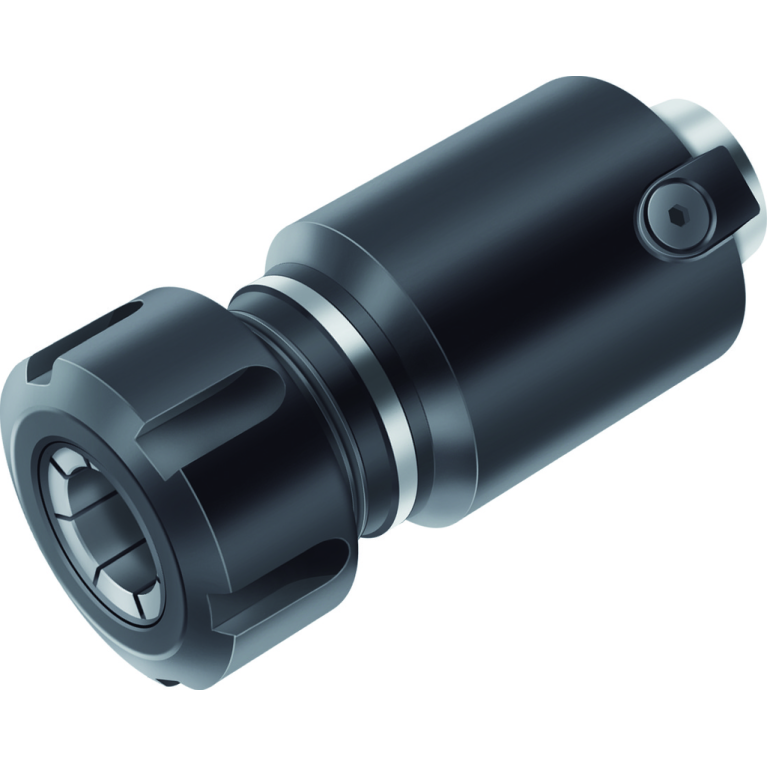

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK300M.0.50.080.26

AK300M.0.50.080.26

AK300M.0.50.080.26 AK300M.0.50.080.26 AK300M.0.50.080.26

AK300M.0.50.080.26

Walter
Артикул: 5034501
В наличии
В корзину
Описание
Характеристики

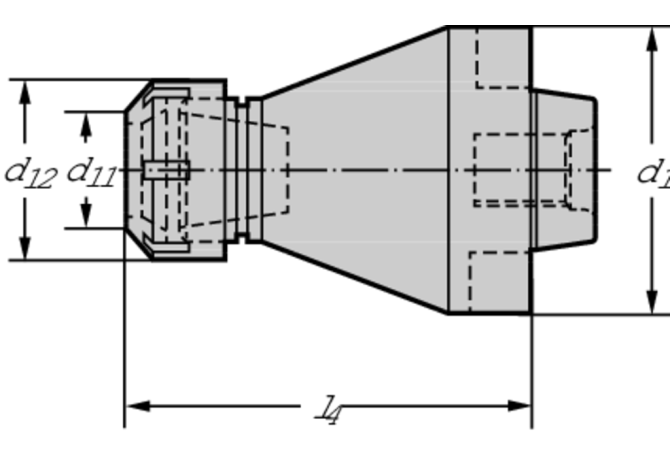

BD Body diameter
63 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0400
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
50 mm
DIN
NCT05000185
DLN Diameter lock nut
63 mm
FamilyProducts
ER collet chucks AK300M
ID Technical product number
5034501
Interface codes
J6 / J61
ISO
NCT01C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
80 mm
LF Functional length
68 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
0400
LOC-01 ISO
SZD02C0400****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD04000285
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
NCT Novex-NC-Tools WALTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
NCT01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
NCT05000185
LPR Protruding length
80 mm
LS Shank length
12 mm
Name Identifying order number
AK300M.0.50.080.26
OAL Overall length
92 mm
RPMX Rotational speed maximum
30000 1/min
WT Weight of item
1.068 kg
