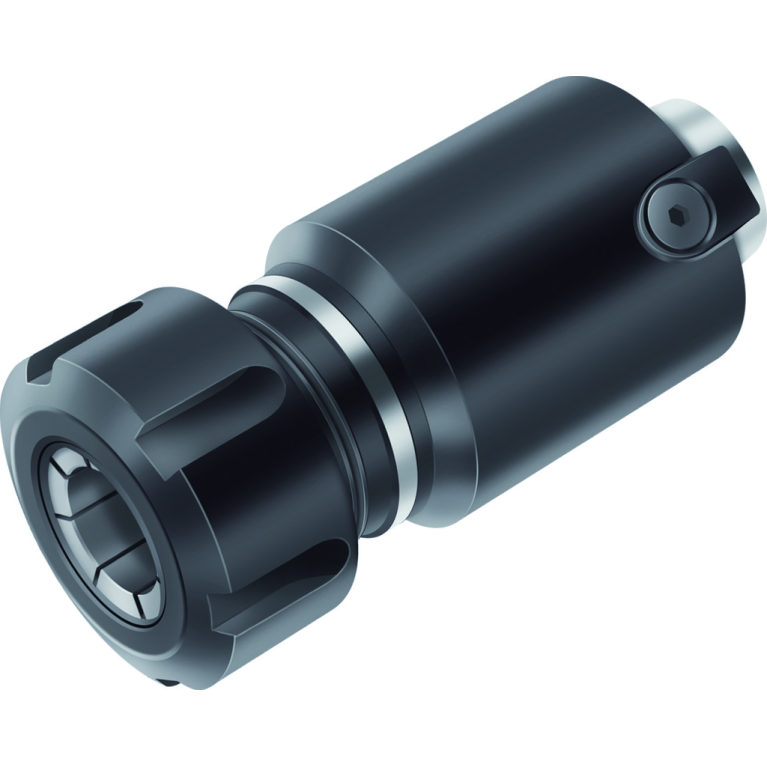

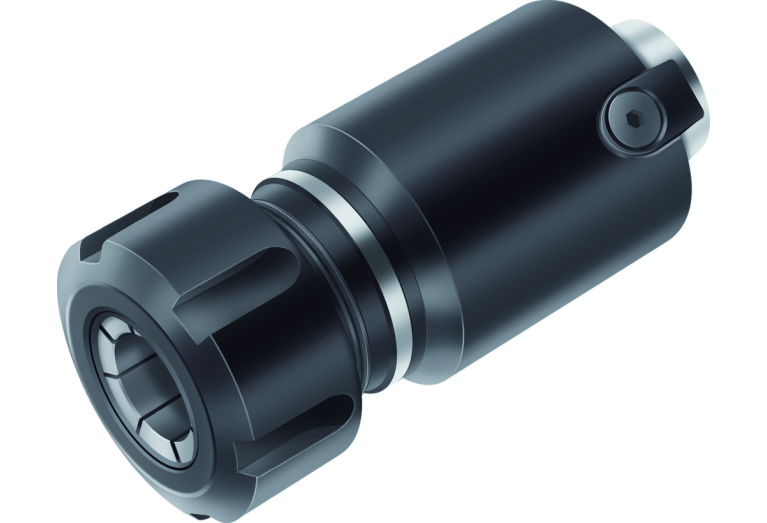

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK300M.0.32.055.10

AK300M.0.32.055.10

AK300M.0.32.055.10 AK300M.0.32.055.10 AK300M.0.32.055.10

AK300M.0.32.055.10

Walter
Артикул: 5043219
В наличии
В корзину
Описание
Характеристики

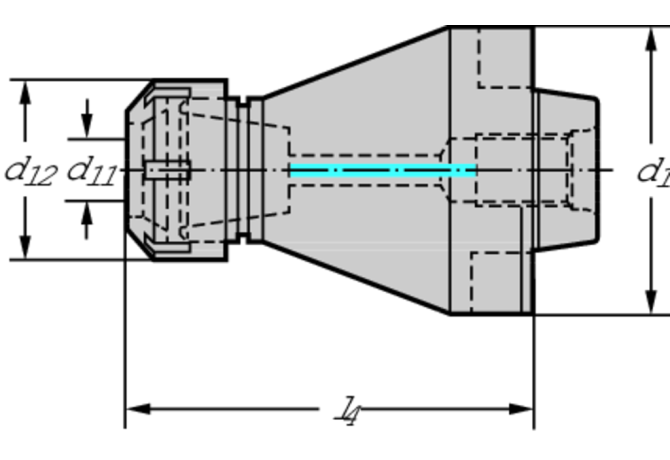

BD Body diameter
28 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0160
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
32 mm
DIN
NCT03200195
DLN Diameter lock nut
28 mm
FamilyProducts
ER collet chuck with internal cooling AK300M
ID Technical product number
5043219
Interface codes
J6 / J61
ISO
NCT01C0320$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
35.6 mm
LF Functional length
39.4 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0160
LOC-01 ISO
SZD02C0160****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD01600295
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
NCT Novex-NC-Tools WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
NCT01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
NCT03200195
LPR Protruding length
55 mm
LS Shank length
7 mm
Name Identifying order number
AK300M.0.32.055.10
OAL Overall length
62 mm
RPMX Rotational speed maximum
30000 1/min
WT Weight of item
0.203 kg
