Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK300.7.100.100.20.HSK

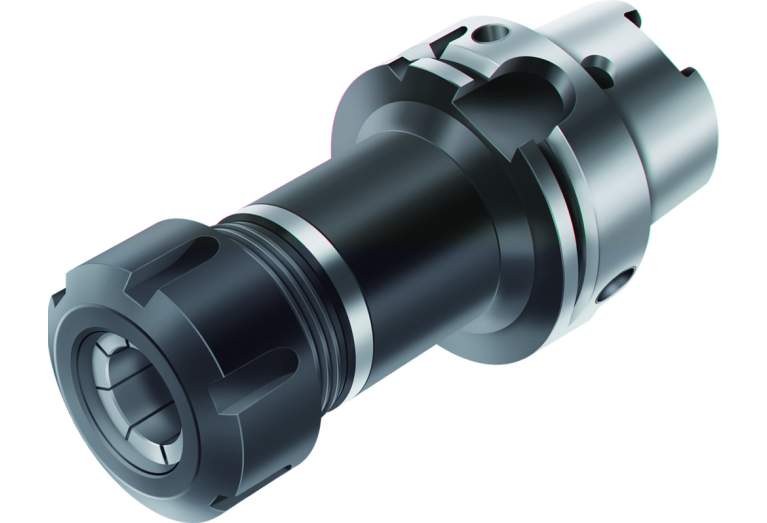

AK300.7.100.100.20.HSK

AK300.7.100.100.20.HSK AK300.7.100.100.20.HSK AK300.7.100.100.20.HSK

AK300.7.100.100.20.HSK

Walter
Артикул: 5043229
В наличии
В корзину
Описание
Характеристики
BD Body diameter
50 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0320
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
100 mm
DIN
HSK10000185
DLN Diameter lock nut
50 mm
FamilyProducts
DIN 69893-1 A ER collet chuck AK300...HSK
ID Technical product number
5043229
Interface codes
J6 / J61
ISO
HSK01C1000$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
71 mm
LF Functional length
87 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
0320
LOC-01 ISO
SZD02C0320****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD03200285
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
HSK Hollow taper shank
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
100 mm
LOC-03 ISO
HSK01C1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000185
LPR Protruding length
100 mm
LS Shank length
50 mm
Name Identifying order number
AK300.7.100.100.20.HSK
OAL Overall length
150 mm
RPMX Rotational speed maximum
30000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO12164-1
WT Weight of item
2.64 kg
