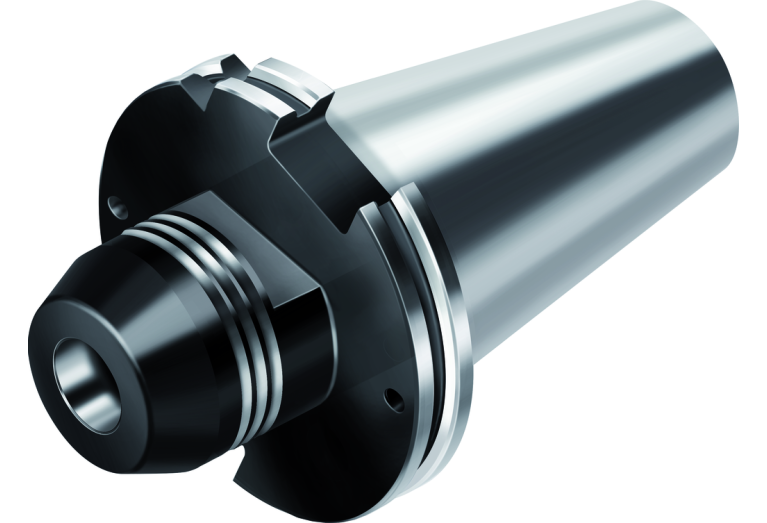

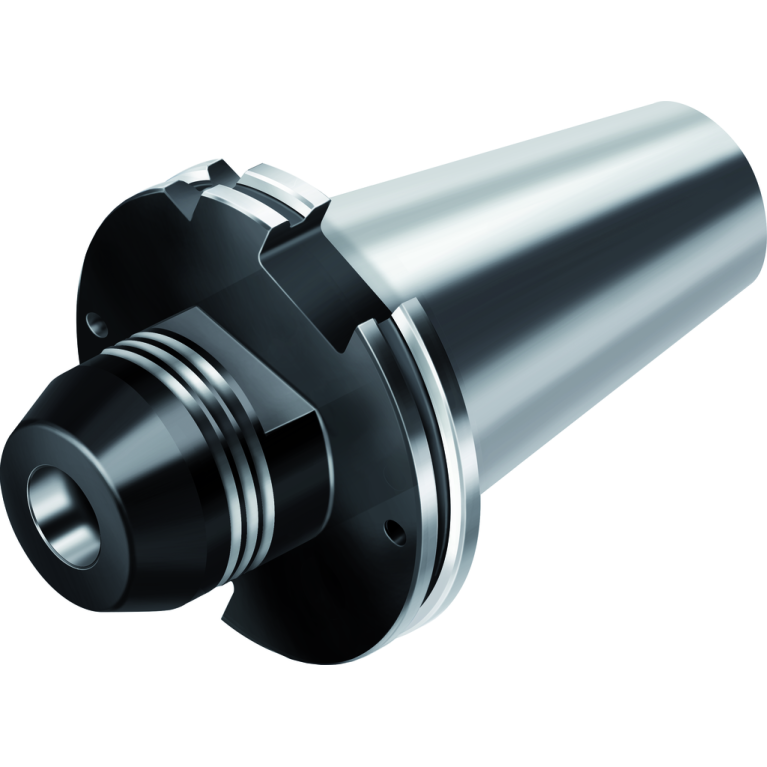

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK182.S50.081.32

AK182.S50.081.32

Артикул: 6381127

В наличии

В корзину

Описание

Характеристики

BD Body diameter

58.5 mm

BD Body diameter 2

72 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0320

DCONWS Diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

97.5 mm

DIN

SKG05001795

FamilyProducts

DIN 69871 hydraulic expansion chuck AK182.S

ID Technical product number

6381127

Interface codes

J6 / J61

ISO

SKG17C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

18.2 mm

LB Length 2

61.95 mm

LF Functional length

20 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0320

LOC-01 DCONWS Diameter

32 mm

LOC-01 ISO

ZYL10G3200****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL03201315

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

1 Metric with coolant

LOC-02 CZCWS Size code

0320

LOC-02 DCONWS Diameter

32 mm

LOC-02 ISO

SZC02G3200****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SZC03200215

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

32 mm

LOC-03 ISO

SKG17C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001795

LPR Protruding length

81 mm

LS Shank length

101.75 mm

LSCN Clamping length minimum

51 mm

LSCX Clamping length maximum

61 mm

Name Identifying order number

AK182.S50.081.32

OAL Overall length

182.6 mm

RPMX Rotational speed maximum

12000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO7388-1

THSZMS Connection thread nominal size machine side

M24

WT Weight of item

4.1 kg
