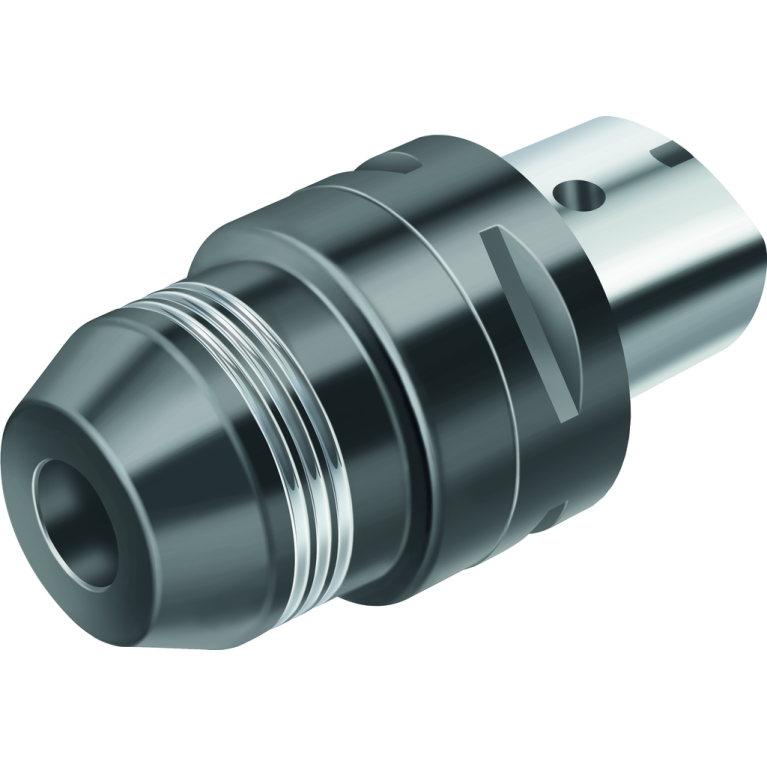

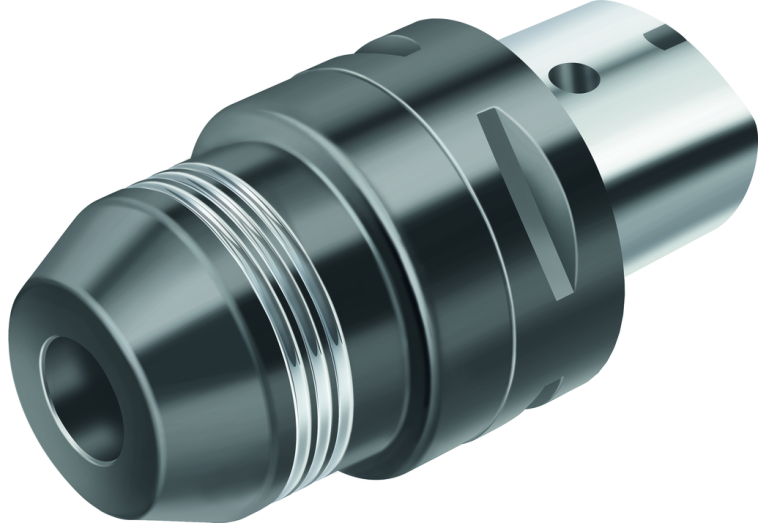

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK182.C5.070.12

AK182.C5.070.12

Артикул: 6852121

В наличии

В корзину

Описание

Характеристики

BD Body diameter

32 mm

BD Body diameter 2

42 mm

BD Body diameter 3

49.5 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0120

DCONWS Diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS05000195

FamilyProducts

Walter Capto TM hydraulic expansion chuck ISO 26623-1 AK182.C

ID Technical product number

6852121

Interface codes

J6 / J61

ISO

CCS01C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

10.3 mm

LB Length 2

33 mm

LB Length Body diameter 3

49 mm

LF Functional length

24 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0120

LOC-01 DCONWS Diameter

12 mm

LOC-01 ISO

ZYL10G1200****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01201315

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

1 Metric with coolant

LOC-02 CZCWS Size code

0120

LOC-02 DCONWS Diameter

12 mm

LOC-02 ISO

SZC02G1200****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SZC01200215

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

CCS01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LPR Protruding length

70 mm

LS Shank length

30 mm

LSCN Clamping length minimum

36 mm

LSCX Clamping length maximum

46 mm

Name Identifying order number

AK182.C5.070.12

OAL Overall length

100 mm

RPMX Rotational speed maximum

28000 1/min

STDNO Standard

ISO26623-1

WT Weight of item

1.008 kg
