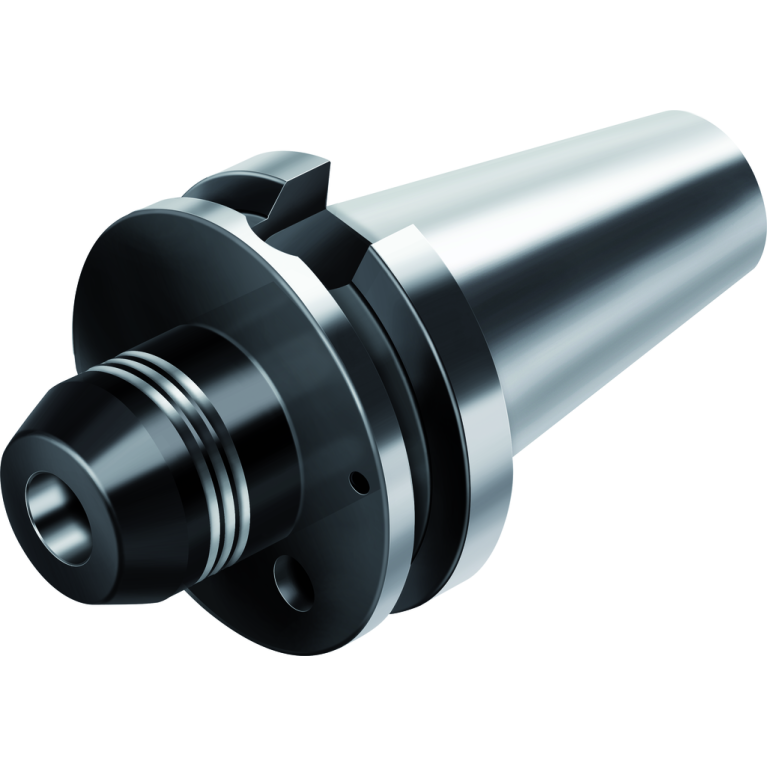

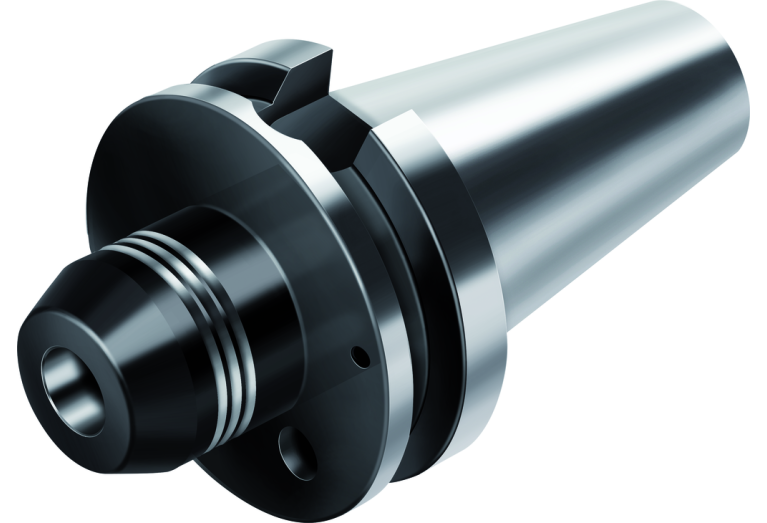

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK182.BT30.069.12

AK182.BT30.069.12

Артикул: 6852042

В наличии

В корзину

Описание

Характеристики

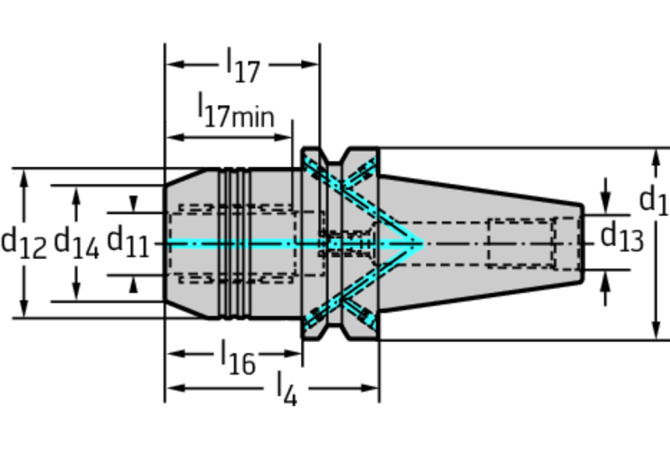

BD Body diameter

32 mm

BD Body diameter 2

42 mm

BD Body diameter 3

44.45 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0120

DCONWS Diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

46 mm

DIN

SKG03005195

FamilyProducts

MAS-BT JIS B 6339 hydraulic expansion chuck AK182.BT

ID Technical product number

6852042

Interface codes

J6 / J61

ISO

SKG51C0300$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

10.3 mm

LB Length 2

31 mm

LB Length Body diameter 3

47 mm

LF Functional length

23 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0120

LOC-01 DCONWS Diameter

12 mm

LOC-01 ISO

ZYL10G1200****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01201315

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

1 Metric with coolant

LOC-02 CZCWS Size code

0120

LOC-02 DCONWS Diameter

12 mm

LOC-02 ISO

SZC02G1200****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SZC01200215

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0300

LOC-03 DCONMS Diameter

12 mm

LOC-03 ISO

SKG51C0300$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG03005195

LPR Protruding length

69 mm

LS Shank length

48.4 mm

LSCN Clamping length minimum

36 mm

LSCX Clamping length maximum

46 mm

Name Identifying order number

AK182.BT30.069.12

OAL Overall length

117.4 mm

RPMX Rotational speed maximum

12000 1/min

STDLET Standard letter to the standard number

STDNO Standard

MAS403-BT

THSZMS Connection thread nominal size machine side

M12

WT Weight of item

0.85 kg
