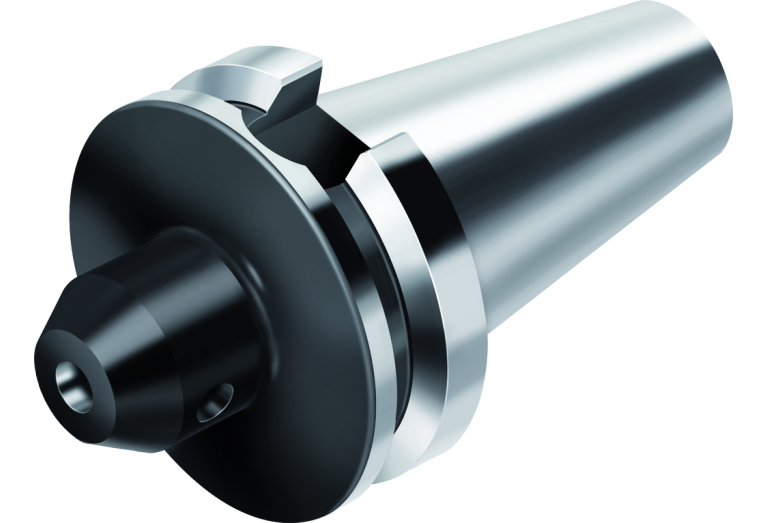

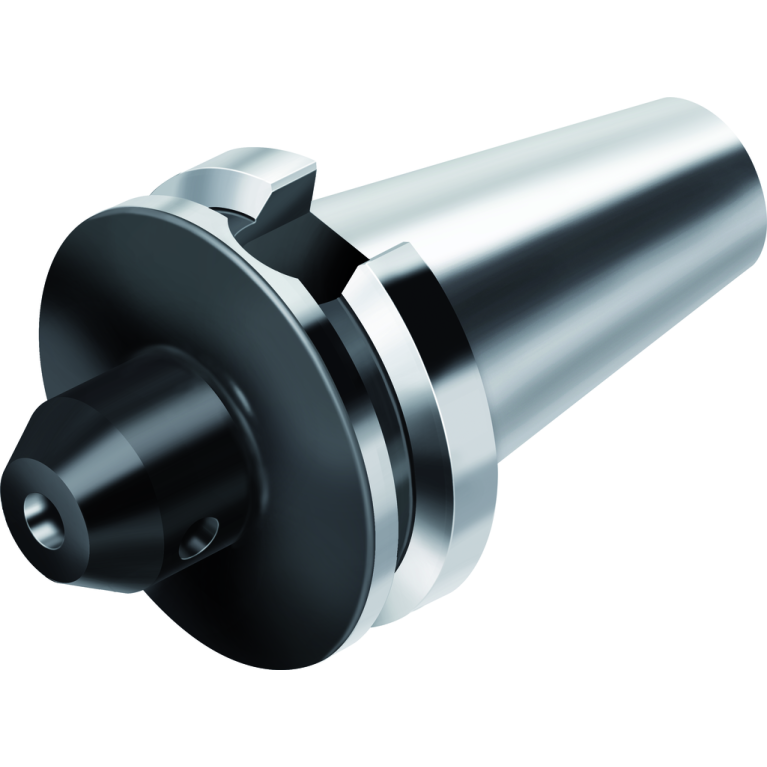

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK170.BT40.050.06

AK170.BT40.050.06

Артикул: 6258421

В наличии

В корзину

Описание

Характеристики

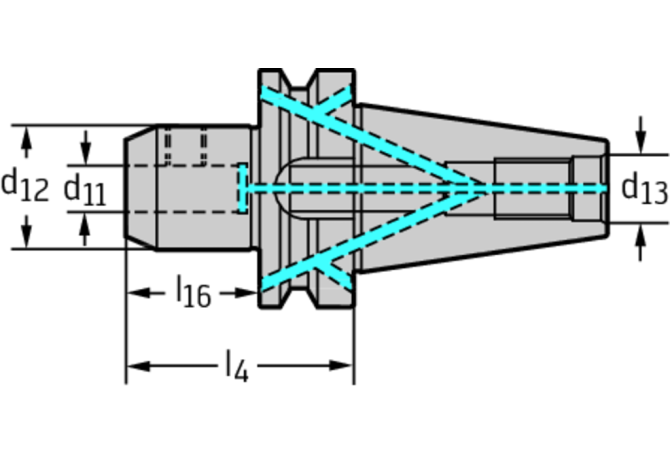

BD Body diameter

25 mm

BD Body diameter 2

63 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0060

DCONWS Diameter

6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

63 mm

DIN

SKG04005195

FamilyProducts

MAS-BT JIS B 6339 Weldon adaptor AK170.BT

ID Technical product number

6258421

Interface codes

J6 / J61

ISO

SKG51C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

23 mm

LB Length 2

50 mm

LF Functional length

50 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0060

LOC-01 DCONWS Diameter

6 mm

LOC-01 ISO

ZYL10F6000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00601015

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

1 Metric with coolant

LOC-02 CZCWS Size code

0060

LOC-02 DCONWS Diameter

6 mm

LOC-02 ISO

ZYL10R2362****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL00601815

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

6 mm

LOC-03 ISO

SKG51C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04005195

LPR Protruding length

50 mm

Name Identifying order number

AK170.BT40.050.06

OAL Overall length

118.4 mm

RPMX Rotational speed maximum

12000 1/min

STDLET Standard letter to the standard number

STDNO Standard

MAS403-BT

THSZMS Connection thread nominal size machine side

M16

WT Weight of item

1.078 kg
