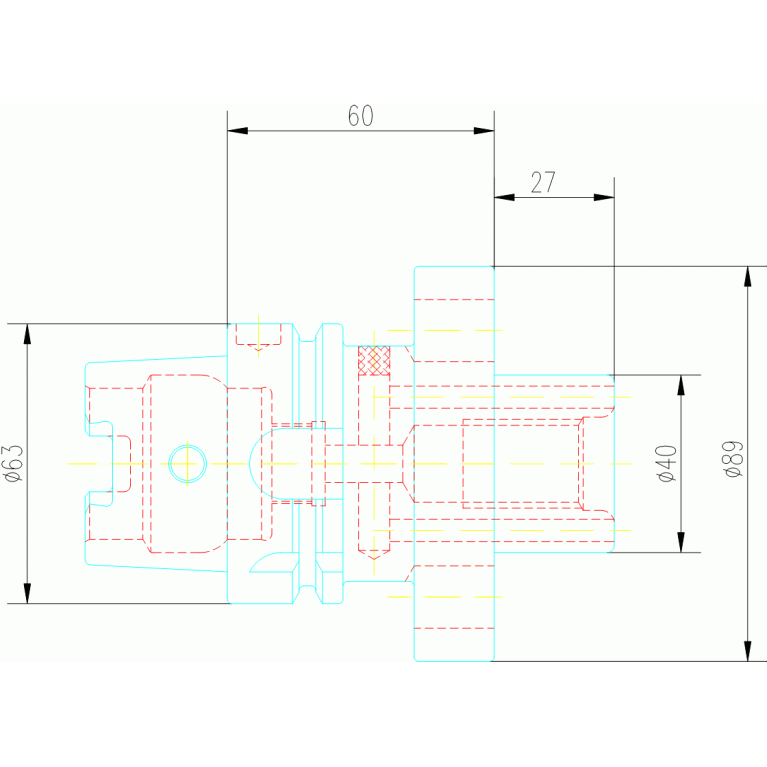

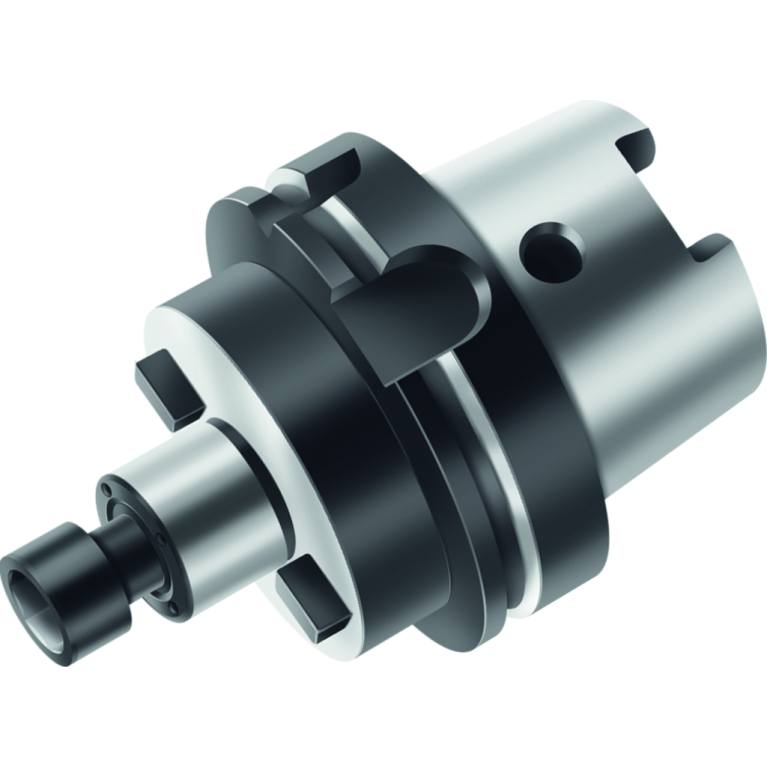

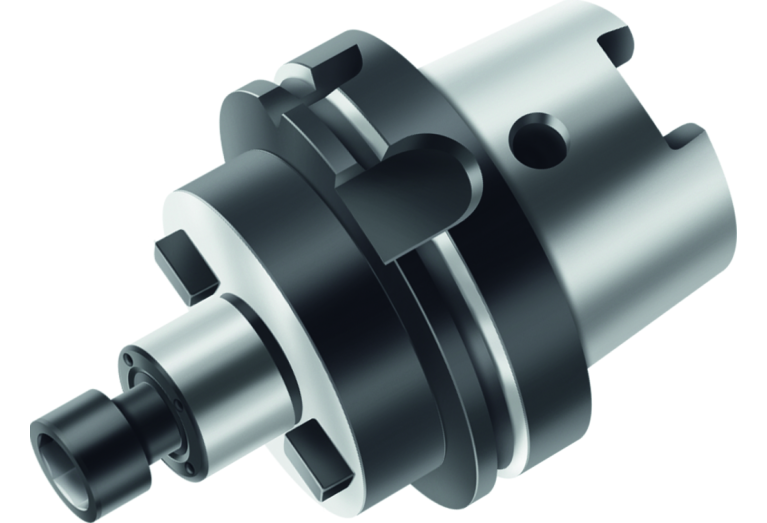

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric AK155.7.063.060.40.HSK

AK155.7.063.060.40.HSK

AK155.7.063.060.40.HSK AK155.7.063.060.40.HSK AK155.7.063.060.40.HSK AK155.7.063.060.40.HSK

AK155.7.063.060.40.HSK

Walter
Артикул: 5007104
В наличии
В корзину
Описание
Характеристики
BD Body diameter
89 mm
CCFWS Form
12
CCSWS Style
0
CCTWS Type
FDA
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0400
DCONWS Diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
63 mm
DIN
HSK06300195
FamilyProducts

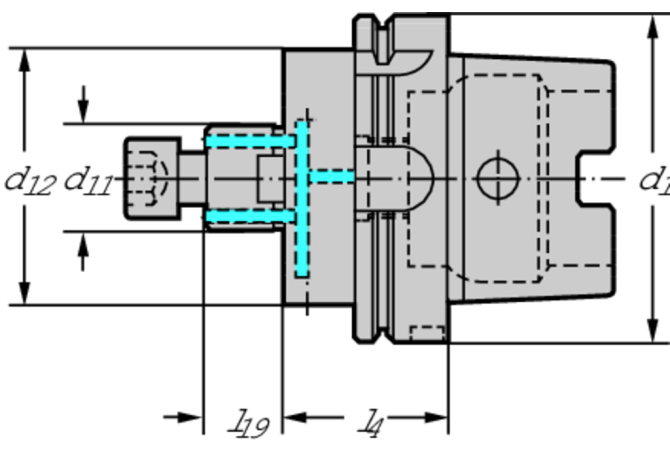

DIN 69893-1 A shell mill arbor AK155...HSK
ID Technical product number
5007104
Interface codes
J6 / J61
ISO
HSK01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
34 mm
LF Functional length
60 mm
LOC-01 CCFWS Form
12
LOC-01 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Type
FDA Milling arbor mounting
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0400
LOC-01 DCONWS Diameter
40 mm
LOC-01 ISO
FDA12G4000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA04001210
LOC-02 CCFWS Form
12
LOC-02 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-02 CCTWS Type
FDA Milling arbor mounting
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0400
LOC-02 DCONWS Diameter
40 mm
LOC-02 ISO
FDA22G4000****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
FDA04002210
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
HSK Hollow taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
HSK01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR Protruding length
87 mm
LS Shank length
32 mm
Name Identifying order number
AK155.7.063.060.40.HSK
OAL Overall length
119 mm
RPMX Rotational speed maximum
30000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO12164-1
WT Weight of item
2.138 kg
