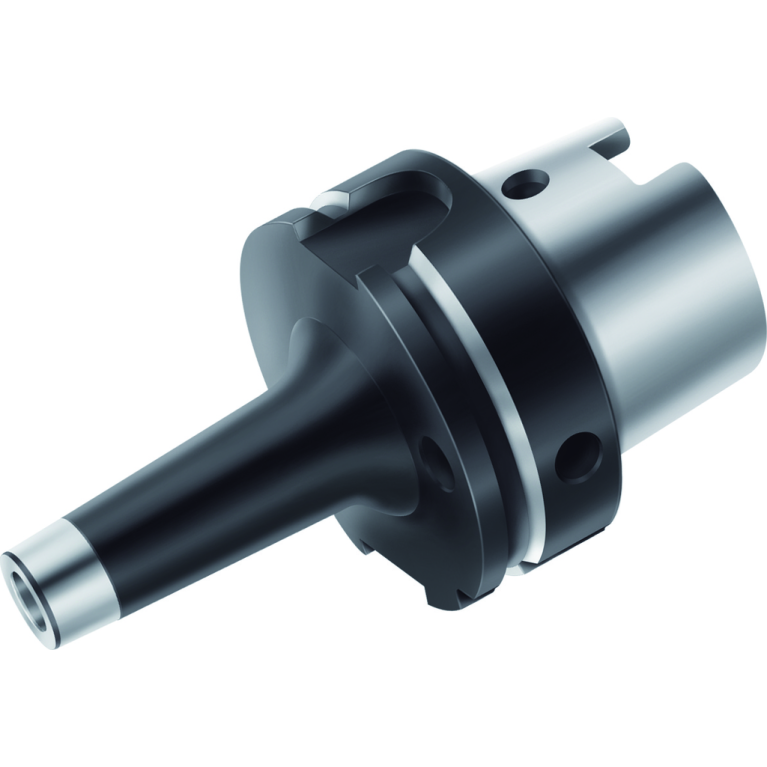

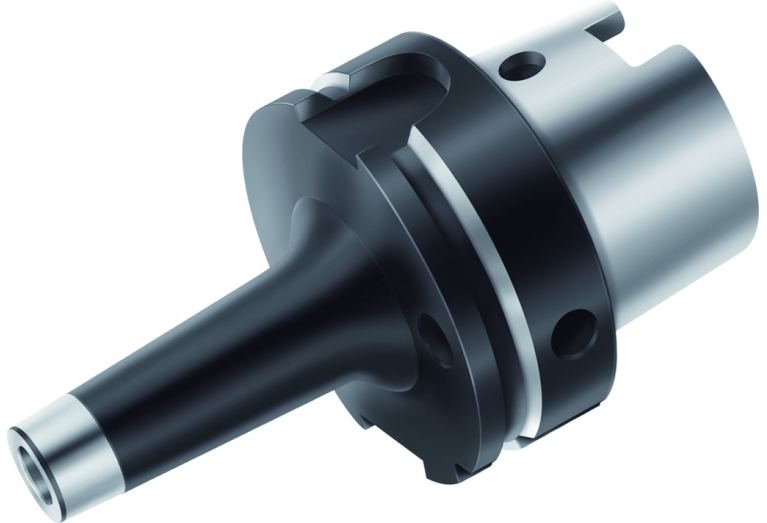

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A560.H63A.16.095

A560.H63A.16.095

A560.H63A.16.095 A560.H63A.16.095 A560.H63A.16.095

A560.H63A.16.095

Walter
Артикул: 5007215
В наличии
В корзину
Описание
Характеристики

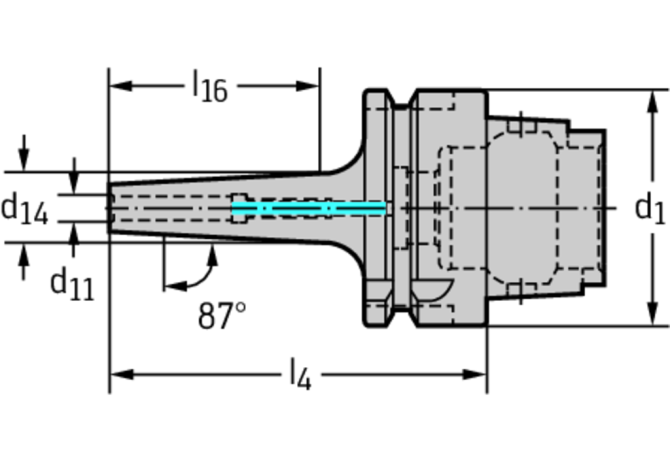

BD Body diameter
28 mm
BD Body diameter 2
35 mm
CCFWS Form
01
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0160
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
63 mm
DIN
HSK06300195
FamilyProducts
DIN 69893-1 A shrink-fit adaptor A560.H
ID Technical product number
5007215
Interface codes
J6 / J61
ISO
HSK01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
67 mm
LB Length 2
69 mm
LF Functional length
95 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01 ISO
ZYL01G1600****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01600115
LOC-02 CCFWS Form
01
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0160
LOC-02 DCONWS Diameter
16 mm
LOC-02 ISO
ZYL01R6299****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL01602015
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
HSK Hollow taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
HSK01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR Protruding length
95 mm
LS Shank length
32 mm
LSCX Clamping length maximum
49 mm
Name Identifying order number
A560.H63A.16.095
OAL Overall length
127 mm
RPMX Rotational speed maximum
30000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO12164-1
WT Weight of item
1.032 kg
