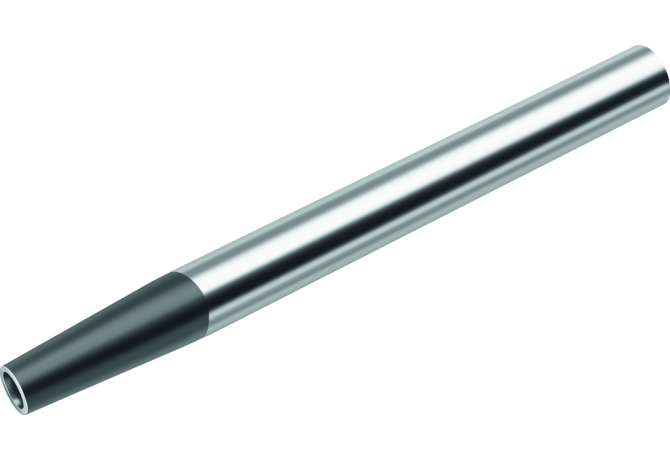

A510.Z16.T14.070-CS

A510.Z16.T14.070-CS A510.Z16.T14.070-CS A510.Z16.T14.070-CS

A510.Z16.T14.070-CS

Walter
Артикул: 5015997
В наличии
В корзину
Описание
Характеристики
BD Body diameter
14.5 mm
CCFWS Form
01
CCSWS Style
5
CCTWS Type
SAW
CCUWS Unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0140
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01600105
FamilyProducts
DIN 1835 A adaptor A510
ID Technical product number
5015997
Interface codes
J6 / J61
ISO
ZYL01G1600$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
38 mm
LF Functional length
70 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SAW Screw mounting WALTER
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
0140
LOC-01 ISO
SAW01C0140****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAW01400185
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 ISO
ZYL01G1600$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01600105
LPR Protruding length
70 mm
LS Shank length
48 mm
Name Identifying order number
A510.Z16.T14.070-CS

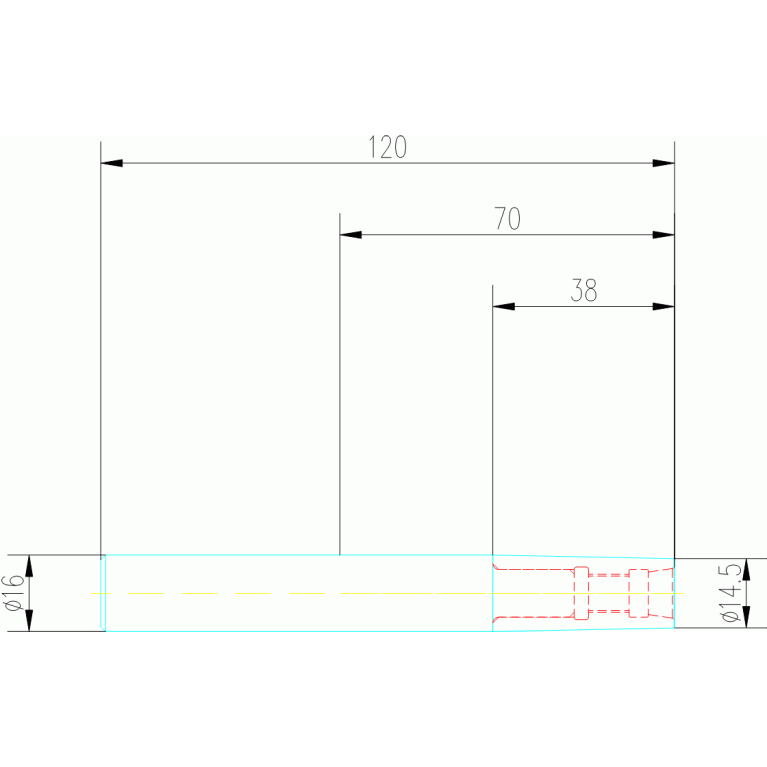

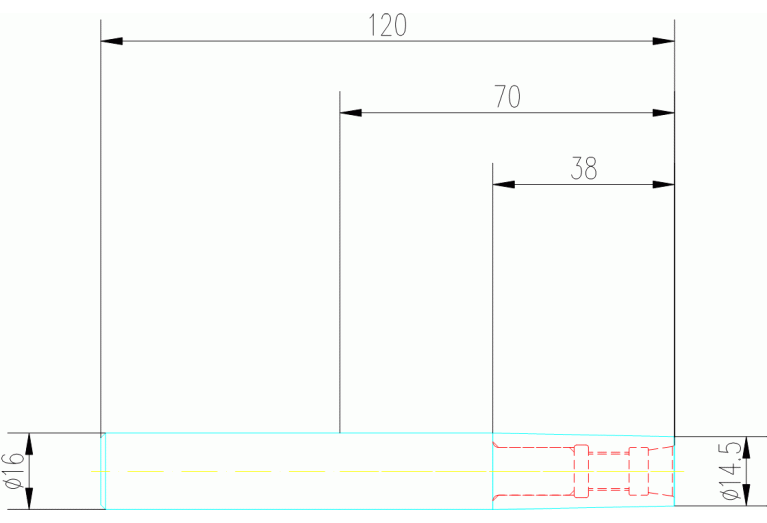

OAL Overall length
120 mm
RPMX Rotational speed maximum
50000 1/min
WT Weight of item
0.306 kg
