Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A40 24034

A40 24034

A40 24034 A40 24034

A40 24034

Komet Group
Артикул: 1497424
В наличии
В корзину
Описание
Характеристики

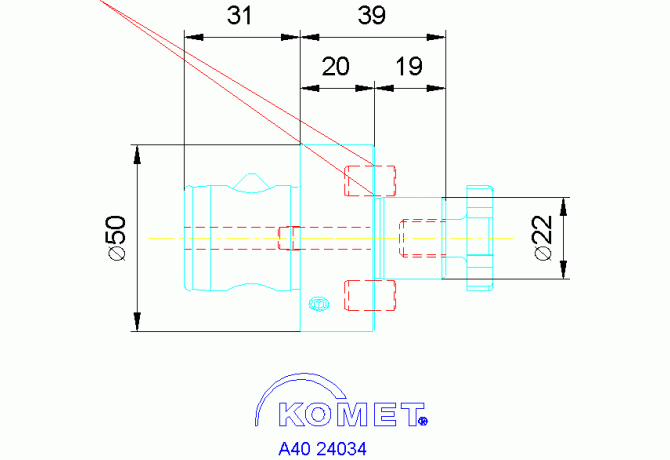

BD Body diameter
50 mm
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0220
DCONWS Diameter
22 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
ABS05000105
FamilyProducts
Fräseraufnahme Ø22
HAND Cutting direction
N - Neutral
ID Technical product number
1497424
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LF Functional length
20 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CZCWS Connection size code
0220
LOC-01 DCONWS Diameter
22 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02200200
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ABS KOMET ABS connection
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ABS05000105
LPR Protruding length
20 mm
LSCN Clamping length minimum
31 mm
LSCX Clamping length maximum
31 mm
Name Identifying order number
A40 24034
OAL Overall length
70 mm
Rotation Rotation indicator
1 - rotating tool
STDNO Standard
DIN 6385
WT Weight of item
0.4 kg
