Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A40 24022

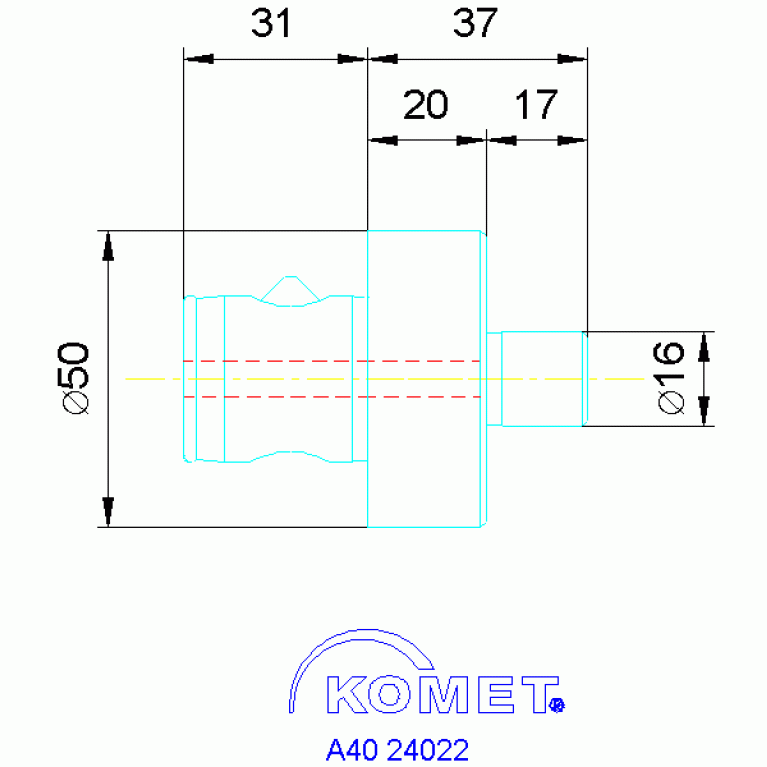

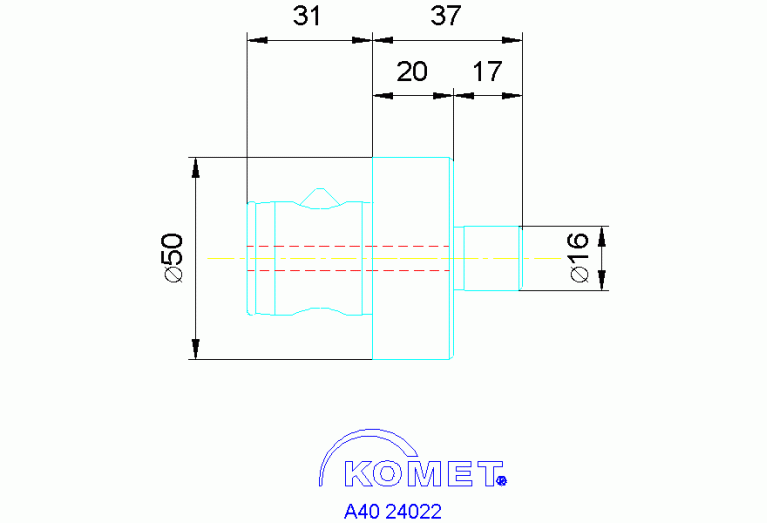

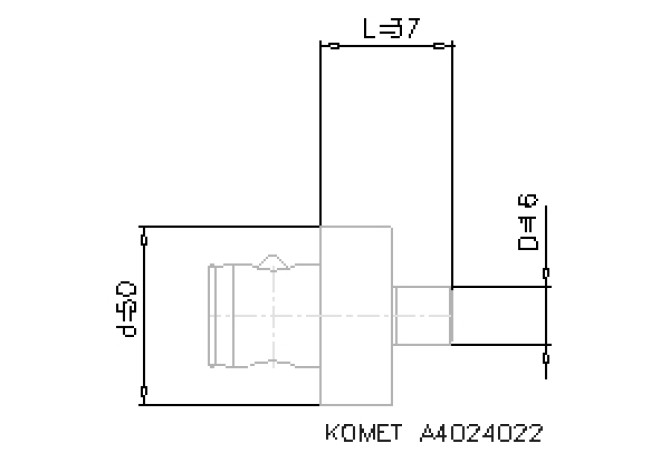

A40 24022

A40 24022 A40 24022 A40 24022

A40 24022

Komet Group
Артикул: 1481681
В наличии
В корзину
Описание
Характеристики
BD Body diameter
50 mm
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
ABS05000115
FamilyProducts
Fräseraufnahme Ø16
HAND Cutting direction
N - Neutral
ID Technical product number
1481681
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA01600210
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ABS KOMET ABS connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ABS05000115
LPR Protruding length
20 mm
LSCN Clamping length minimum
27 mm
LSCX Clamping length maximum
27 mm
Name Identifying order number
A40 24022
OAL Overall length
68 mm
Rotation Rotation indicator
1 - rotating tool
STDNO Standard
DIN 6385
WT Weight of item
0.5 kg
