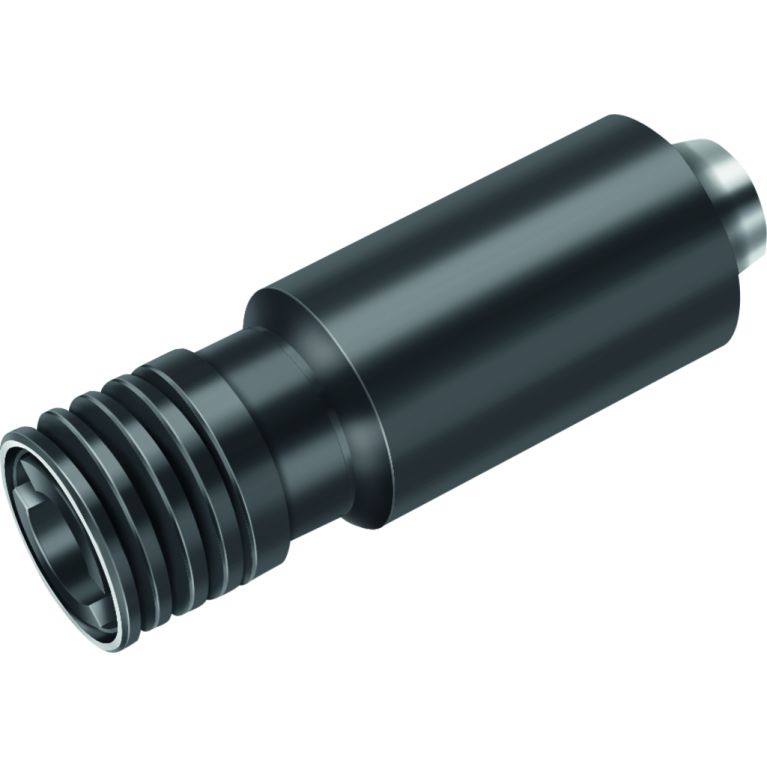

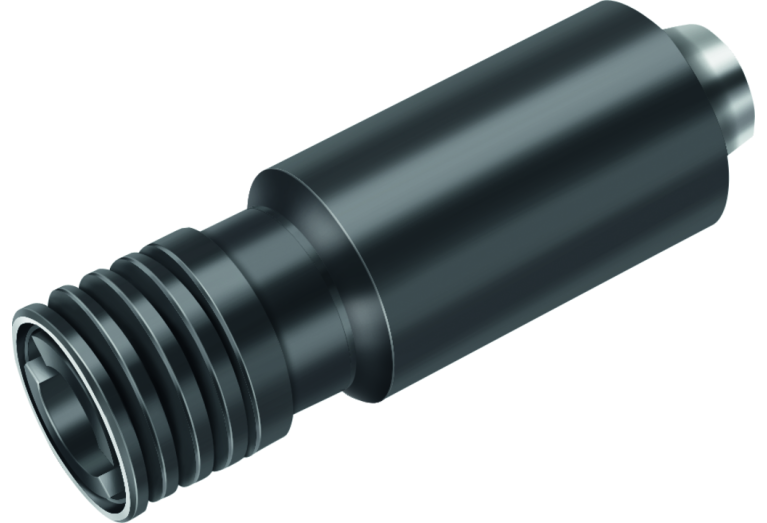

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A320M.0.63.196.60

A320M.0.63.196.60

A320M.0.63.196.60 A320M.0.63.196.60 A320M.0.63.196.60

A320M.0.63.196.60

Walter
Артикул: 5007592
В наличии
В корзину
Описание
Характеристики
BD Body diameter
96 mm
CCFWS Form
00
CCSWS Style
5
CCTWS Type
SWE
CCUWS Unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0600
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
63 mm
DIN
NCT06300185
DLN Diameter lock nut
96 mm
FamilyProducts
Tap quick-change chuck A320M
ID Technical product number
5007592
Interface codes
J6 / J61
ISO
NCT01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
196 mm
LF Functional length
196 mm
LOC-01 CCFWS Form
00
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SWE Quick change adapter EMUGE
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
0600
LOC-01 ISO
SWE00C0600****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SWE06000085
LOC-02 CCFWS Form
00
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
SWE Quick change adapter EMUGE
LOC-02 CCUWS Unit base
8 non-dimensional size
LOC-02 CZCWS Size code
0600
LOC-02 ISO
SWE01C0600****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SWE06000185
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
NCT Novex-NC-Tools WALTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
NCT01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
NCT06300185
LPR Protruding length
196 mm
LS Shank length
16 mm
Name Identifying order number
A320M.0.63.196.60
OAL Overall length
212 mm
RPMX Rotational speed maximum
30000 1/min
WT Weight of item
6.359 kg
