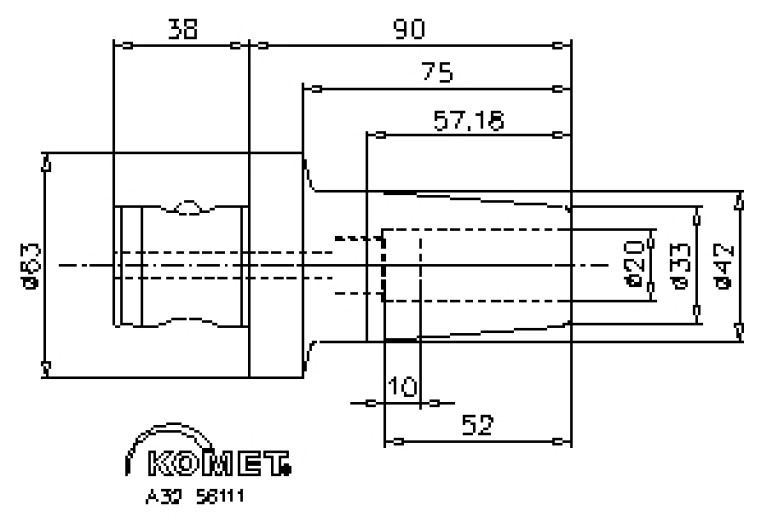

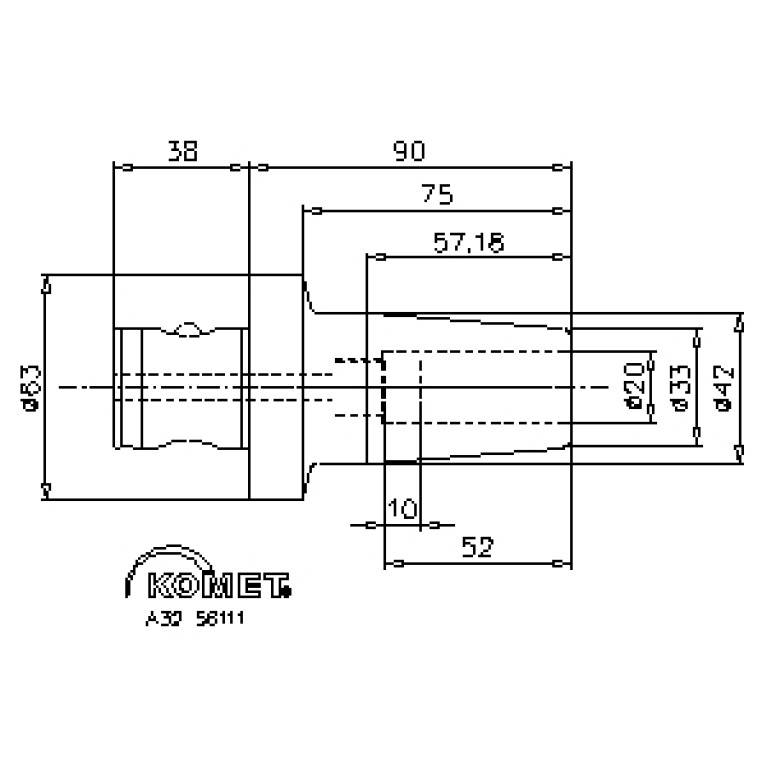

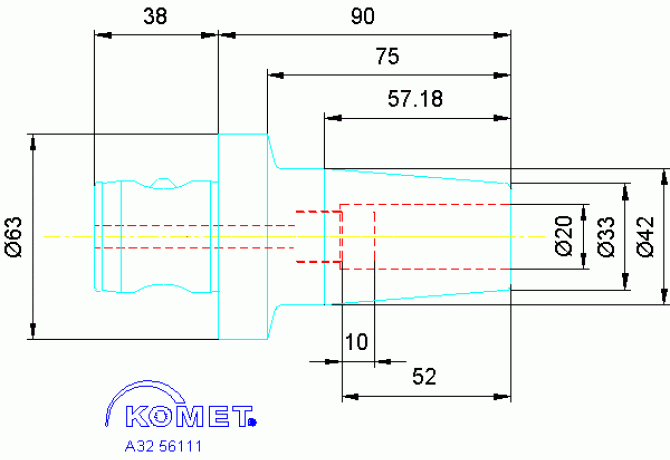

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A32 56111

A32 56111

A32 56111 A32 56111 A32 56111

A32 56111

Komet Group
Артикул: 1496755
В наличии
В корзину
Описание
Характеристики
A1 CHW Chamfer width at length 1
57.1779 mm
BD Body diameter
33 mm
BD Body diameter 2
42 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCINTF Interference cutting diameter
33 mm
DCONWS Diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
63 mm
DIN
ABS06300115
FamilyProducts
Schrumpffutter Ø20
HAND Cutting direction
N - Neutral
ID Technical product number
1496755
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02000115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ABS KOMET ABS connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ABS06300115
LPR Protruding length
90 mm
Name Identifying order number
A32 56111
OAL Overall length
128 mm
Rotation Rotation indicator
1 - rotating tool
WT Weight of item
1.21 kg
