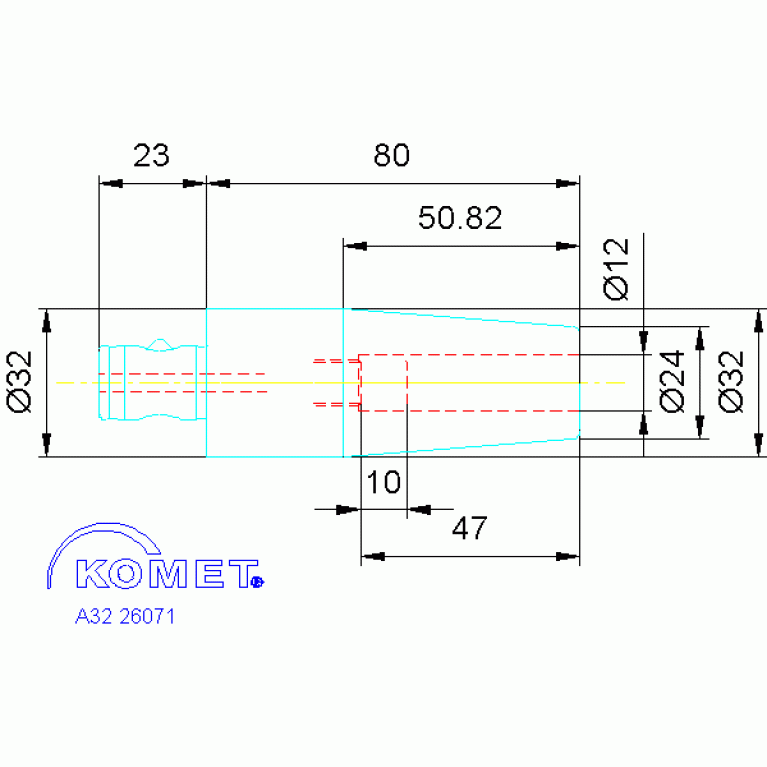

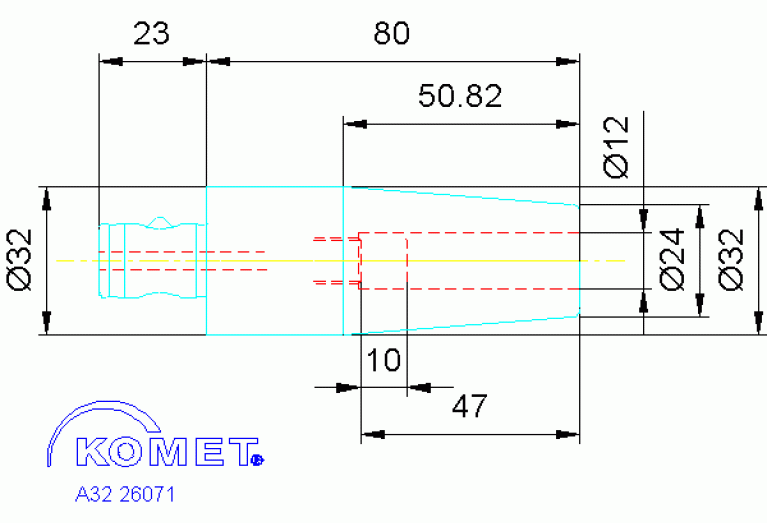

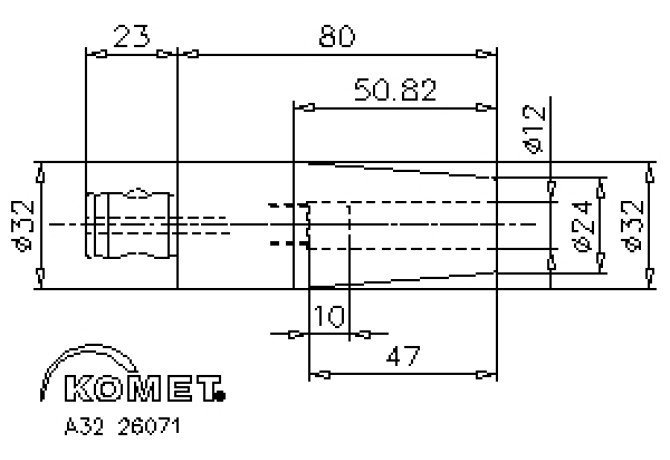

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A32 26071

A32 26071

A32 26071

Komet Group

Артикул: 1496739

В наличии

В корзину

Описание

Характеристики

A1 CHW Chamfer width at length 1

50.8248 mm

BD Body diameter

24 mm

BD Body diameter 2

32 mm

CCFWS Connection code form

01

CCSWS Connection code style

5

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0120

DCINTF Interference cutting diameter

24 mm

DCONWS Diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DF Flange diameter

32 mm

DIN

ABS03200115

FamilyProducts

Schrumpffutter Ø12

HAND Cutting direction

N - Neutral

ID Technical product number

1496739

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

01

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0120

LOC-01 DCONWS Diameter

12 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01200115

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ABS KOMET ABS connection

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ABS03200115

LPR Protruding length

80 mm

LSCN Clamping length minimum

37 mm

LSCX Clamping length maximum

47 mm

Name Identifying order number

A32 26071

OAL Overall length

103 mm

Rotation Rotation indicator

1 - rotating tool

WT Weight of item

0.4 kg
