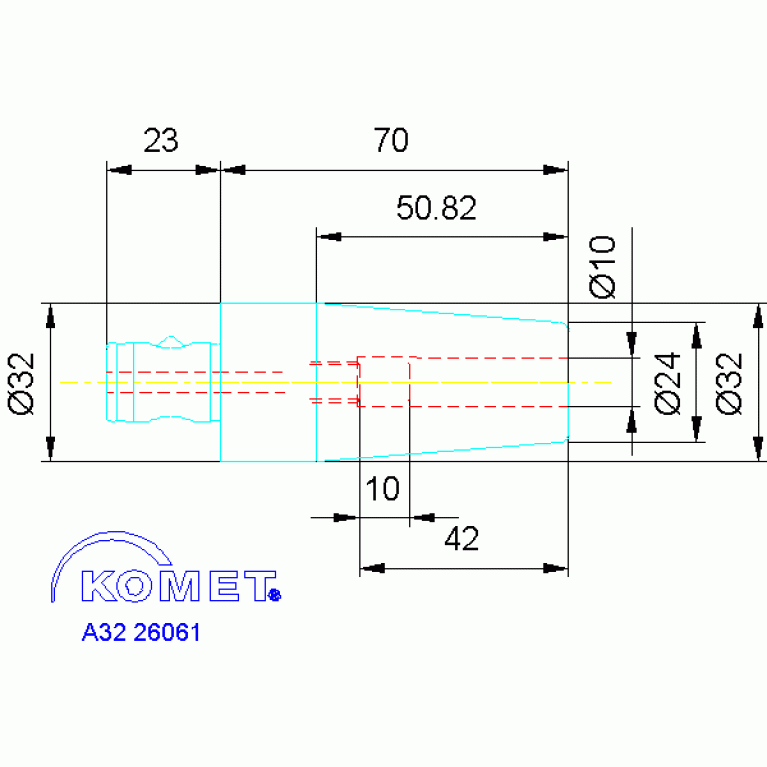

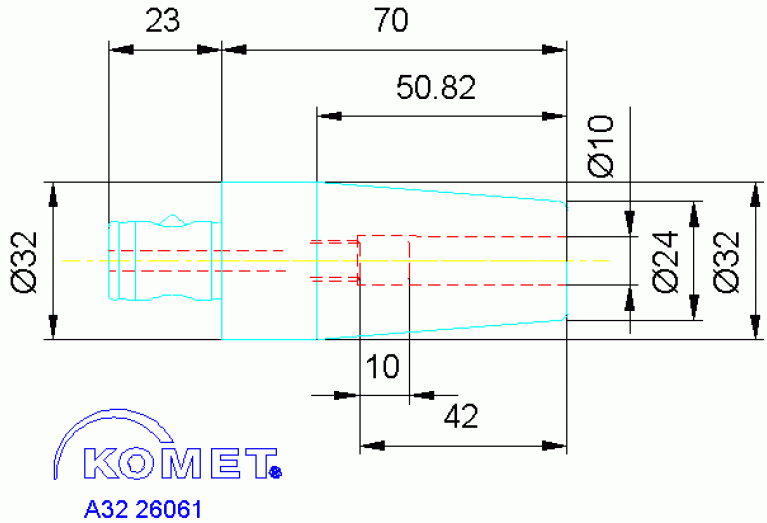

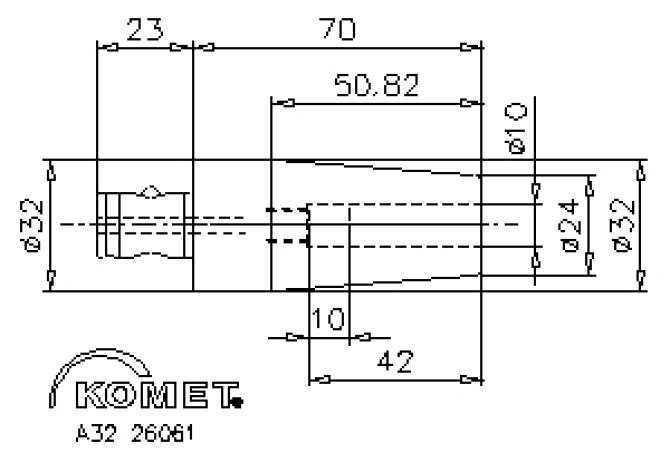

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A32 26061

A32 26061

A32 26061 A32 26061 A32 26061

A32 26061

Komet Group
Артикул: 1496738
В наличии
В корзину
Описание
Характеристики
A1 CHW Chamfer width at length 1
50.8248 mm
BD Body diameter
24 mm
BD Body diameter 2
32 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0100
DCINTF Interference cutting diameter
24 mm
DCONWS Diameter
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
32 mm
DIN
ABS03200115
FamilyProducts
Schrumpffutter Ø10
HAND Cutting direction
N - Neutral
ID Technical product number
1496738
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0100
LOC-01 DCONWS Diameter
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01000115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ABS KOMET ABS connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ABS03200115
LPR Protruding length
70 mm
LSCN Clamping length minimum
32 mm
LSCX Clamping length maximum
42 mm
Name Identifying order number
A32 26061
OAL Overall length
93 mm
Rotation Rotation indicator
1 - rotating tool
WT Weight of item
0.37 kg
