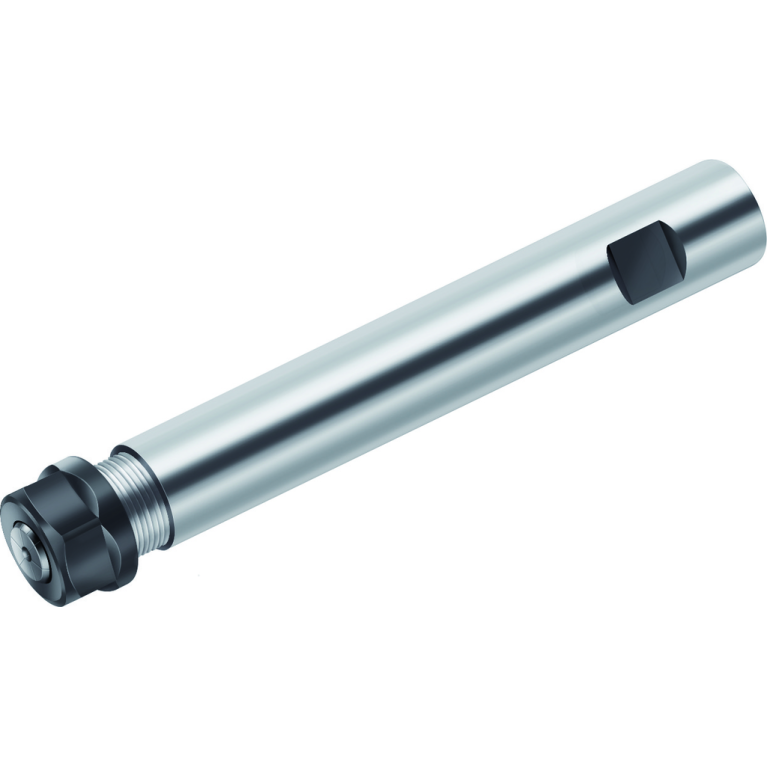

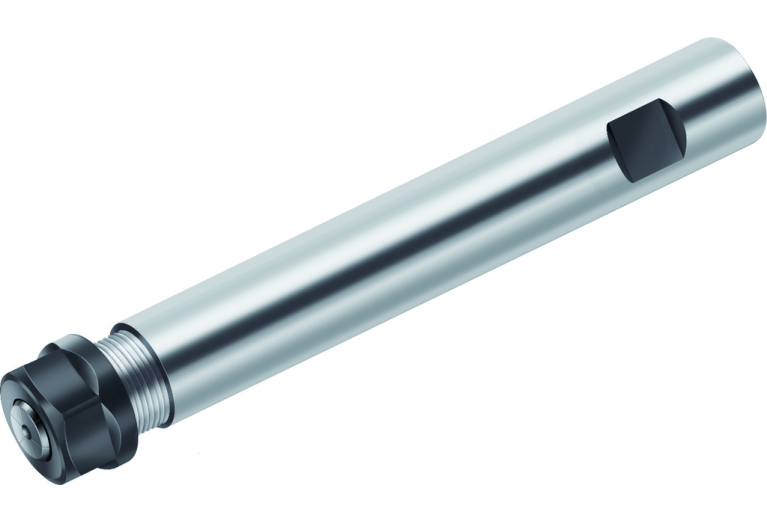

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A305.0.25.140.10

A305.0.25.140.10

Артикул: 5007506

В наличии

В корзину

Описание

Характеристики

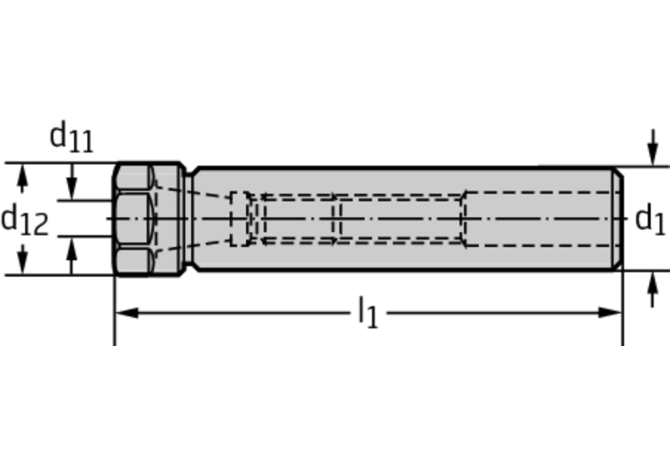

BD Body diameter

28 mm

CCFWS Form

CCSWS Style

CCTWS Type

SZD

CCUWS Unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Size code

0160

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02501005

DLN Diameter lock nut

28 mm

FamilyProducts

DIN 1835 B ER collet chuck A305

ID Technical product number

5007506

Interface codes

J6 / J61

ISO

ZYL10G2500h$06

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

84 mm

LF Functional length

98 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Unit base

8 non-dimensional size

LOC-01 CZCWS Size code

0160

LOC-01 ISO

SZD02C0160****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD01600285

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL10G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501005

LPR Protruding length

84 mm

LS Shank length

56 mm

LSCX Clamping length maximum

56 mm

Name Identifying order number

A305.0.25.140.10

OAL Overall length

140 mm

RPMX Rotational speed maximum

50000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO3338-2

TCDCON ISO-tolerance class connection bore diameter

TCDCONMS ISO-tolerance class shank diameter

WT Weight of item

0.417 kg
