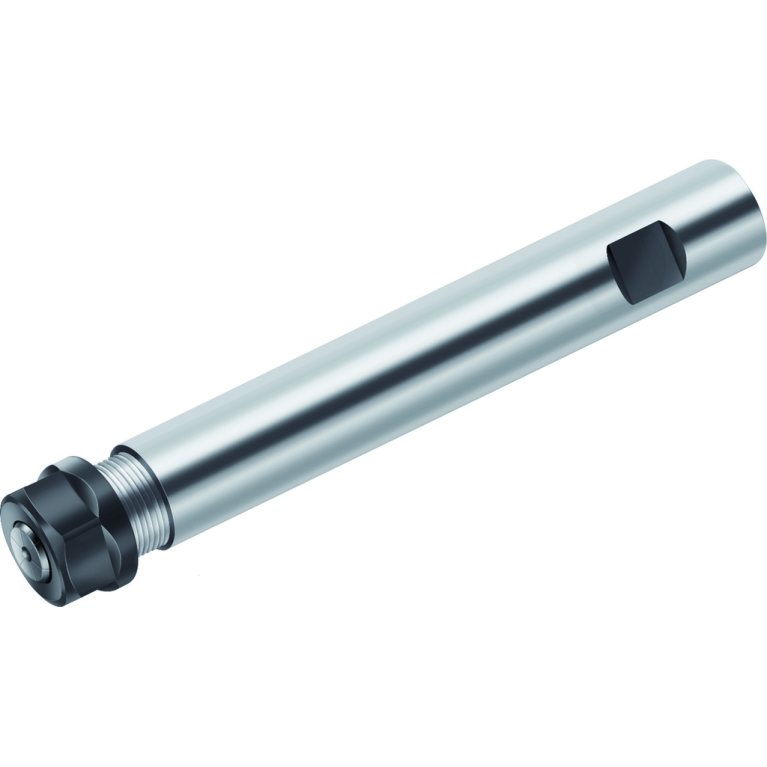

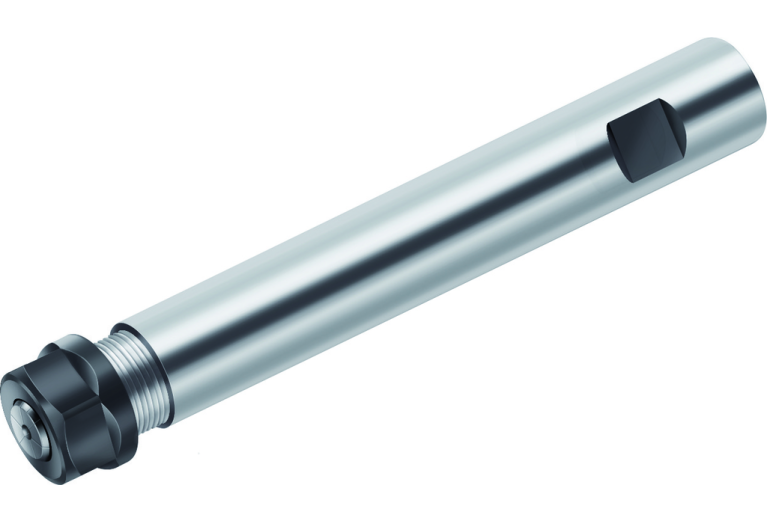

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A305.0.16.120.06

A305.0.16.120.06

Артикул: 5007504

В наличии

В корзину

Описание

Характеристики

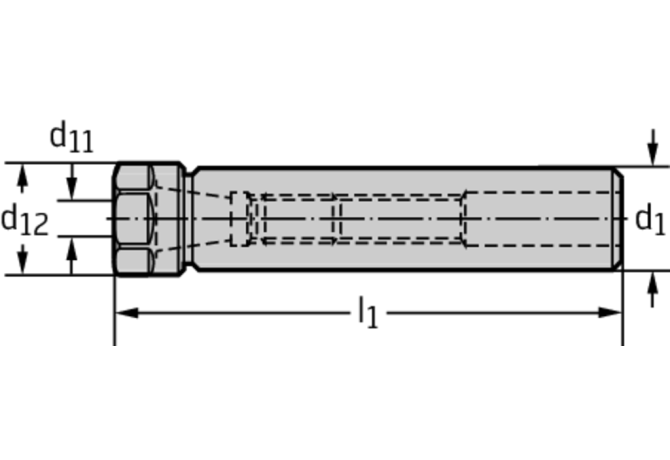

BD Body diameter

19 mm

CCFWS Form

CCSWS Style

CCTWS Type

SZD

CCUWS Unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Size code

0110

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01601005

DLN Diameter lock nut

19 mm

FamilyProducts

DIN 1835 B ER collet chuck A305

ID Technical product number

5007504

Interface codes

J6 / J61

ISO

ZYL10G1600h$06

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

72 mm

LF Functional length

48 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Unit base

8 non-dimensional size

LOC-01 CZCWS Size code

0110

LOC-01 ISO

SZD02C0110****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD01100285

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL10G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601005

LPR Protruding length

72 mm

LS Shank length

48 mm

Name Identifying order number

A305.0.16.120.06

OAL Overall length

120 mm

RPMX Rotational speed maximum

50000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO3338-2

TCDCON ISO-tolerance class connection bore diameter

TCDCONMS ISO-tolerance class shank diameter

WT Weight of item

0.153 kg
