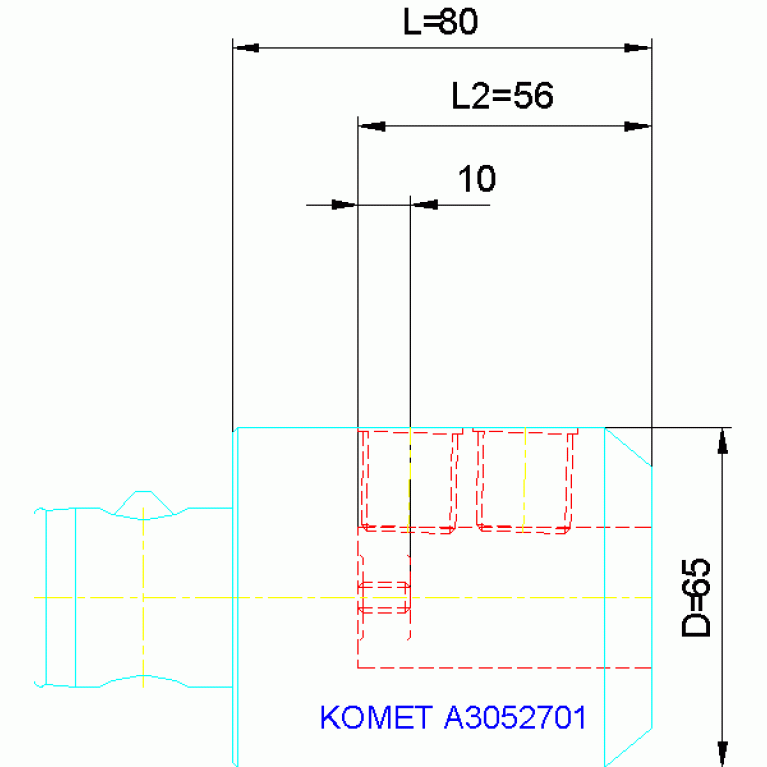

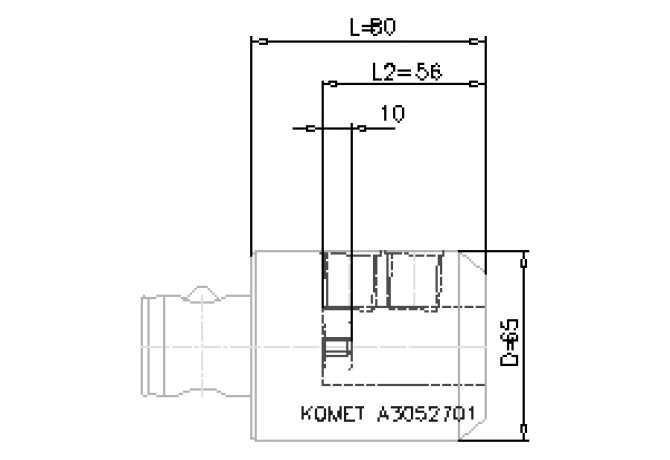

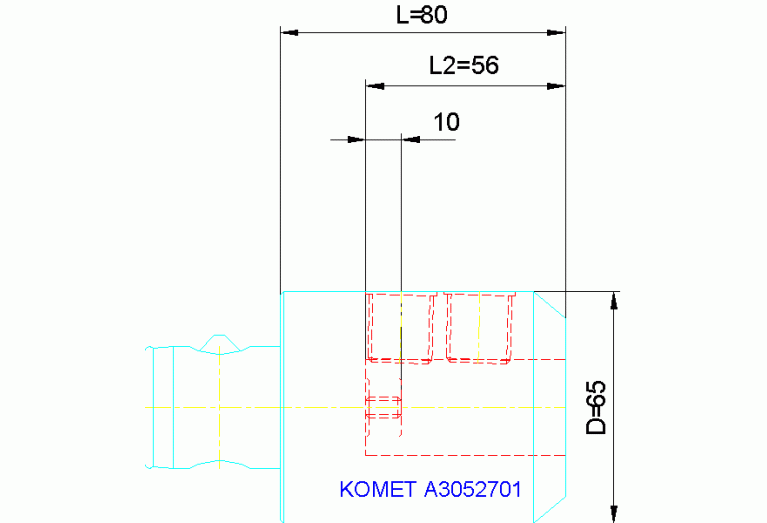

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A30 52701

A30 52701

A30 52701 A30 52701 A30 52701

A30 52701

Komet Group
Артикул: 1475107
В наличии
В корзину
Описание
Характеристики
BD Body diameter
65 mm
CCFWS Connection code form
13
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0270
DCINTF Interference cutting diameter
53 mm
DCONWS Diameter
27 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
ABS06300115
FamilyProducts
Spannfutter Whistle Notch Ø27
HAND Cutting direction
N - Neutral
ID Technical product number
1475107
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
80 mm
LOC-01 CCFWS Connection code form
13
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0270
LOC-01 DCONWS Diameter
27 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02701315
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ABS KOMET ABS connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ABS06300115
LPR Protruding length
80 mm
LSCN Clamping length minimum
46 mm
LSCX Clamping length maximum
56 mm
Name Identifying order number
A30 52701
OAL Overall length
118 mm
Rotation Rotation indicator
1 - rotating tool
STDNO Standard
DIN 1835 E
TA Taper angle
30 Degree
WT Weight of item
2.15 kg
