Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A201M.0.50.092.13

A201M.0.50.092.13

A201M.0.50.092.13 A201M.0.50.092.13 A201M.0.50.092.13

A201M.0.50.092.13

Walter
Артикул: 5017272
В наличии
В корзину
Описание
Характеристики

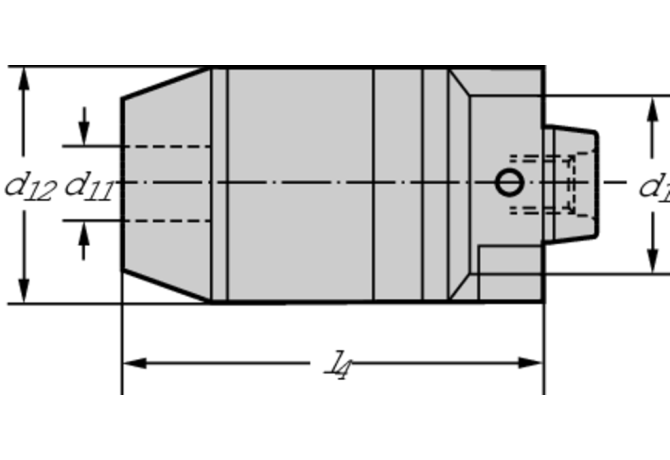

BD Body diameter
36.5 mm
BD Body diameter 2
50 mm
CCFWS Form
01
CCSWS Style
6
CCTWS Type
ZYL
CCUWS Unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0010
DCONWS Diameter
1 mm
DCONXWS Connection diameter max
13 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
50 mm
DIN
NCT05000185
FamilyProducts

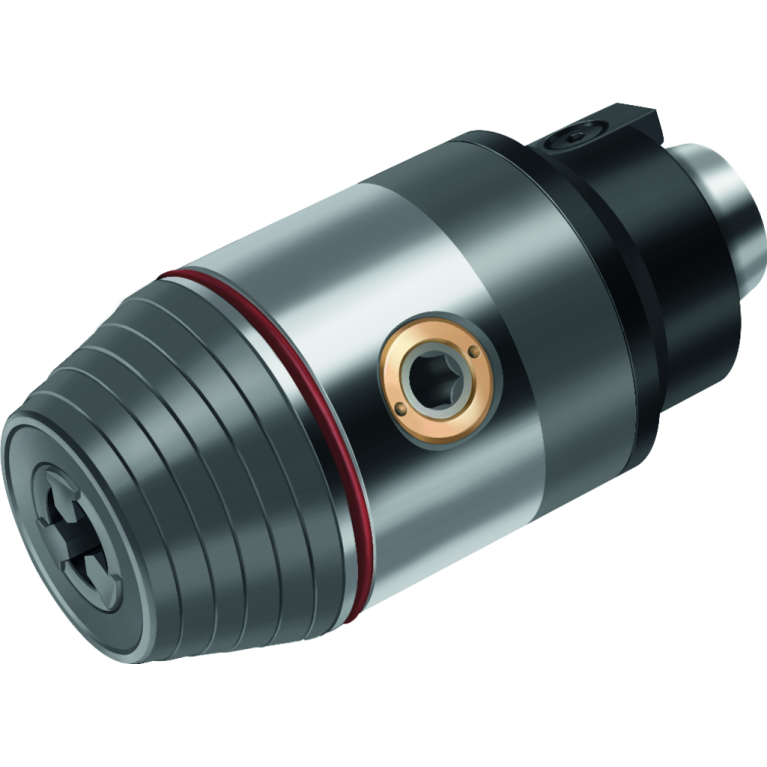

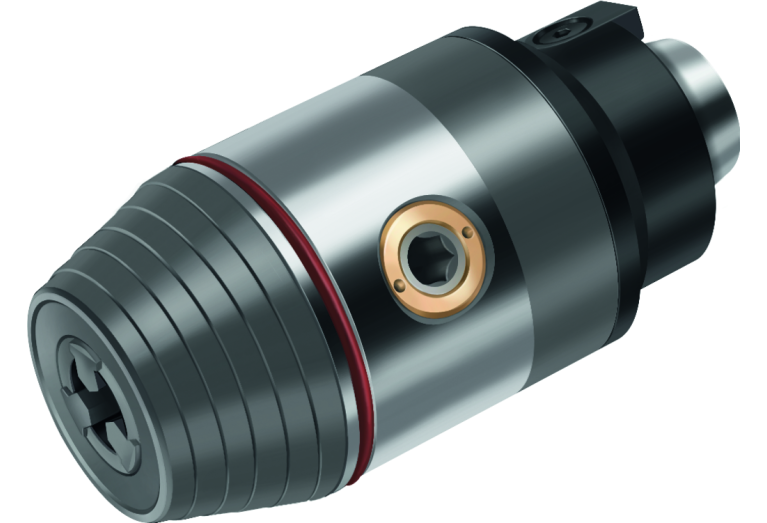

Small drill chuck A201M
ID Technical product number
5017272
Interface codes
J6 / J61
ISO
NCT01C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
25 mm
LB Length 2
92 mm
LF Functional length
92 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
6 Adjustable shaft in machine direction or adjustable hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
0 Metric
LOC-01 CZCWS Size code
0010
LOC-01 DCONWS Diameter
1 mm
LOC-01 DCONXWS Connection diameter max
13 mm
LOC-01 ISO
ZYL01F1000****ZYL01G1300****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00100106ZYL01300106
LOC-02 CCFWS Form
01
LOC-02 CCSWS Style
6 Adjustable shaft in machine direction or adjustable hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
0 Metric
LOC-02 CZCWS Size code
0010
LOC-02 DCONWS Diameter
1 mm
LOC-02 ISO
ZYL01R0393****ZYL01R5118****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL00102005ZYL01302005
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
NCT Novex-NC-Tools WALTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
NCT01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
NCT05000185
LPR Protruding length
92 mm
LS Shank length
12 mm
Name Identifying order number
A201M.0.50.092.13
OAL Overall length
104 mm
RPMX Rotational speed maximum
30000 1/min
WT Weight of item
1.177 kg
