Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A175.0.20.130.05

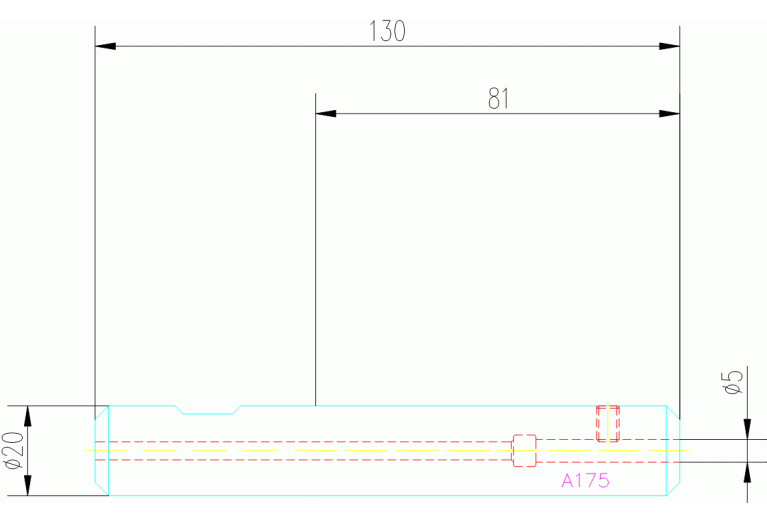

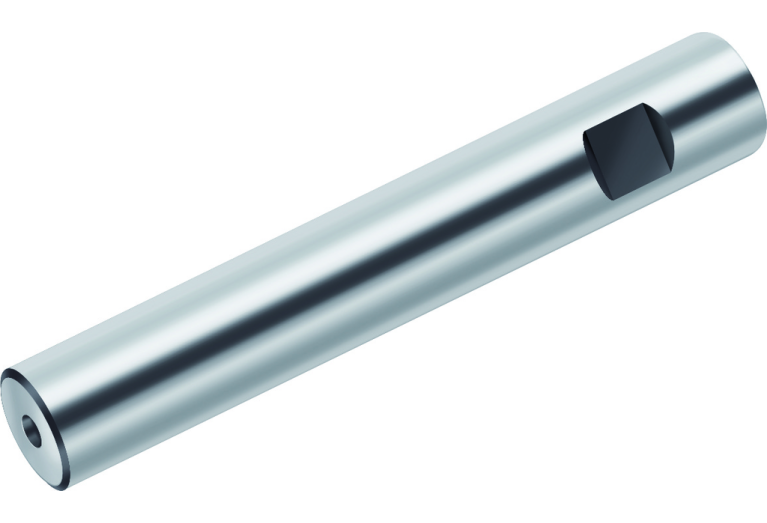

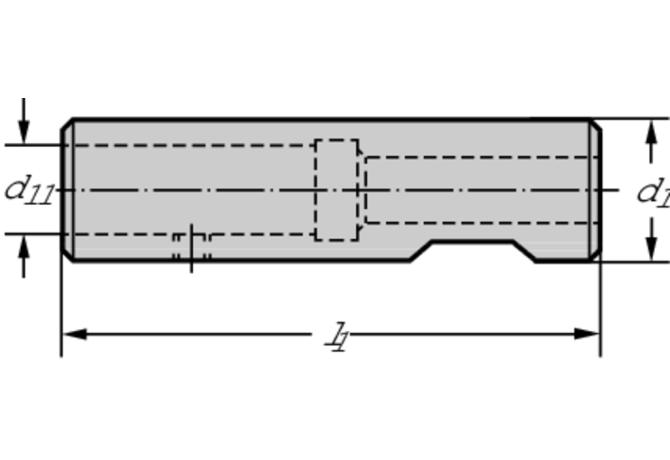

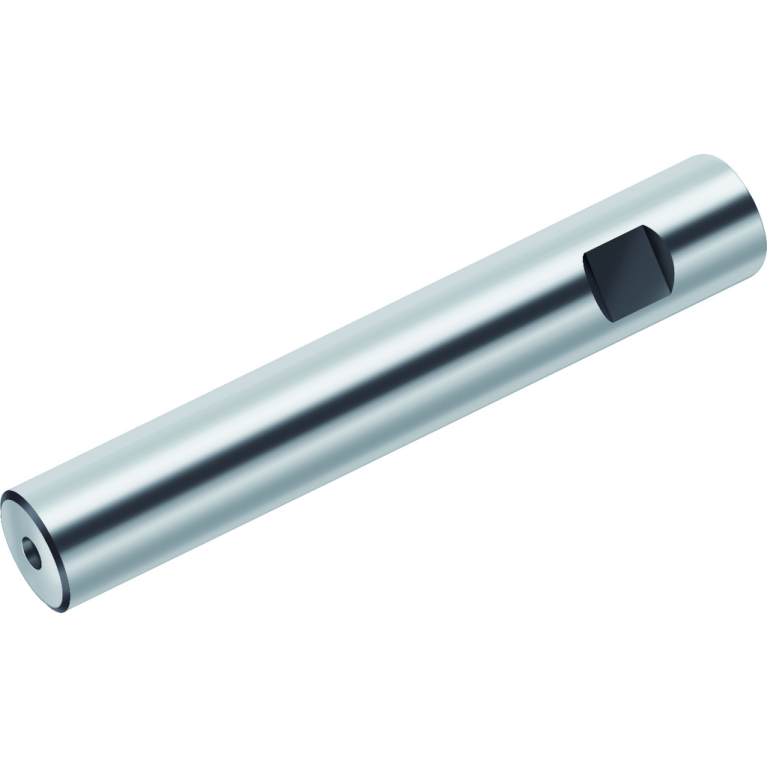

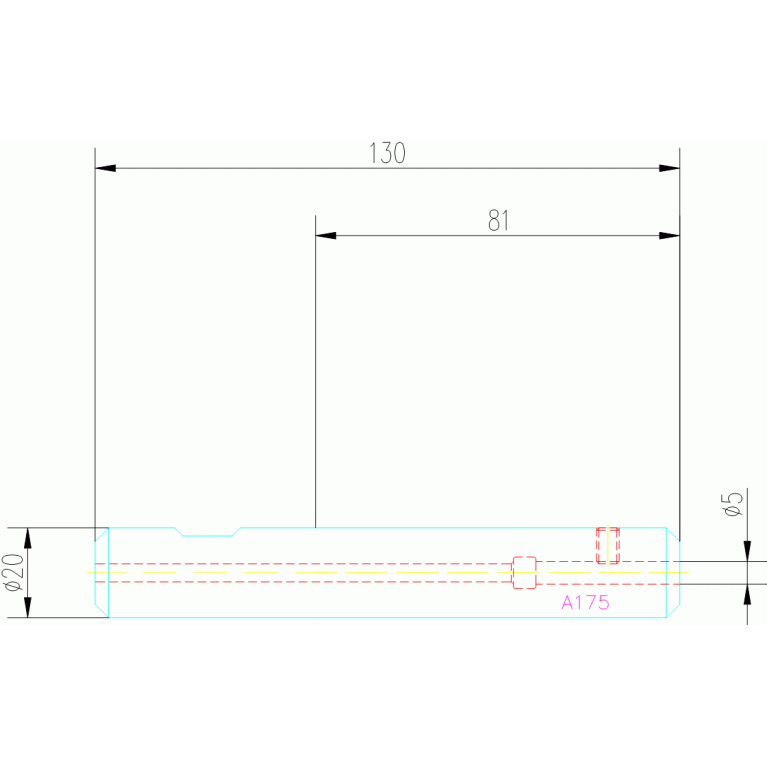

A175.0.20.130.05

A175.0.20.130.05 A175.0.20.130.05 A175.0.20.130.05 A175.0.20.130.05

A175.0.20.130.05

Walter
Артикул: 5007061
В наличии
В корзину
Описание
Характеристики
BD Body diameter
20 mm
CCFWS Form
20
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0196
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02001005
FamilyProducts
DIN 1835 B milling cutter extension A175
ID Technical product number
5007061
Interface codes
J6 / J61
ISO
ZYL10G2000h$06
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
81 mm
LF Functional length
105 mm
LOC-01 CCFWS Form
20
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
2 Inch
LOC-01 CZCWS Size code
0196
LOC-01 ISO
ZYL20R1968****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01962025
LOC-02 CCFWS Form
20
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
2 Inch
LOC-02 CZCWS Size code
0196
LOC-02 ISO
ZYL01F5000****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL00500105
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL10G2000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001005
LPR Protruding length
80 mm
LS Shank length
50 mm
Name Identifying order number
A175.0.20.130.05
OAL Overall length
130 mm
RPMX Rotational speed maximum
50000 1/min
STDLET Standard letter to the standard number
WE
STDNO Standard
ISO3338-2
TCDCON ISO-tolerance class connection bore diameter
h6
TCDCONMS ISO-tolerance class shank diameter
h6
WT Weight of item
0.273 kg
