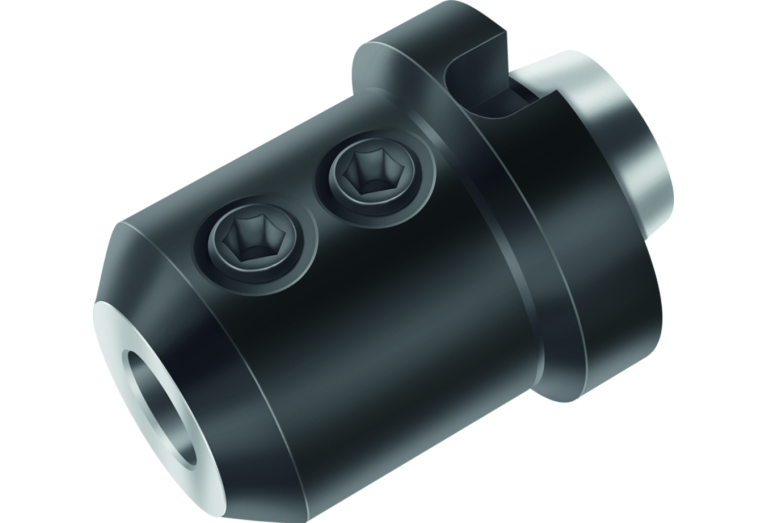

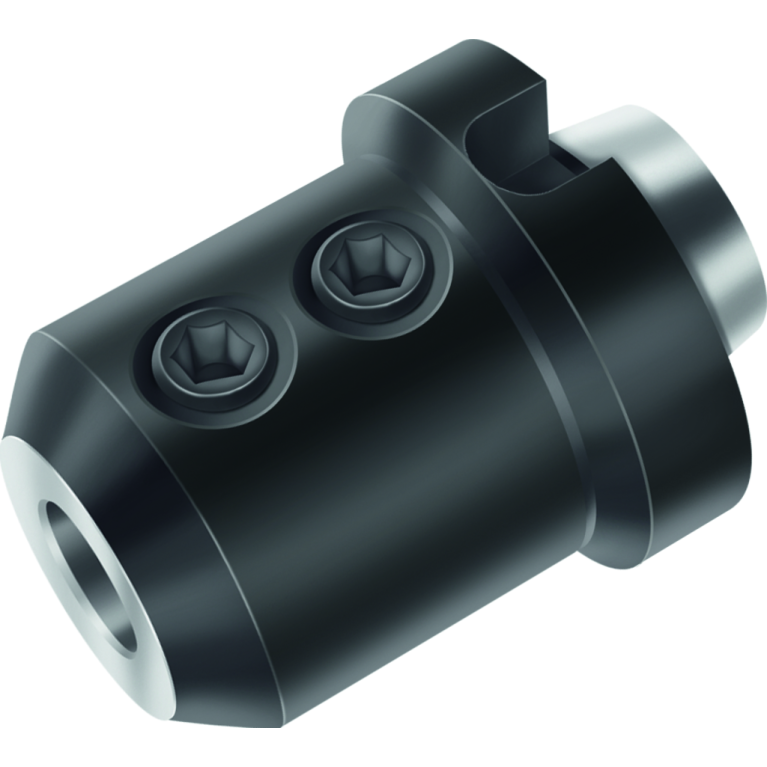

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A170M.0.80.085.32

A170M.0.80.085.32

A170M.0.80.085.32 A170M.0.80.085.32 A170M.0.80.085.32

A170M.0.80.085.32

Walter
Артикул: 5007384
В наличии
В корзину
Описание
Характеристики
BD Body diameter
72 mm
CCFWS Form
10
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0320
DCONWS Diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
80 mm
DIN
NCT08000195
FamilyProducts
Weldon shank adaptor A170M
ID Technical product number
5007384
Interface codes
J6 / J61
ISO
NCT01C0800$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
65 mm
LF Functional length
85 mm
LOC-01 CCFWS Form
10
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0320
LOC-01 DCONWS Diameter
32 mm
LOC-01 ISO
ZYL10G3200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL03201015
LOC-02 CCFWS Form
10
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0320
LOC-02 DCONWS Diameter
32 mm
LOC-02 ISO
ZYL10S1259****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL03201815
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
NCT Novex-NC-Tools WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0800
LOC-03 DCONMS Diameter
80 mm
LOC-03 ISO
NCT01C0800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
NCT08000195
LPR Protruding length
85 mm
LS Shank length
18 mm
Name Identifying order number
A170M.0.80.085.32
OAL Overall length
103 mm
RPMX Rotational speed maximum
30000 1/min
WT Weight of item
2.429 kg
