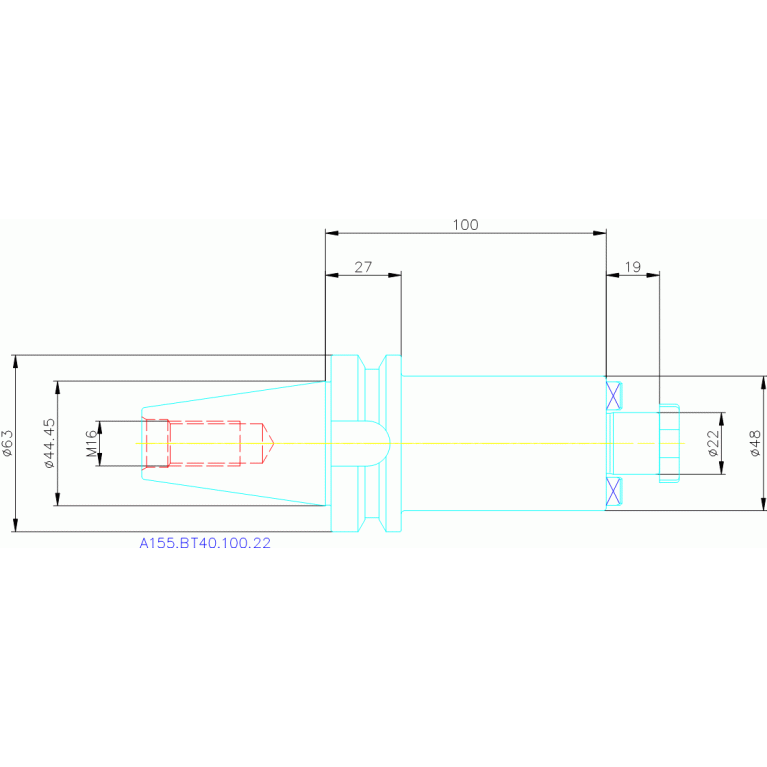

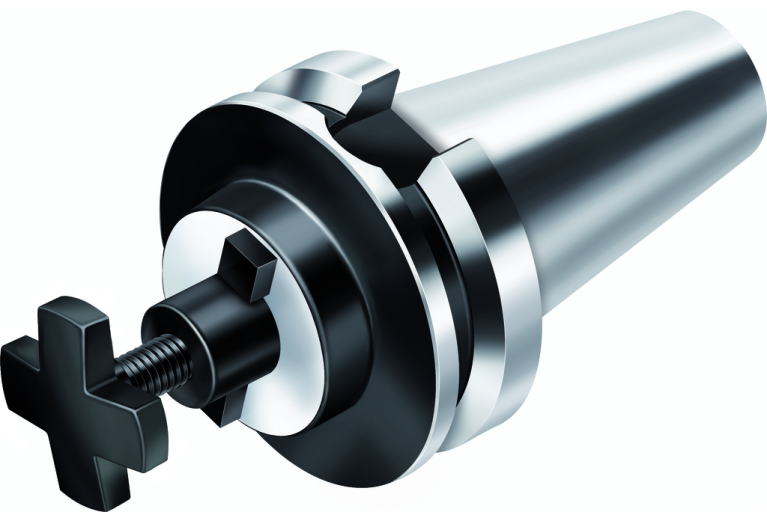

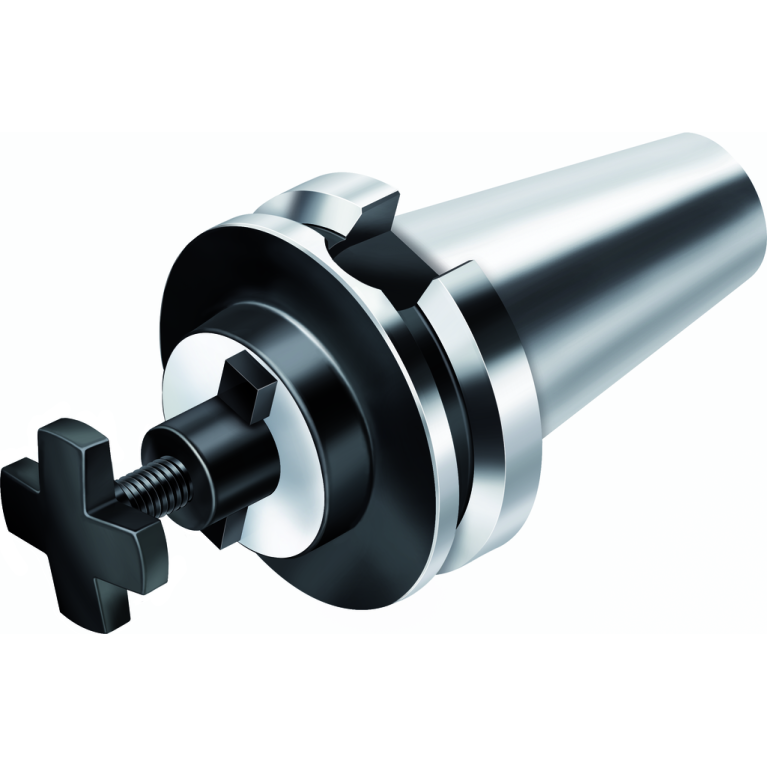

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A155.BT40.100.22

A155.BT40.100.22

A155.BT40.100.22 A155.BT40.100.22 A155.BT40.100.22 A155.BT40.100.22

A155.BT40.100.22

Walter
Артикул: 6257808
В наличии
В корзину
Описание
Характеристики

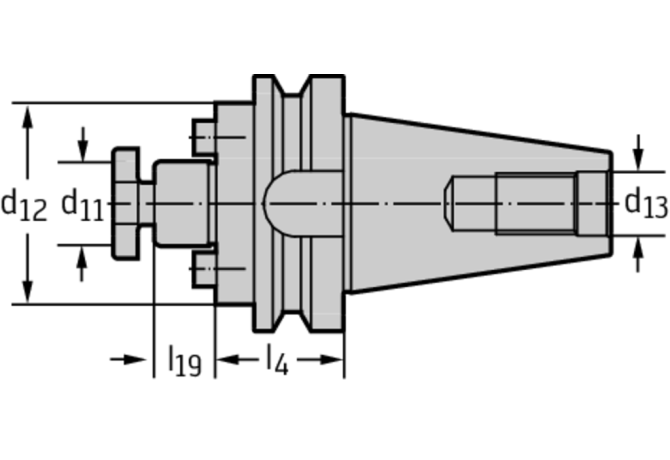

BD Body diameter
48 mm
CCFWS Form
12
CCSWS Style
0
CCTWS Type
FDA
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0220
DCONWS Diameter
22 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
63 mm
DIN
SKG04005195
FamilyProducts
MAS-BT JIS B 6339 shell mill arbor A155.BT
ID Technical product number
6257808
Interface codes
J6 / J61
ISO
SKG51C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
73 mm
LF Functional length
100 mm
LOC-01 CCFWS Form
12
LOC-01 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Type
FDA Milling arbor mounting
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0220
LOC-01 DCONWS Diameter
22 mm
LOC-01 ISO
FDA12G2200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02201210
LOC-02 CCFWS Form
12
LOC-02 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-02 CCTWS Type
FDA Milling arbor mounting
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0220
LOC-02 DCONWS Diameter
22 mm
LOC-02 ISO
FDA22G2200****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
FDA02202210
LOC-03 CCFMS Form
51
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SKG steep taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
22 mm
LOC-03 ISO
SKG51C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04005195
LPR Protruding length
119 mm
LS Shank length
19 mm
Name Identifying order number
A155.BT40.100.22
OAL Overall length
183.8 mm
RPMX Rotational speed maximum
12000 1/min
STDLET Standard letter to the standard number
AD
STDNO Standard
MAS403-BT
THSZMS Connection thread nominal size machine side
M16
WT Weight of item
2.067 kg
