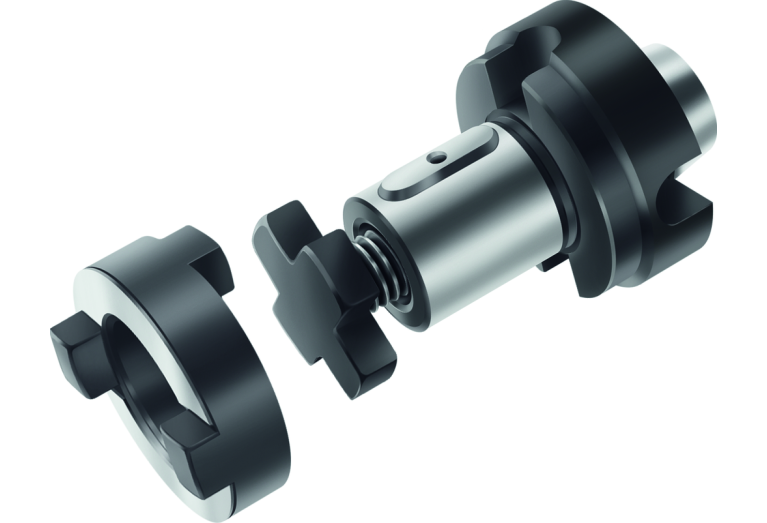

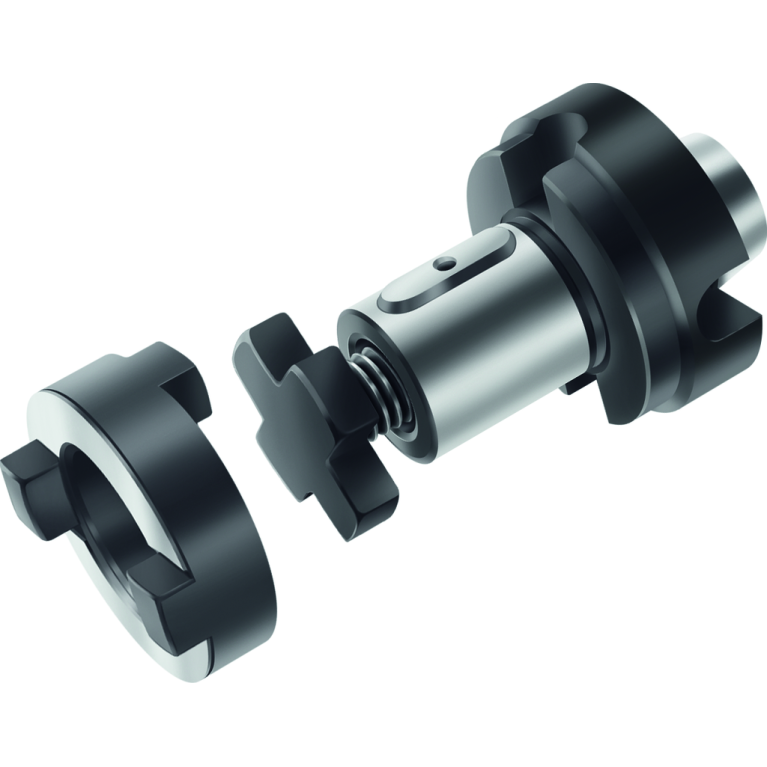

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A150M.0.80.040.22

A150M.0.80.040.22

A150M.0.80.040.22 A150M.0.80.040.22 A150M.0.80.040.22 A150M.0.80.040.22

A150M.0.80.040.22

Walter
Артикул: 5007369
В наличии
В корзину
Описание
Характеристики
BD Body diameter
40 mm
CCFWS Form
01
CCSWS Style
0
CCTWS Type
FDA
CCUWS Unit base
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0866
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
NCT08000185
FamilyProducts
Combination adaptor A150M
ID Technical product number
5007369
Interface codes
J6 / J61
ISO
NCT01C0800$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
3.5 mm
LF Functional length
28 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Type
FDA Milling arbor mounting
LOC-01 CCUWS Unit base
2 Inch
LOC-01 CZCWS Size code
0866
LOC-01 ISO
FDA01R8661****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA08660120
LOC-02 CCFWS Form
01
LOC-02 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-02 CCTWS Type
FDA Milling arbor mounting
LOC-02 CCUWS Unit base
2 Inch
LOC-02 CZCWS Size code
0866
LOC-02 ISO
FDA01G2200****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
FDA02200100
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
NCT Novex-NC-Tools WALTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0800
LOC-03 DCONMS Diameter
80 mm
LOC-03 ISO
NCT01C0800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
NCT08000185
LPR Protruding length
28 mm
LS Shank length
31 mm
Name Identifying order number
A150M.0.80.040.22
OAL Overall length
77 mm
RPMX Rotational speed maximum
30000 1/min
WT Weight of item
1.056 kg
