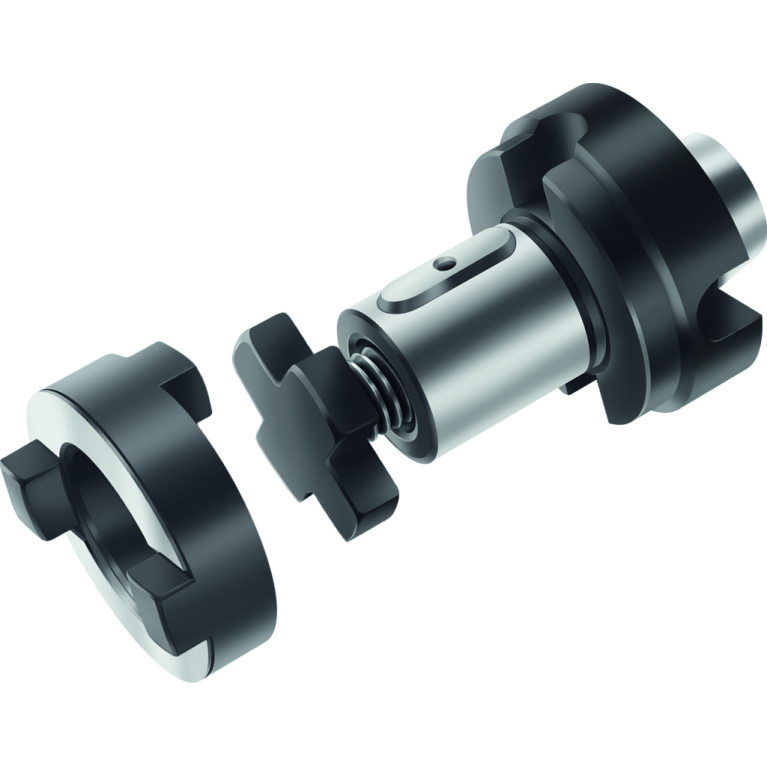

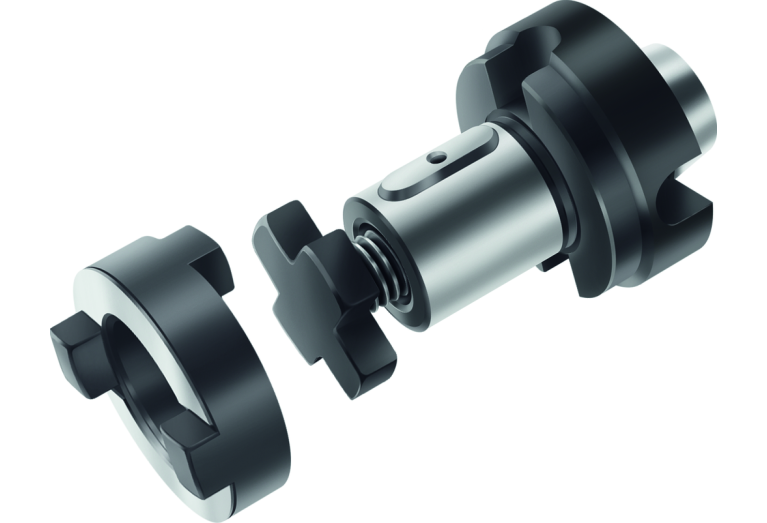

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A150M.0.63.035.27

A150M.0.63.035.27

A150M.0.63.035.27 A150M.0.63.035.27 A150M.0.63.035.27

A150M.0.63.035.27

Walter
Артикул: 5007366
В наличии
В корзину
Описание
Характеристики

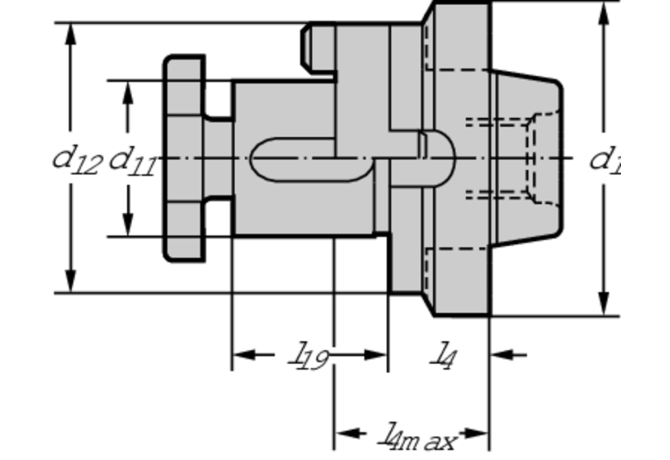

BD Body diameter
48 mm
CCFWS Form
12
CCSWS Style
0
CCTWS Type
FDA
CCUWS Unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0270
DCONWS Diameter
27 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
63 mm
DIN
NCT06300185
FamilyProducts
Combination adaptor A150M
ID Technical product number
5007366
Interface codes
J6 / J61
ISO
NCT01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
5 mm
LF Functional length
23 mm
LOC-01 CCFWS Form
12
LOC-01 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Type
FDA Milling arbor mounting
LOC-01 CCUWS Unit base
0 Metric
LOC-01 CZCWS Size code
0270
LOC-01 DCONWS Diameter
27 mm
LOC-01 ISO
FDA12G2700****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02701200
LOC-02 CCFWS Form
12
LOC-02 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-02 CCTWS Type
FDA Milling arbor mounting
LOC-02 CCUWS Unit base
0 Metric
LOC-02 CZCWS Size code
0270
LOC-02 DCONWS Diameter
27 mm
LOC-02 ISO
FDA22G2700****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
FDA02702200
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
NCT Novex-NC-Tools WALTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
NCT01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
NCT06300185
LPR Protruding length
23 mm
LS Shank length
16 mm
Name Identifying order number
A150M.0.63.035.27
OAL Overall length
39 mm
RPMX Rotational speed maximum
30000 1/min
WT Weight of item
0.788 kg
