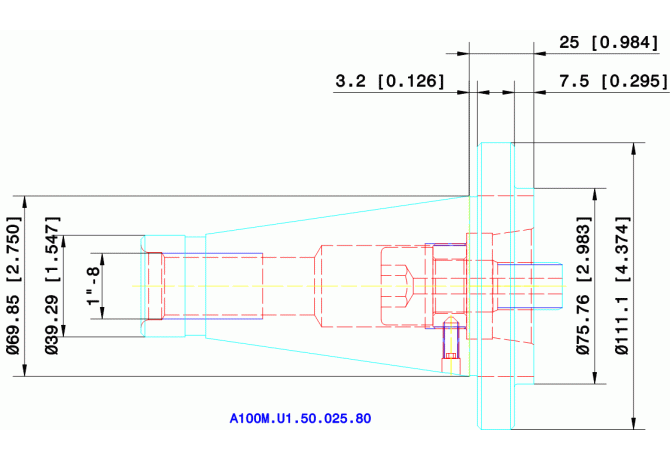

A100M.U1.50.025.80

Артикул: 5034447

В наличии

В корзину

Описание

Характеристики

BD Body diameter

75.76 mm

BD Body diameter 2

111.1 mm

CCFWS Form

CCSWS Style

CCTWS Type

NCT

CCUWS Unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0800

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

97.5 mm

DIN

SKG05002085

FamilyProducts

DIN 2080 master A100M.1

ID Technical product number

5034447

Interface codes

J6 / J61

ISO

SKG20A0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

7.5 mm

LB Length 2

25 mm

LF Functional length

24.99 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

NCT Novex-NC-Tools WALTER

LOC-01 CCUWS Unit base

8 non-dimensional size

LOC-01 CZCWS Size code

0800

LOC-01 ISO

NCT01C0800****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

NCT08000185

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

80 mm

LOC-03 ISO

SKG20A0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05002085

LPR Protruding length

24.99 mm

Name Identifying order number

A100M.U1.50.025.80

OAL Overall length

151.79 mm

RPMX Rotational speed maximum

12000 1/min

STDLET Standard letter to the standard number

STDNO Standard

DIN 4000-89 KENNZAHL

THSZMS Connection thread nominal size machine side

M24

WT Weight of item

2.88 kg
