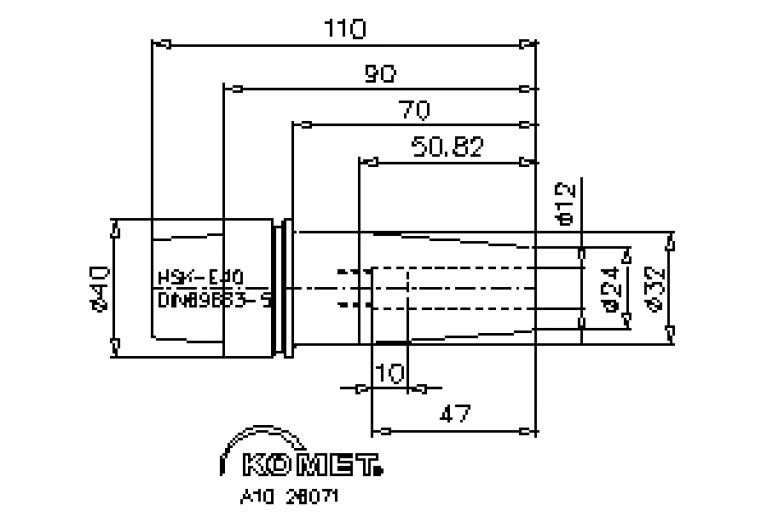

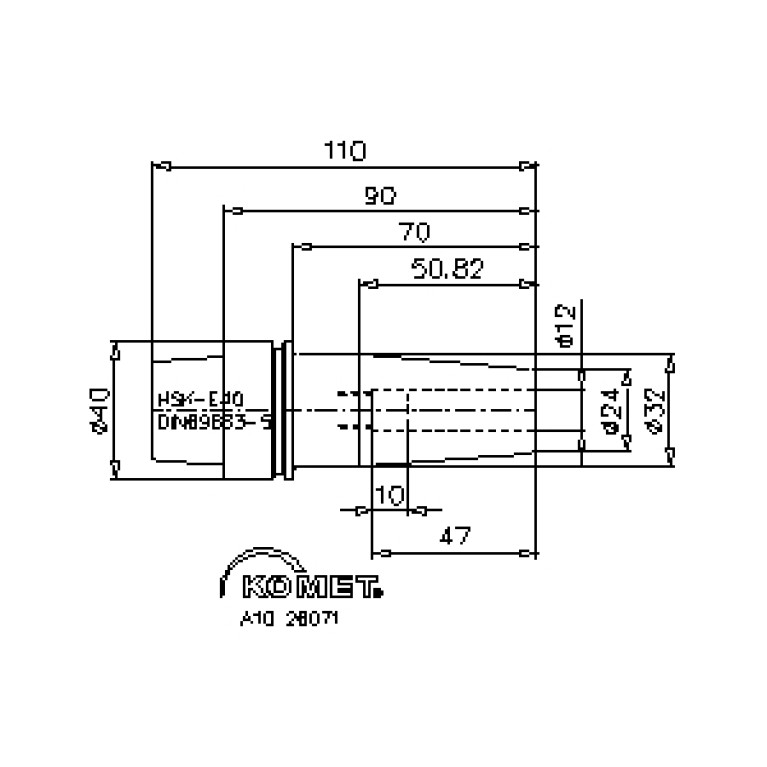

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A10 26071

A10 26071

A10 26071

Komet Group

Артикул: 1496678

В наличии

В корзину

Описание

Характеристики

A1 CHW Chamfer width at length 1

50.8248 mm

BD Body diameter

24 mm

BD Body diameter 2

32 mm

CCFWS Connection code form

01

CCSWS Connection code style

5

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0120

DCINTF Interference cutting diameter

24 mm

DCONWS Diameter

12 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DF Flange diameter

40 mm

DIN

HSK04000395

FamilyProducts

Schrumpffutter Ø12

HAND Cutting direction

N - Neutral

ID Technical product number

1496678

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

01

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0120

LOC-01 DCONWS Diameter

12 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01200115

LOC-03 CCFMS Connection code form

03

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK04000395

LPR Protruding length

90 mm

Name Identifying order number

A10 26071

OAL Overall length

110 mm

Rotation Rotation indicator

1 - rotating tool

STDNO Standard

DIN69863-5

WT Weight of item

0.48 kg
