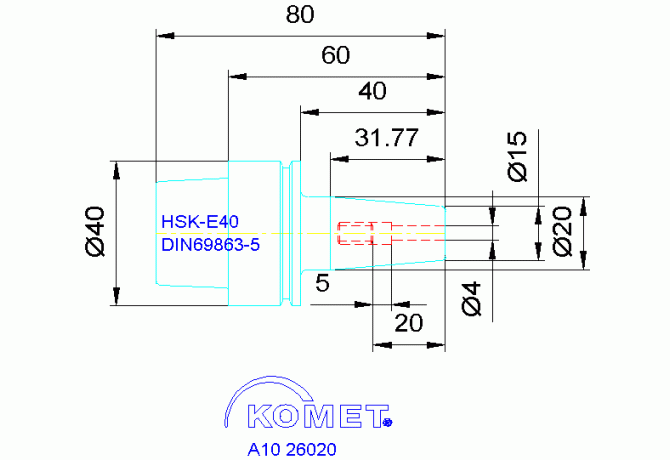

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A10 26020

A10 26020

A10 26020 A10 26020

A10 26020

Komet Group
Артикул: 1484086
В наличии
В корзину
Описание
Характеристики
A1 CHW Chamfer width at length 1
31.7655 mm
BD Body diameter
15 mm
BD Body diameter 2
20 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0040
DCINTF Interference cutting diameter
15 mm
DCONWS Diameter
4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
40 mm
DIN
HSK04000395
FamilyProducts
Schrumpffutter Ø 4
HAND Cutting direction
N - Neutral
ID Technical product number
1484086
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0040
LOC-01 DCONWS Diameter
4 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00400115
LOC-03 CCFMS Connection code form
03
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK04000395
LPR Protruding length
60 mm
Name Identifying order number
A10 26020
OAL Overall length
80 mm
Rotation Rotation indicator
1 - rotating tool
STDNO Standard
DIN69863-5
WT Weight of item
0.24 kg
