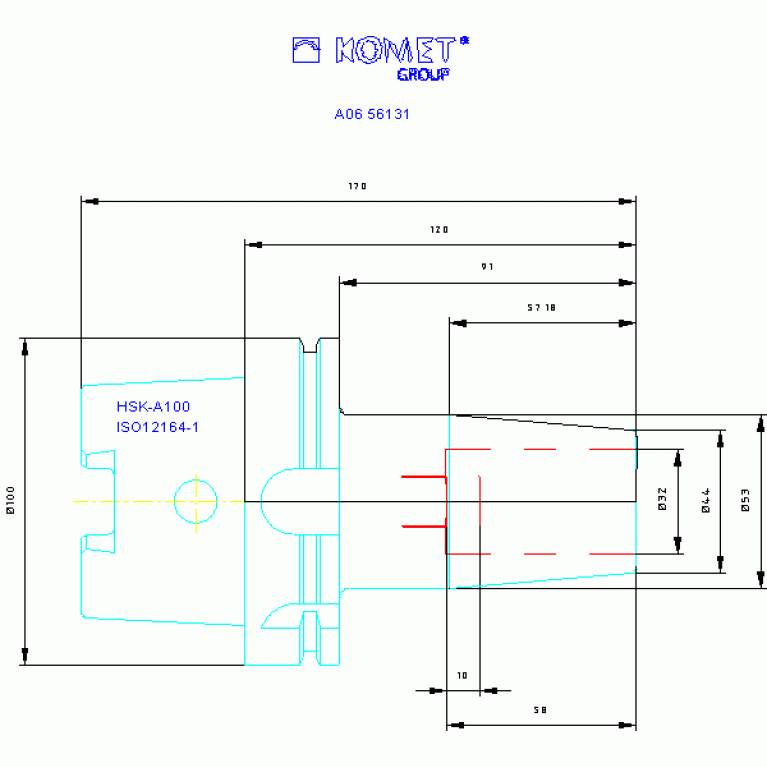

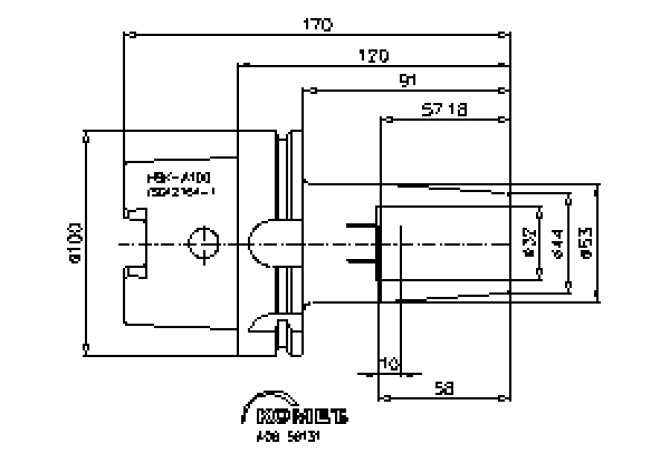

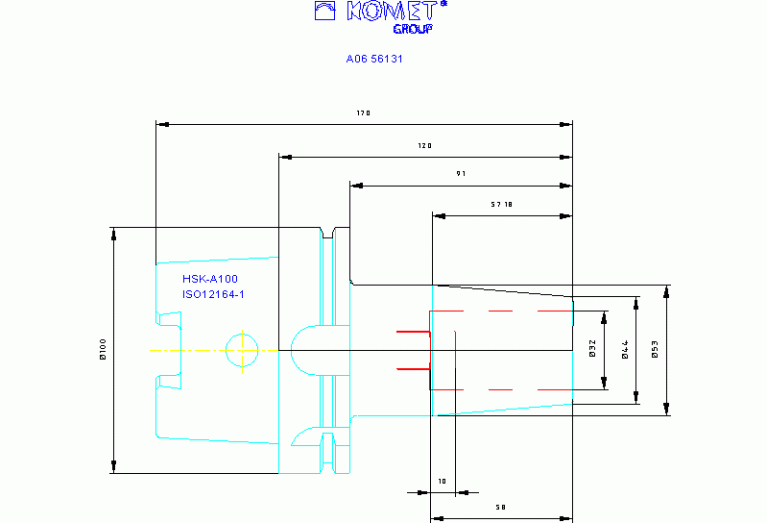

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A06 56131

A06 56131

A06 56131 A06 56131 A06 56131

A06 56131

Komet Group
Артикул: 1496662
В наличии
В корзину
Описание
Характеристики
BD Body diameter
53 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0320
DCINTF Interference cutting diameter
44 mm
DCONWS Diameter
32 mm
DCONXWS Connection diameter max
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
100 mm
DIN
HSK10000195
FamilyProducts
Schrumpffutter Ø32
HAND Cutting direction
N - Neutral
ID Technical product number
1496662
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
91 mm
LF Functional length
62 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0320
LOC-01 DCONWS Diameter
32 mm
LOC-01 DCONXWS Connection diameter max
32 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL03200115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
120 mm
LSCN Clamping length minimum
48 mm
LSCX Clamping length maximum
58 mm
Name Identifying order number
A06 56131
OAL Overall length
170 mm
Rotation Rotation indicator
1 - rotating tool
STDNO Standard
DIN69893-1
TA Taper angle
4.5 Degree
TG Taper ratio
1:12,7062
WT Weight of item
2.93 kg
