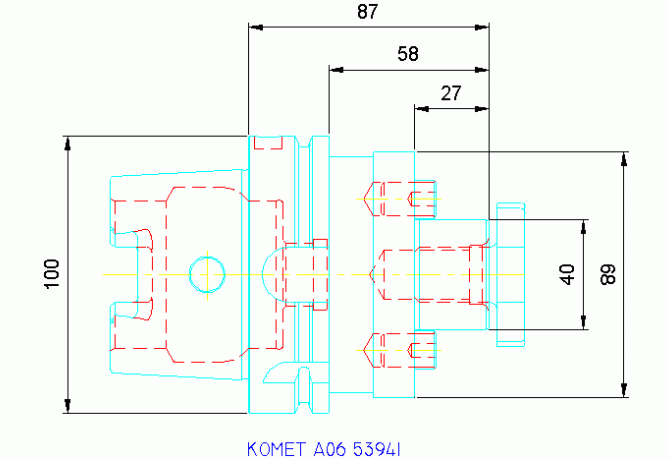

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A06 53941

A06 53941

A06 53941

Komet Group

Артикул: 1487780

В наличии

В корзину

Описание

Характеристики

BD Body diameter

89 mm

BD Body diameter 2

85 mm

CCFWS Connection code form

02

CCSWS Connection code style

0

CCTWS Connection code type

FDA

CCUWS Connection code unit base

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0400

DCINTF Interference cutting diameter

40 mm

DCONWS Diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DF Flange diameter

100 mm

DIN

HSK10000195

FamilyProducts

Fräseraufnahme

HAND Cutting direction

N - Neutral

ID Technical product number

1487780

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

15 mm

LB Length 2

16 mm

LF Functional length

60 mm

LOC-01 CCFWS Connection code form

02

LOC-01 CCSWS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Connection code type

FDA Milling arbor mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0400

LOC-01 DCONWS Diameter

40 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA04000210

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000195

LPR Protruding length

87 mm

LSCN Clamping length minimum

27 mm

LSCX Clamping length maximum

27 mm

Name Identifying order number

A06 53941

OAL Overall length

137 mm

Rotation Rotation indicator

1 - rotating tool

STDNO Standard

DIN69893-1

TA Taper angle

58.52316 Degree
