Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A06 53931

A06 53931

A06 53931 A06 53931

A06 53931

Komet Group
Артикул: 1487779
В наличии
В корзину
Описание
Характеристики

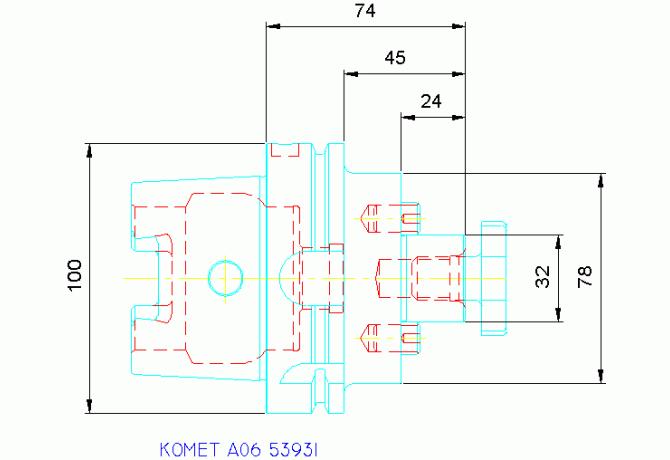

BD Body diameter
78 mm
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0320
DCINTF Interference cutting diameter
32 mm
DCONWS Diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
100 mm
DIN
HSK10000195
FamilyProducts
Fräseraufnahme
HAND Cutting direction
N - Neutral
ID Technical product number
1487779
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
21 mm
LF Functional length
50 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0320
LOC-01 DCONWS Diameter
32 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA03200210
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
74 mm
LSCN Clamping length minimum
24 mm
LSCX Clamping length maximum
24 mm
Name Identifying order number
A06 53931
OAL Overall length
121 mm
Rotation Rotation indicator
1 - rotating tool
STDNO Standard
DIN69893-1
TA Taper angle
47.60256 Degree
