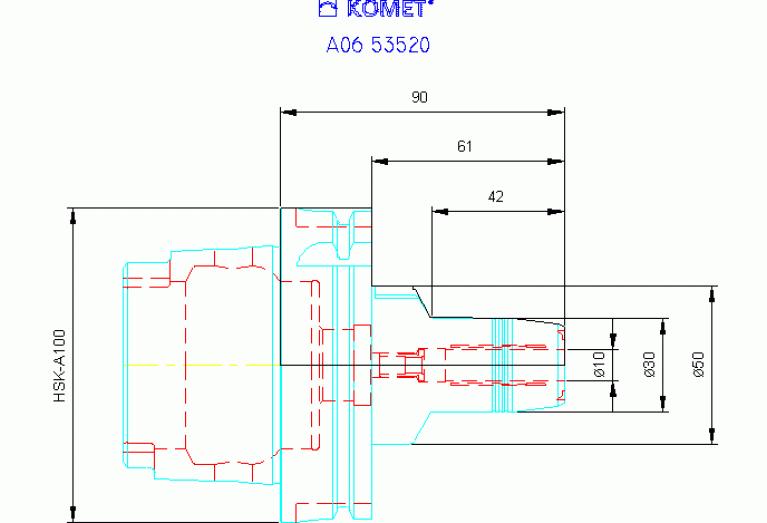

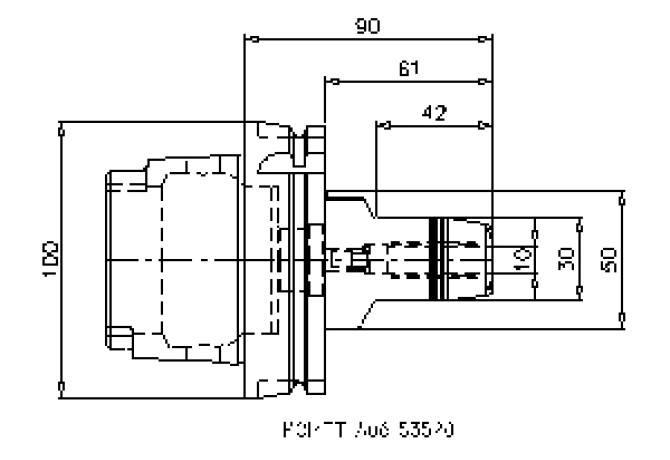

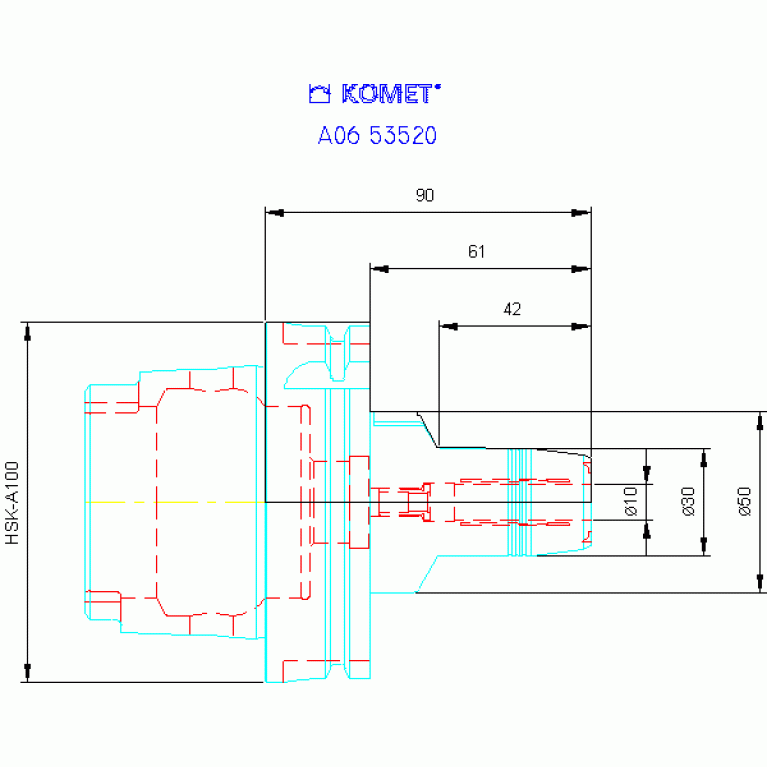

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A06 53520

A06 53520

A06 53520 A06 53520 A06 53520

A06 53520

Komet Group
Артикул: 1484239
В наличии
В корзину
Описание
Характеристики
BD Body diameter
30 mm
BD Body diameter 2
50 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0100
DCINTF Interference cutting diameter
25.65045 mm
DCONWS Diameter
10 mm
DCONXWS Connection diameter max
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
100 mm
DIN
HSK10000195
FamilyProducts
Hydrodehnspannfutter Ø10
HAND Cutting direction
N - Neutral
ID Technical product number
1484239
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
42 mm
LB Length 2
19 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0100
LOC-01 DCONWS Diameter
10 mm
LOC-01 DCONXWS Connection diameter max
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01000115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
90 mm
LSCN Clamping length minimum
0 mm
Name Identifying order number
A06 53520
OAL Overall length
140 mm
Rotation Rotation indicator
1 - rotating tool
STDNO Standard
DIN69893-1
TA Taper angle
7.5 Degree
WT Weight of item
2.5 kg
