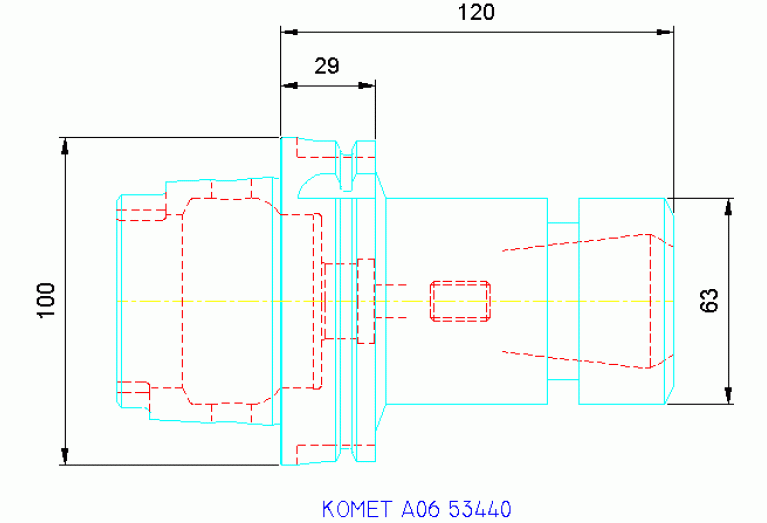

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A06 53440

A06 53440

A06 53440 A06 53440 A06 53440

A06 53440

Komet Group
Артикул: 1476197
В наличии
В корзину
Описание
Характеристики
A2 CHA Chamfer angle at length 2
70 Degree
A2 CHW Chamfer width at length 2
3.0908 mm
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
63 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0400
DCONWS Diameter
3 mm
DCONXWS Connection diameter max
26 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
100 mm
DIN
HSK10000195
DLN Diameter lock nut
63 mm
FamilyProducts
Spannzangenfutter Ø3,0-26,0
HAN Adjustment nut height
29 mm
HAND Cutting direction
N - Neutral
ID Technical product number
1476197
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
49.2 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0400
LOC-01 DCONWS Diameter
3 mm
LOC-01 DCONXWS Connection diameter max
26 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD04000115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
120 mm
Name Identifying order number
A06 53440
OAL Overall length
170 mm
Rotation Rotation indicator
1 - rotating tool
STDNO Standard
DIN69893-1
WT Weight of item
3 kg
