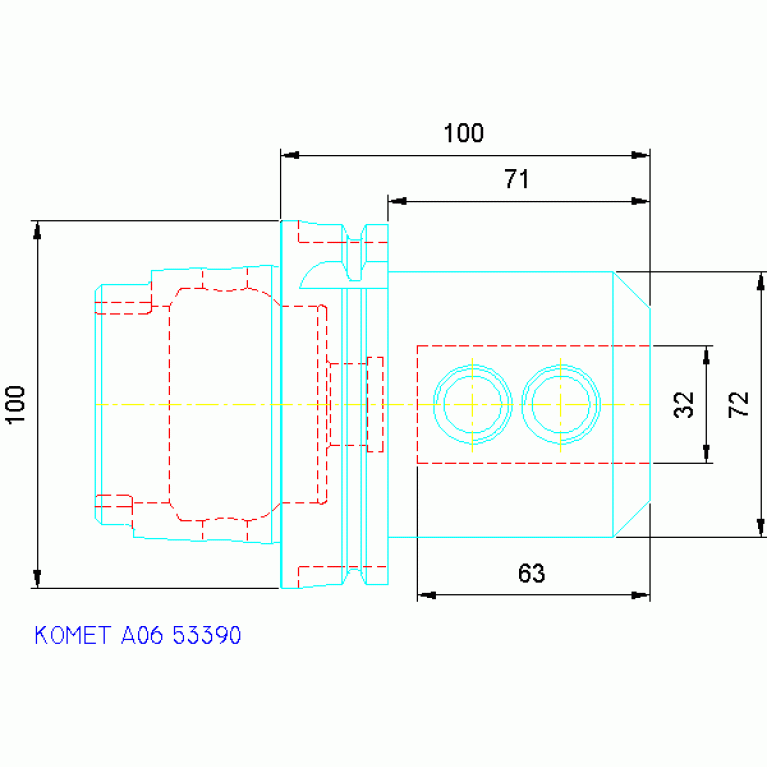

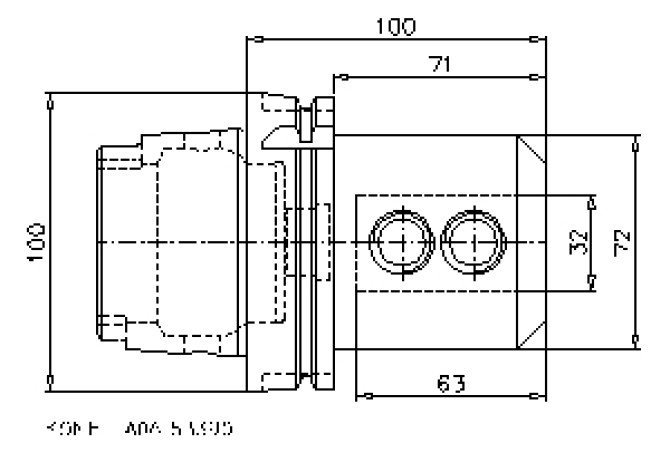

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A06 53390

A06 53390

A06 53390

Komet Group

Артикул: 1476275

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

2 - Axial adjustment possible

BD Body diameter

72 mm

CCFWS Connection code form

10

CCSWS Connection code style

5

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0320

DCINTF Interference cutting diameter

52 mm

DCONWS Diameter

32 mm

DCONXWS Connection diameter max

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DF Flange diameter

100 mm

DIN

HSK10000195

FamilyProducts

Spannfutter Ø32

HAND Cutting direction

N - Neutral

ID Technical product number

1476275

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

71 mm

LF Functional length

100 mm

LOC-01 CCFWS Connection code form

10

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0320

LOC-01 DCONWS Diameter

32 mm

LOC-01 DCONXWS Connection diameter max

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL03201015

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000195

LPR Protruding length

100 mm

LSCN Clamping length minimum

53 mm

LSCX Clamping length maximum

63 mm

Name Identifying order number

A06 53390

OAL Overall length

150 mm

Rotation Rotation indicator

1 - rotating tool

STDNO Standard

DIN69893-1

TA Taper angle

45 Degree

WT Weight of item

4.1 kg
