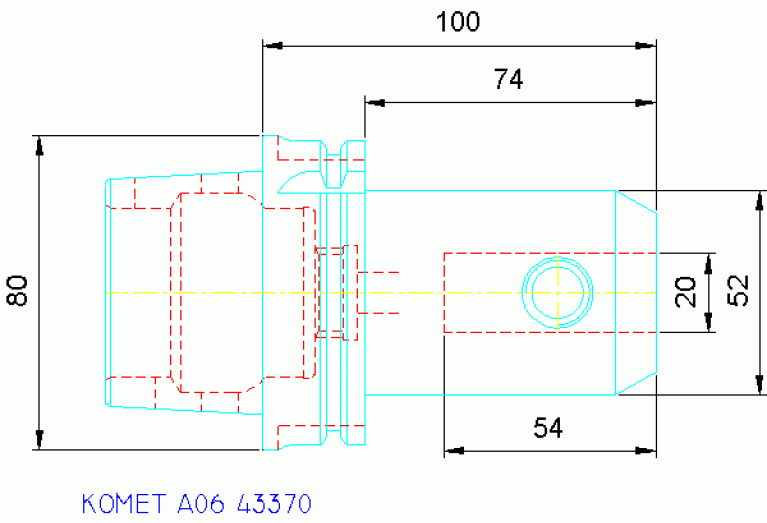

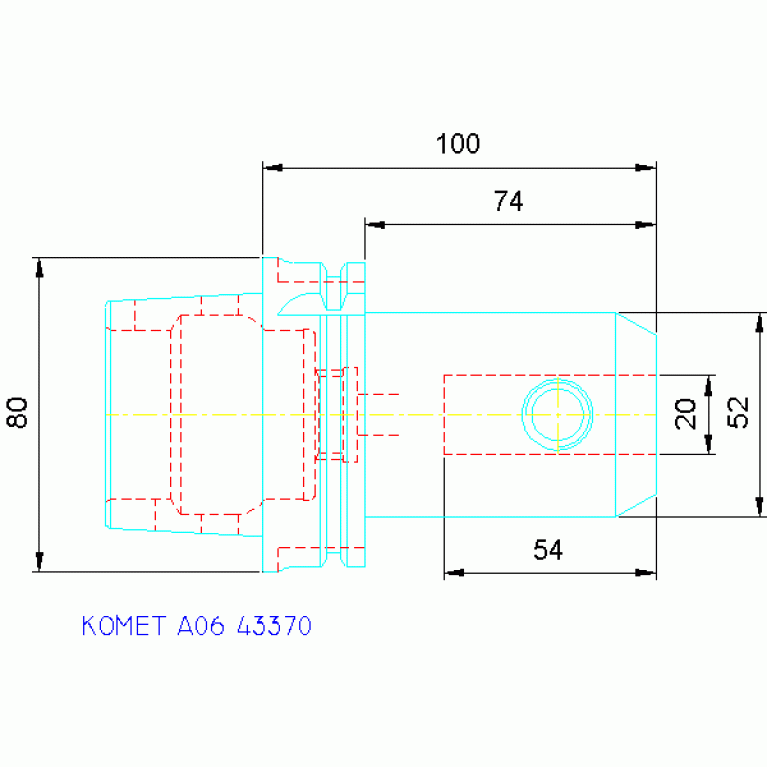

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A06 43370

A06 43370

A06 43370 A06 43370 A06 43370

A06 43370

Komet Group
Артикул: 1476263
В наличии
В корзину
Описание
Характеристики
BD Body diameter
52 mm
CCFWS Connection code form
10
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCINTF Interference cutting diameter
40 mm
DCONWS Diameter
20 mm
DCONXWS Connection diameter max
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
80 mm
DIN
HSK08000195
FamilyProducts
Spannfutter Ø20
HAND Cutting direction
N - Neutral
ID Technical product number
1476263
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
74 mm
LF Functional length
100 mm
LOC-01 CCFWS Connection code form
10
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01 DCONXWS Connection diameter max
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02001015
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0800
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK08000195
LPR Protruding length
100 mm
LSCN Clamping length minimum
54 mm
LSCX Clamping length maximum
54 mm
Name Identifying order number
A06 43370
OAL Overall length
140 mm
Rotation Rotation indicator
1 - rotating tool
STDNO Standard
DIN69893-1
TA Taper angle
30 Degree
WT Weight of item
2.08 kg
