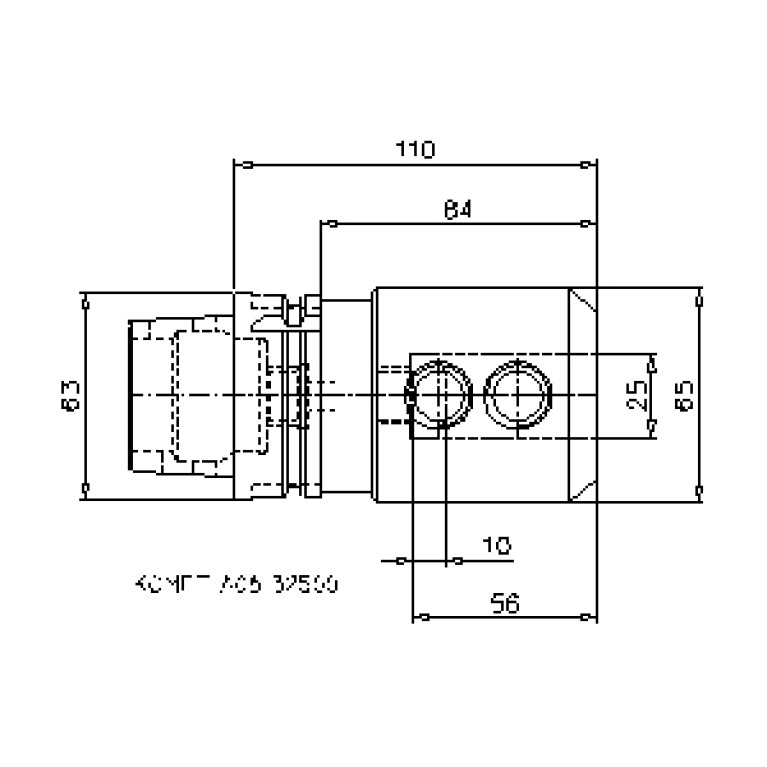

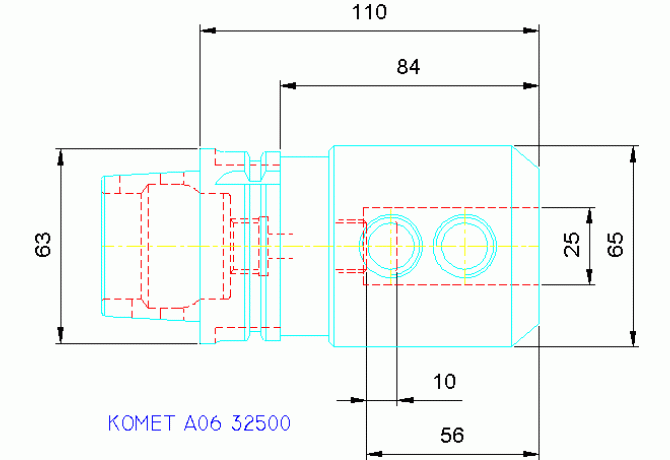

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric A06 32500

A06 32500

A06 32500 A06 32500 A06 32500

A06 32500

Komet Group
Артикул: 1476214
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
2 - Axial adjustment possible
BD Body diameter
65 mm
BD Body diameter 2
57.79498 mm
CCFWS Connection code form
13
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0250
DCINTF Interference cutting diameter
50 mm
DCONWS Diameter
25 mm
DCONXWS Connection diameter max
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
63 mm
DIN
HSK06300195
FamilyProducts
Spannfutter Whistle Notch Ø25
HAND Cutting direction
N - Neutral
ID Technical product number
1476214
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
68 mm
LB Length 2
16 mm
LOC-01 CCFWS Connection code form
13
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0250
LOC-01 DCONWS Diameter
25 mm
LOC-01 DCONXWS Connection diameter max
25 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02501315
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR Protruding length
110 mm
LSCN Clamping length minimum
46 mm
LSCX Clamping length maximum
56 mm
Name Identifying order number
A06 32500
OAL Overall length
142 mm
Rotation Rotation indicator
1 - rotating tool
STDNO Standard
DIN69893-1
TA Taper angle
39.99984 Degree
WT Weight of item
2.3 kg
