Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 75A.40.13060

75A.40.13060

75A.40.13060

Komet Group

Артикул: 1500689

В наличии

В корзину

Описание

Характеристики

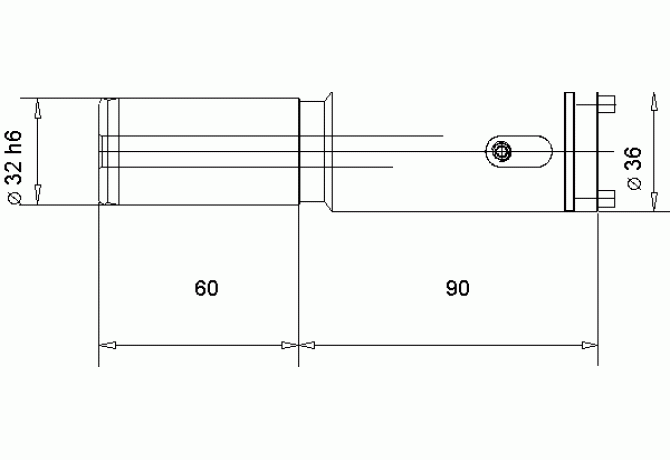

BD Body diameter

36 mm

BD Body diameter 2

36 mm

CCFWS Connection code form

01

CCSWS Connection code style

5

CCTWS Connection code type

SWK

CCUWS Connection code unit base

9

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0420

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DIN

ZYL03200115

FamilyProducts

REAMAX TS Halter kurz

HAND Cutting direction

N - Neutral

ID Technical product number

1500689

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LOC-01 CCFWS Connection code form

01

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SWK Quick change adapter KOMET

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0420

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SWK04200110

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

66986

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200115

LPR Protruding length

90 mm

LSCN Clamping length minimum

0 mm

Name Identifying order number

75A.40.13060

OAL Overall length

150 mm

Rotation Rotation indicator

1 - rotating tool

STDNO Standard

Zyl.Sch. DIN 1835 A
