Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 69871A50HC20SA064-G6

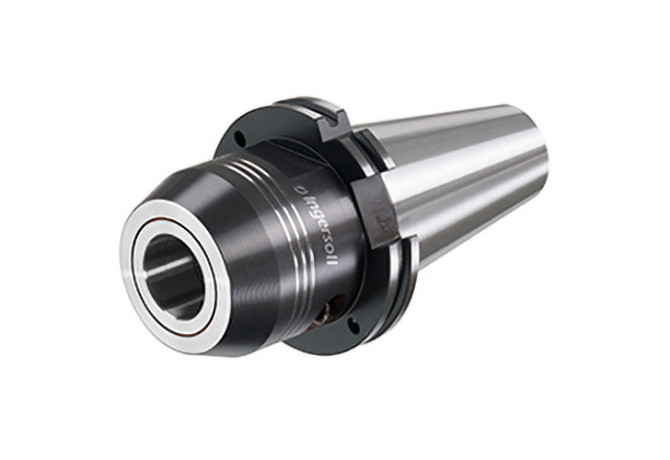

69871A50HC20SA064-G6

Артикул: 5882765

В наличии

В корзину

Описание

Характеристики

BD Body diameter

38 mm

BD Body diameter 2

49.3 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0200

DCONWS Diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LL - Stock limited

DIN

SKG05001795

FamilyProducts

ISO 40/50 DIN69871AD+B Hydraulic Expansion Chucks

HAND Cutting direction

N - Neutral

ID Technical product number

5882765

Interface codes

J6 /

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Length 2

45.5 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0200

LOC-01 DCONWS Diameter

20 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02000115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001795

LPR Protruding length

64.5 mm

LSCN Clamping length minimum

41 mm

LSCX Clamping length maximum

51 mm

Name Identifying order number

69871A50HC20SA064-G6

OAL Overall length

166.25 mm

THSZMS Connection thread nominal size machine side

M8x1

WT Weight of item

3.1 kg
