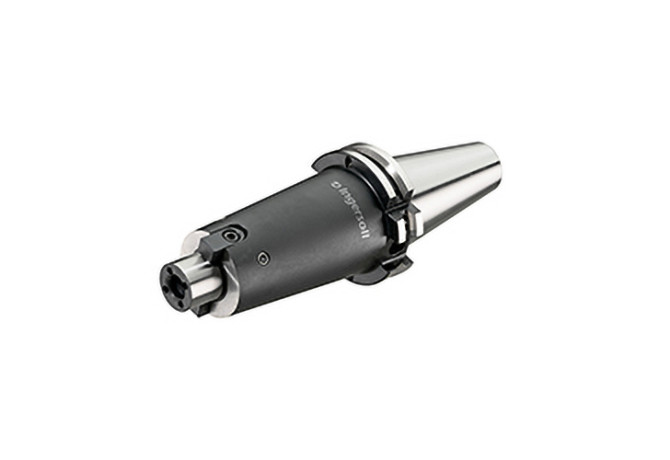

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric 69871A40SM22SK127

69871A40SM22SK127

69871A40SM22SK127 69871A40SM22SK127 69871A40SM22SK127 69871A40SM22SK127

69871A40SM22SK127

Ingersoll
Артикул: 4553223
В наличии
В корзину
Описание
Характеристики
BD Body diameter
50 mm
CCFWS Connection code form
02
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0220
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DF Flange diameter
40 mm
DIN
SKG04001195
FamilyProducts
ISO 40/50 DIN69871A Shell End Mill Arbors "extra long"
HAND Cutting direction
N - Neutral
ID Technical product number
4553223
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0220
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02202210
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001195
LPR Protruding length
100 mm
Name Identifying order number
69871A40SM22SK127
OAL Overall length
127 mm
WT Weight of item
2.2 kg
