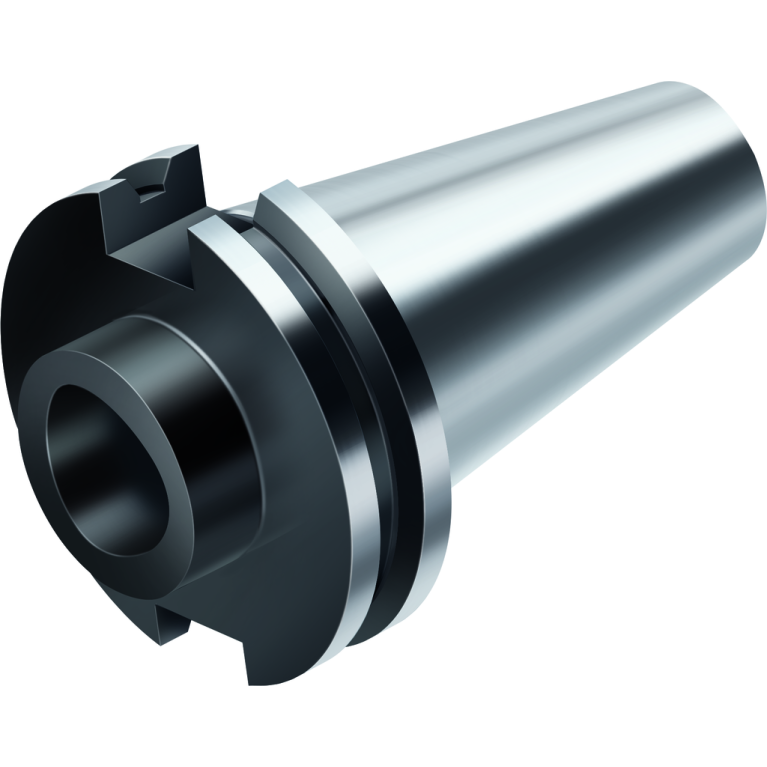

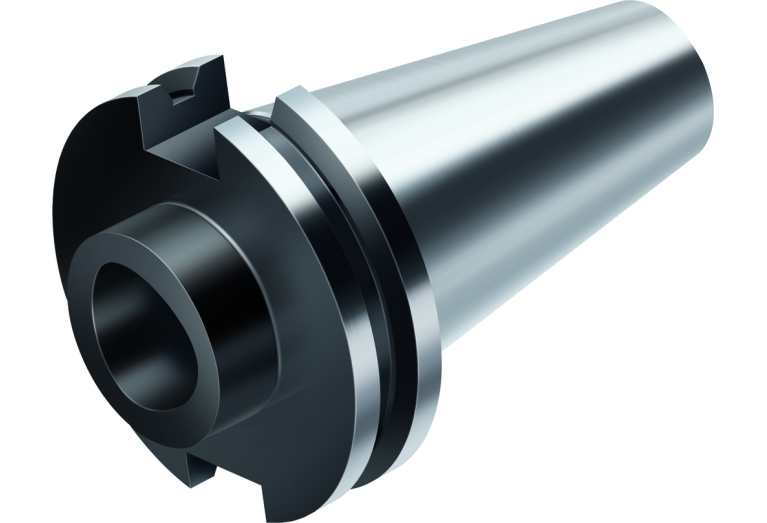

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric C4-A390B.45-40 060

C4-A390B.45-40 060

Артикул: 6728028

В наличии

В корзину

Описание

Характеристики

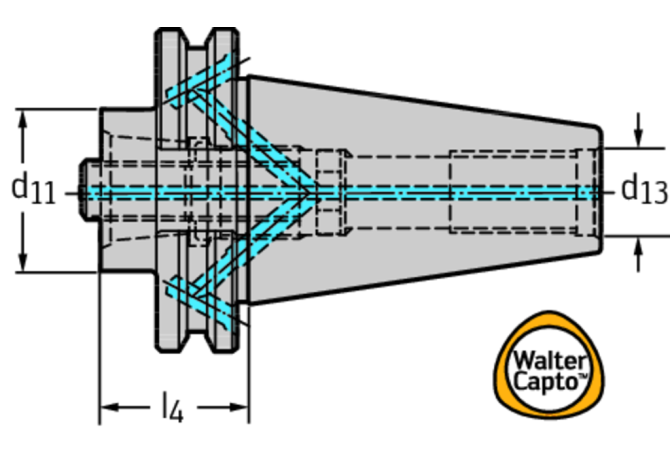

BD Body diameter

40 mm

CCFWS Form

CCSWS Style

CCTWS Type

CCS

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0400

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

63.5 mm

DIN

SKG04003795

FamilyProducts

ASME B5.50 master C.-A390B.45

ID Technical product number

6728028

Interface codes

J6 / J61

ISO

SKG37C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

40.9 mm

LF Functional length

60 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0400

LOC-01 ISO

CCS03C0400****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS04000395

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-02 CCUWS Unit base

9 non-dimensional size with coolant

LOC-02 CZCWS Size code

0400

LOC-02 ISO

CCS01C0400****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS04000195

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 ISO

SKG37C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04003795

LPR Protruding length

60 mm

LS Shank length

68.4 mm

Name Identifying order number

C4-A390B.45-40 060

OAL Overall length

128.4 mm

RPMX Rotational speed maximum

25000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO26623-2

THSZMS Connection thread nominal size machine side

5/8"-11

WT Weight of item

1.1 kg
