Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric C6-390B.555-40 075

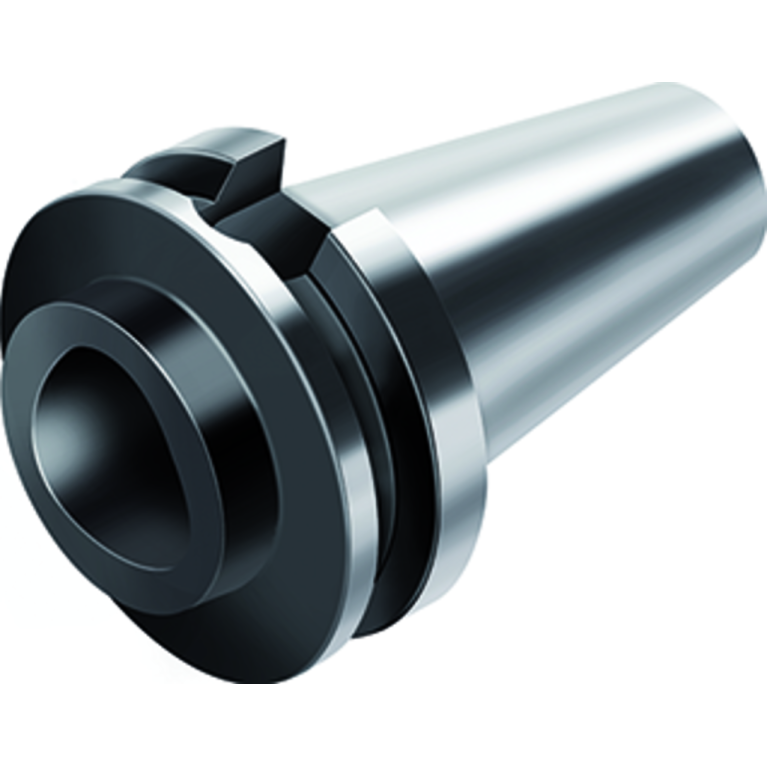

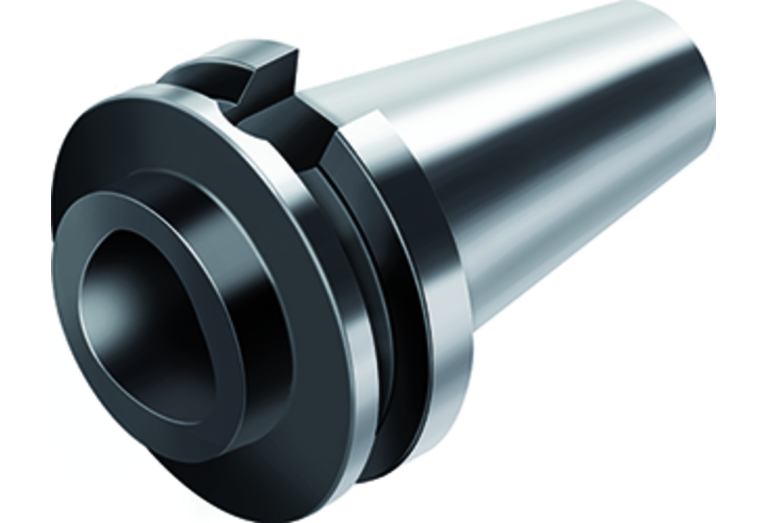

C6-390B.555-40 075

Артикул: 6425676

В наличии

В корзину

Описание

Характеристики

BD Body diameter

63 mm

CCFWS Form

CCSWS Style

CCTWS Type

CCS

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0630

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

63 mm

DIN

SKG04005795

FamilyProducts

MAS-BT JIS B 6339 AD/B master C.-390B.555 + C.-390B.558

ID Technical product number

6425676

Interface codes

J6 / J61

ISO

SKG57C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

48 mm

LF Functional length

75 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0630

LOC-01 ISO

CCS03C0630****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS06300395

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-02 CCUWS Unit base

9 non-dimensional size with coolant

LOC-02 CZCWS Size code

0630

LOC-02 ISO

CCS01C0630****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS06300195

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

63 mm

LOC-03 ISO

SKG57C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04005795

LPR Protruding length

75 mm

LS Shank length

65.4 mm

Name Identifying order number

C6-390B.555-40 075

OAL Overall length

147.4 mm

RPMX Rotational speed maximum

20000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO26623-2

THSZMS Connection thread nominal size machine side

M16

WT Weight of item

1.72 kg
