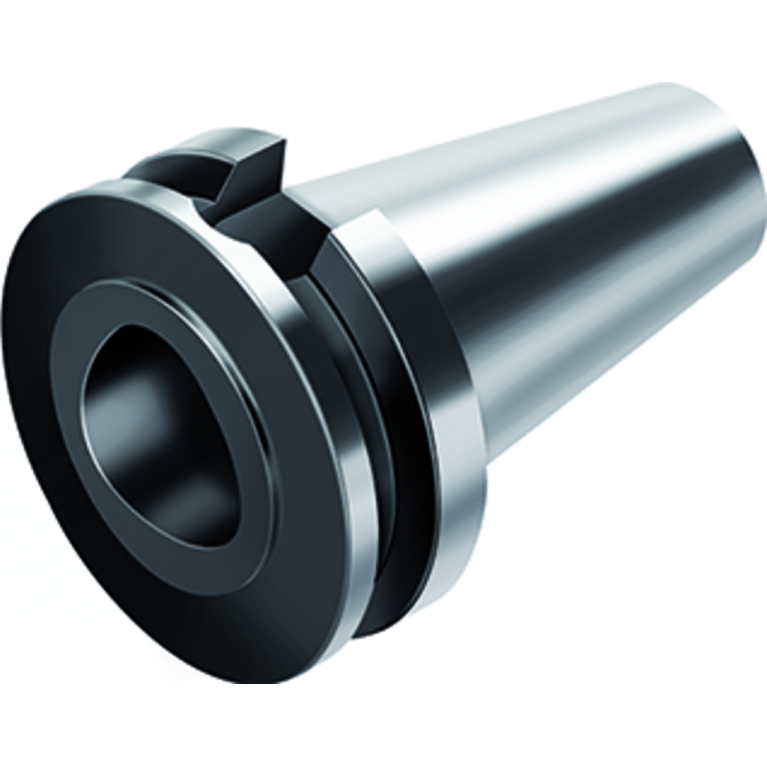

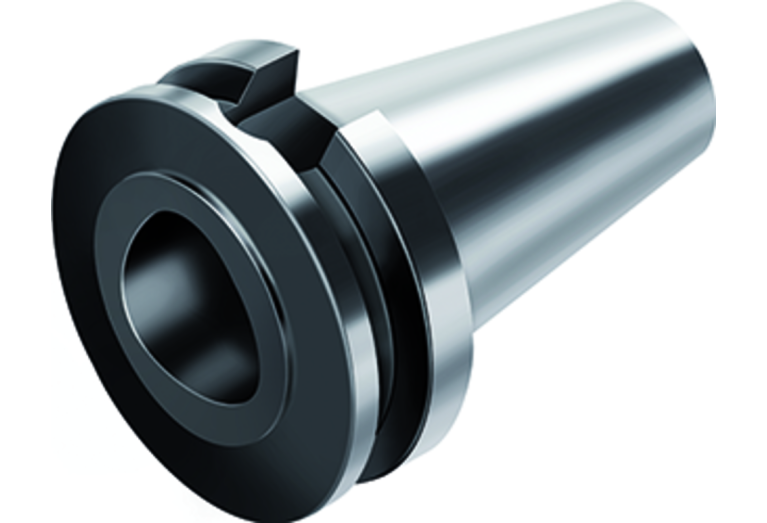

C4-390B.58-50 070

Артикул: 6424433

В наличии

В корзину

Описание

Характеристики

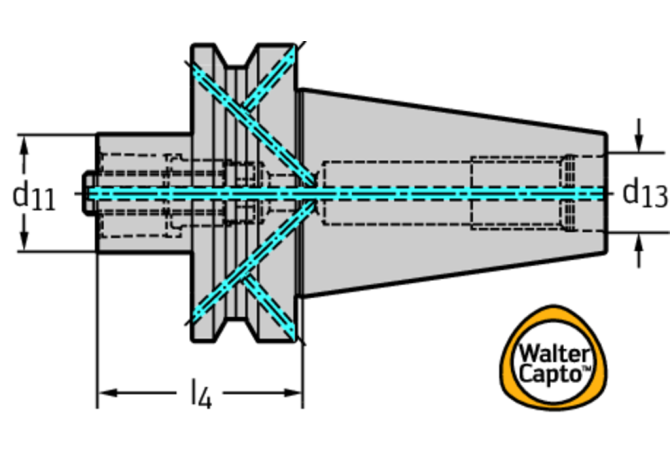

BD Body diameter

40 mm

CCFWS Form

CCSWS Style

CCTWS Type

CCS

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0400

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

100 mm

DIN

SKG05005795

FamilyProducts

MAS-BT JIS B 6339 AD/B master C.-390B.55 + C.-390B.58

ID Technical product number

6424433

Interface codes

J6 / J61

ISO

SKG57C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

28 mm

LF Functional length

70 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0400

LOC-01 ISO

CCS03C0400****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS04000395

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

CCS Coromant Capto System SANDVIK

LOC-02 CCUWS Unit base

9 non-dimensional size with coolant

LOC-02 CZCWS Size code

0400

LOC-02 ISO

CCS01C0400****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS04000195

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

40 mm

LOC-03 ISO

SKG57C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05005795

LPR Protruding length

70 mm

LS Shank length

101.8 mm

Name Identifying order number

C4-390B.58-50 070

OAL Overall length

171.8 mm

RPMX Rotational speed maximum

12000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO26623-2

THSZMS Connection thread nominal size machine side

M24

WT Weight of item

3.83 kg
