Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric C6-391.01-63 060

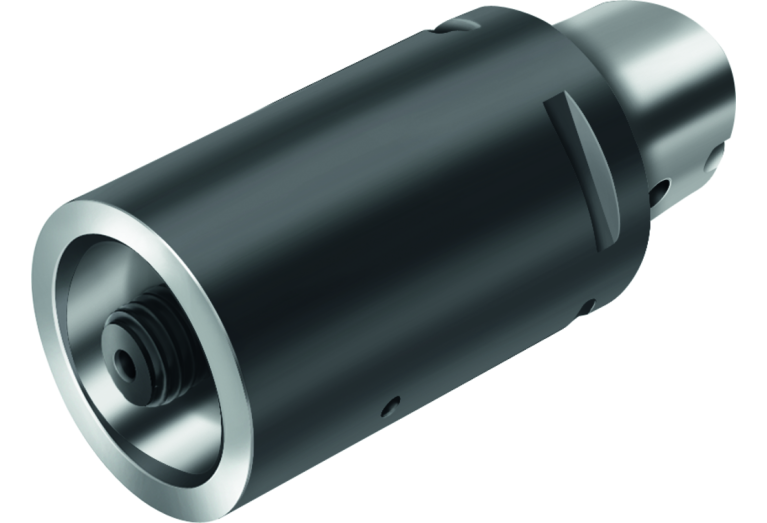

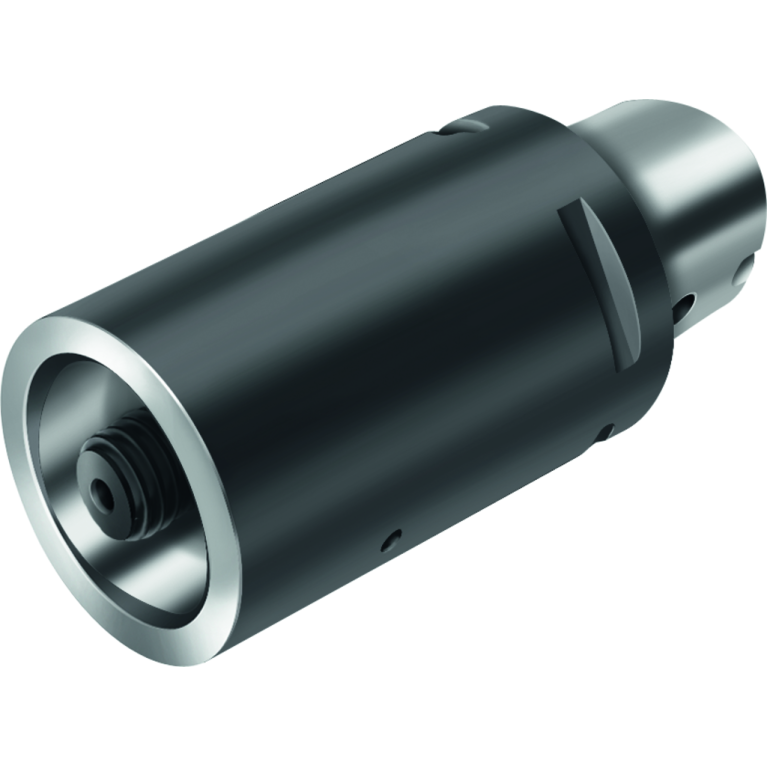

C6-391.01-63 060

C6-391.01-63 060 C6-391.01-63 060 C6-391.01-63 060

C6-391.01-63 060

Walter
Артикул: 5040088
В наличии
В корзину
Описание
Характеристики
BD Body diameter
63 mm
CCFWS Form
03
CCSWS Style
5
CCTWS Type
CCS
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0630
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS06300295
FamilyProducts
Extension C.-391.01
ID Technical product number
5040088
Interface codes
J6 / J61
ISO
CCS02C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
60 mm
LF Functional length
60 mm
LOC-01 CCFWS Form
03
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0630
LOC-01 ISO
CCS03C0630****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS06300395
LOC-02 CCFWS Form
03
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
CCS Coromant Capto System SANDVIK
LOC-02 CCUWS Unit base
9 non-dimensional size with coolant
LOC-02 CZCWS Size code
0630
LOC-02 ISO
CCS01C0630****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CCS06300195
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
CCS02C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300295
LPR Protruding length
60 mm
LS Shank length
38 mm
Name Identifying order number
C6-391.01-63 060
OAL Overall length
98 mm
RPMX Rotational speed maximum
20000 1/min
STDNO Standard
ISO26623-2
WT Weight of item
1.37 kg
