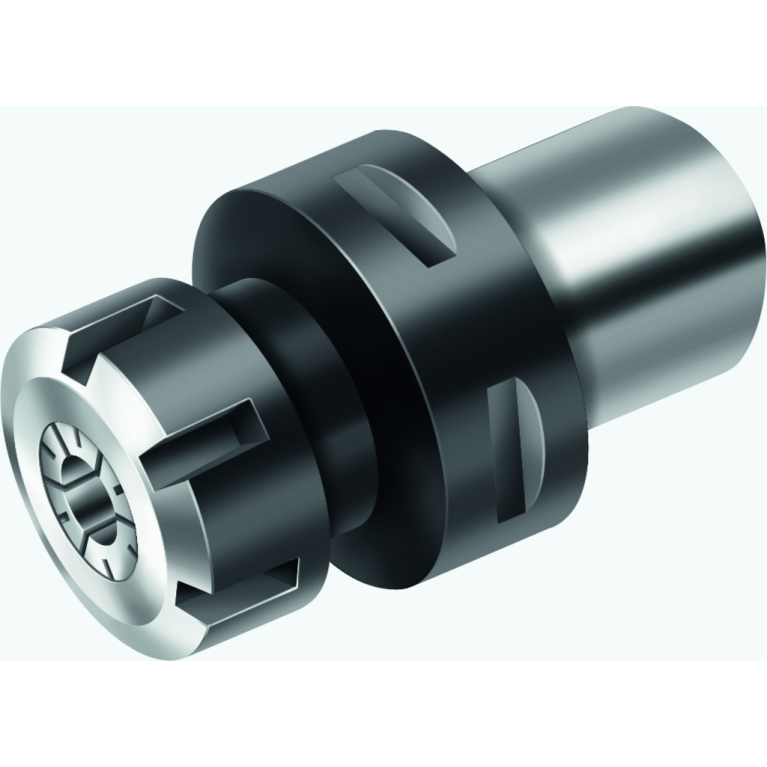

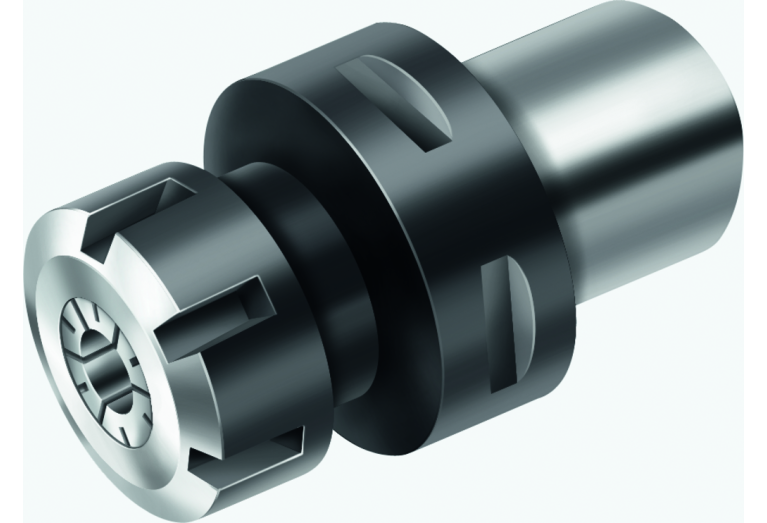

C5-391.14-20 055

C5-391.14-20 055 C5-391.14-20 055 C5-391.14-20 055

C5-391.14-20 055

Walter
Артикул: 5040067
В наличии
В корзину
Описание
Характеристики
BD Body diameter
35 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0200
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS05000185
DLN Diameter lock nut
35 mm
FamilyProducts
ER collet chucks C.-391.14
ID Technical product number
5040067
Interface codes
J6 / J61
ISO
CCS01C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
28.5 mm
LF Functional length
43.5 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
0200
LOC-01 ISO
SZD02C0200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD02000285
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
LPR Protruding length
55 mm
LS Shank length
30 mm
Name Identifying order number
C5-391.14-20 055
OAL Overall length
85 mm
RPMX Rotational speed maximum
28000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
0.604 kg
