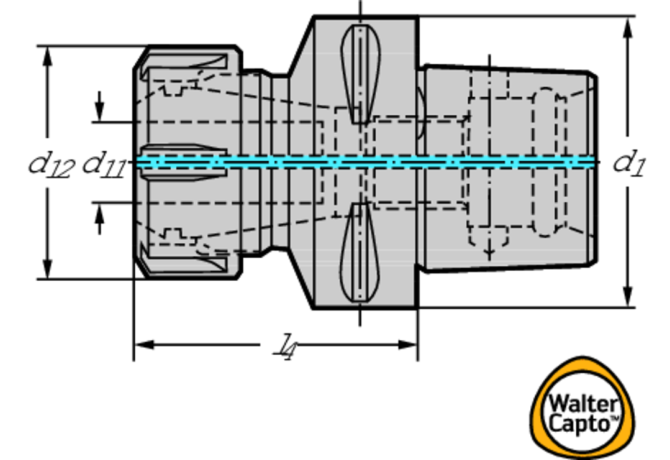

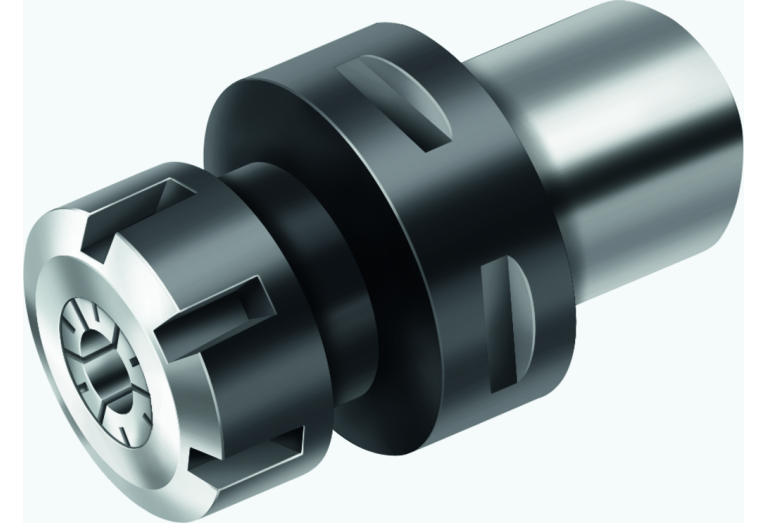

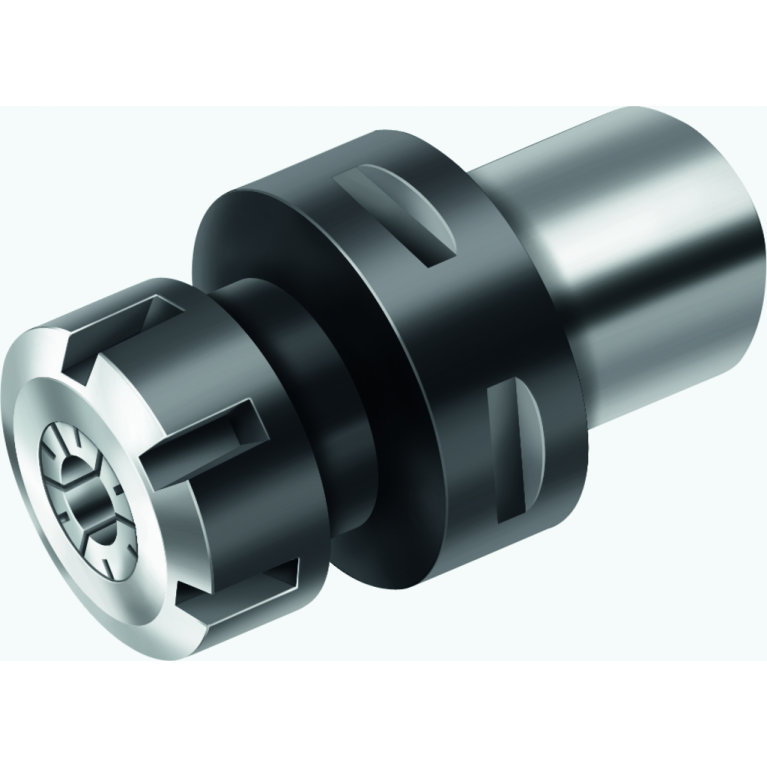

C4-391.14-20 052

C4-391.14-20 052 C4-391.14-20 052 C4-391.14-20 052

C4-391.14-20 052

Walter
Артикул: 5012458
В наличии
В корзину
Описание
Характеристики
BD Body diameter
35 mm
CCFWS Form
02
CCSWS Style
5
CCTWS Type
SZD
CCUWS Unit base
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0200
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS04000185
DLN Diameter lock nut
35 mm
FamilyProducts
ER collet chucks C.-391.14
ID Technical product number
5012458
Interface codes
J6 / J61
ISO
CCS01C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
28.5 mm
LF Functional length
40.5 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
0200
LOC-01 ISO
SZD02C0200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD02000285
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000185
LPR Protruding length
52 mm
LS Shank length
24 mm
Name Identifying order number
C4-391.14-20 052
OAL Overall length
76 mm
RPMX Rotational speed maximum
39000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
0.37 kg
