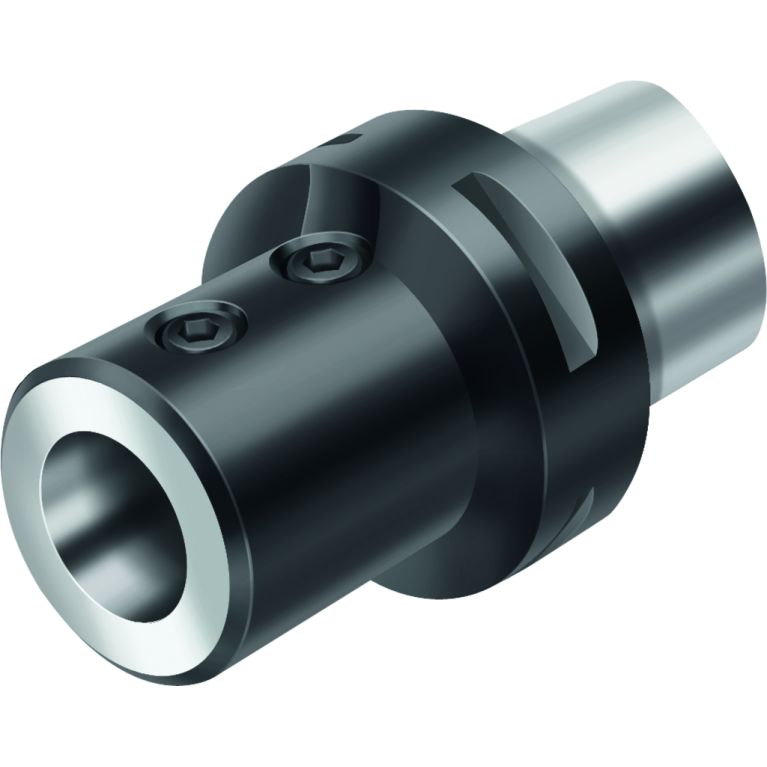

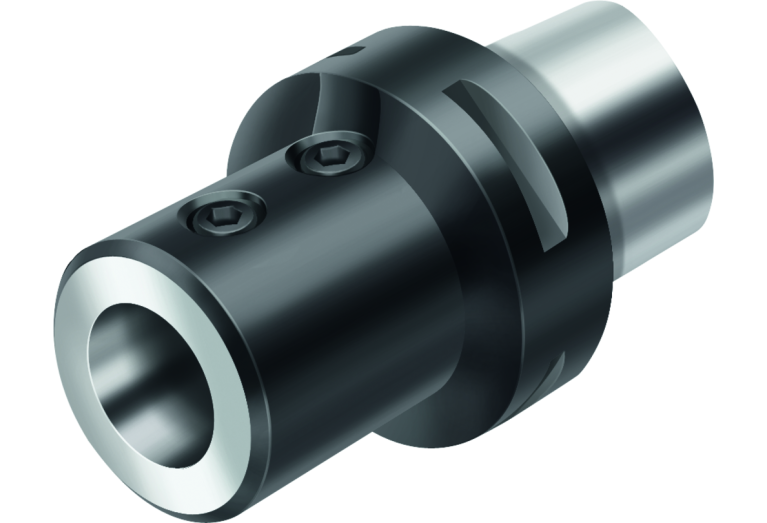

C3-391.27-20 060

C3-391.27-20 060 C3-391.27-20 060 C3-391.27-20 060

C3-391.27-20 060

Walter
Артикул: 5017214
В наличии
В корзину
Описание
Характеристики

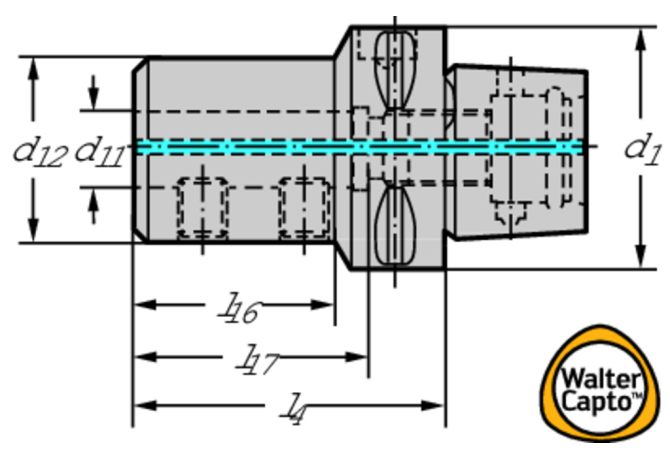

BD Body diameter
40 mm
CCFWS Form
11
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0200
DCONWS Diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS03200195
FamilyProducts
Adaptor for drilling and reaming tools C.-391.27
ID Technical product number
5017214
Interface codes
J6 / J61
ISO
CCS01C0320$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
45 mm
LF Functional length
60 mm
LOC-01 CCFWS Form
11
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01 ISO
ZYL11G2000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02001115
LOC-02 CCFWS Form
11
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0200
LOC-02 DCONWS Diameter
20 mm
LOC-02 ISO
ZYL11R7874****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL07871135
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR Protruding length
60 mm
LS Shank length
19 mm
Name Identifying order number
C3-391.27-20 060
OAL Overall length
79 mm
RPMX Rotational speed maximum
55000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
0.468 kg
