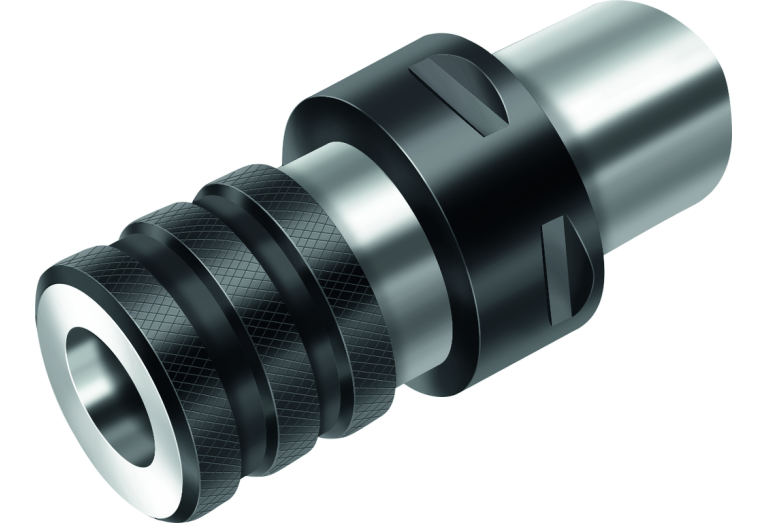

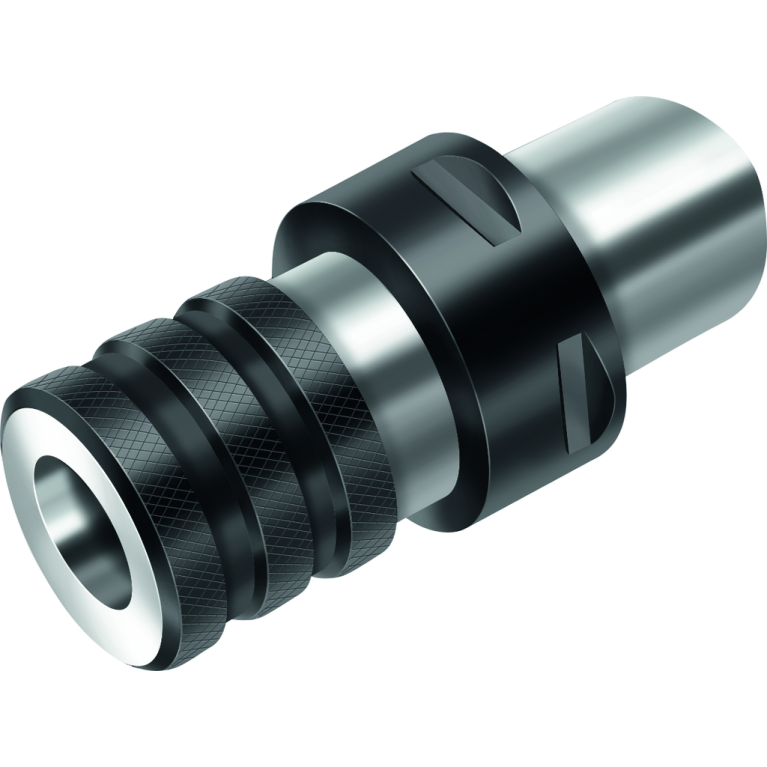

Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric C4-391.61-01 096

C4-391.61-01 096

C4-391.61-01 096 C4-391.61-01 096 C4-391.61-01 096

C4-391.61-01 096

Walter
Артикул: 5012652
В наличии
В корзину
Описание
Характеристики

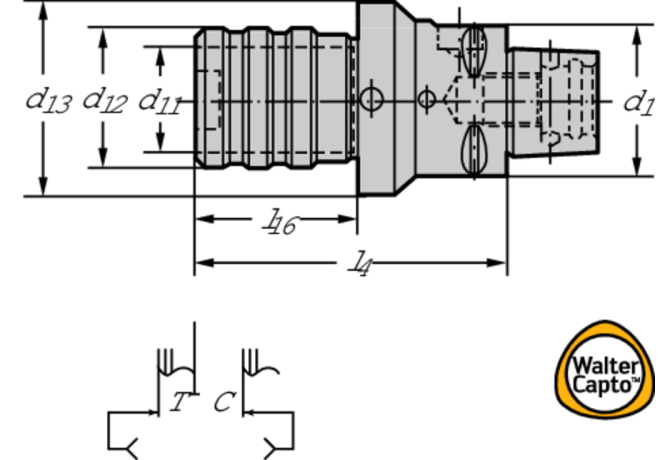

BD Body diameter
39 mm
CCFWS Form
00
CCSWS Style
5
CCTWS Type
SWB
CCUWS Unit base
8
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0190
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS04000185
DLN Diameter lock nut
39 mm
FamilyProducts
Tap quick-change chuck C.-391.60
ID Technical product number
5012652
Interface codes
J6 / J61
ISO
CCS01C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
75 mm
LF Functional length
96 mm
LOC-01 CCFWS Form
00
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SWB Quick change adapter BILZ
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
0190
LOC-01 ISO
SWB00C0190****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SWB01900085
LOC-02 CCFWS Form
00
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
SWB Quick change adapter BILZ
LOC-02 CCUWS Unit base
8 non-dimensional size
LOC-02 CZCWS Size code
0190
LOC-02 ISO
SWB01C0190****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SWB01900185
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000185
LPR Protruding length
96 mm
Name Identifying order number
C4-391.61-01 096
OAL Overall length
120 mm
STDNO Standard
ISO26623-1
WT Weight of item
0.73 kg
