Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric C4-391.20-06 050

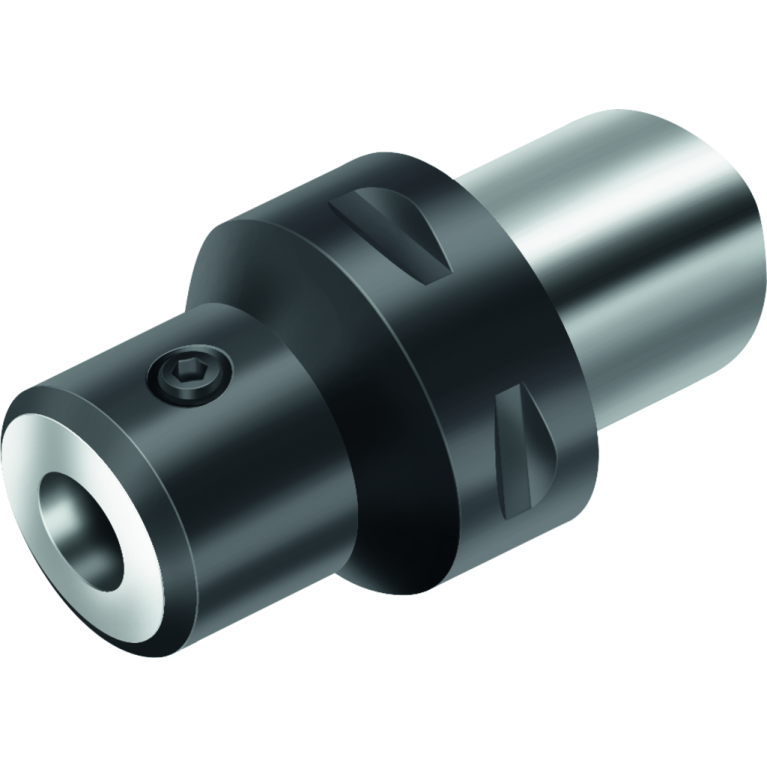

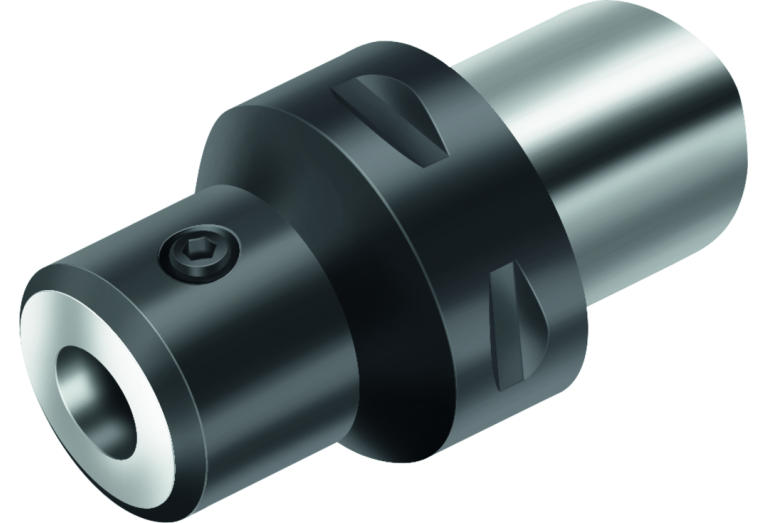

C4-391.20-06 050

C4-391.20-06 050 C4-391.20-06 050 C4-391.20-06 050

C4-391.20-06 050

Walter
Артикул: 5012619
В наличии
В корзину
Описание
Характеристики
BD Body diameter
25 mm
CCFWS Form
10
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0060
DCONWS Diameter
6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS04000195
FamilyProducts
Weldon shank adaptor C.-391.20
ID Technical product number
5012619
Interface codes
J6 / J61
ISO
CCS01C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
26.5 mm
LF Functional length
50 mm
LOC-01 CCFWS Form
10
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0060
LOC-01 DCONWS Diameter
6 mm
LOC-01 ISO
ZYL10F6000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00601015
LOC-02 CCFWS Form
10
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0060
LOC-02 DCONWS Diameter
6 mm
LOC-02 ISO
ZYL10R2362****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL00601815
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LPR Protruding length
50 mm
LS Shank length
24 mm
Name Identifying order number
C4-391.20-06 050
OAL Overall length
74 mm
RPMX Rotational speed maximum
39000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
0.381 kg
