Главная Каталог продукции Toolunited 15 401-01 - Converter, rotationally symmetric DIN69871 50 ER32X200

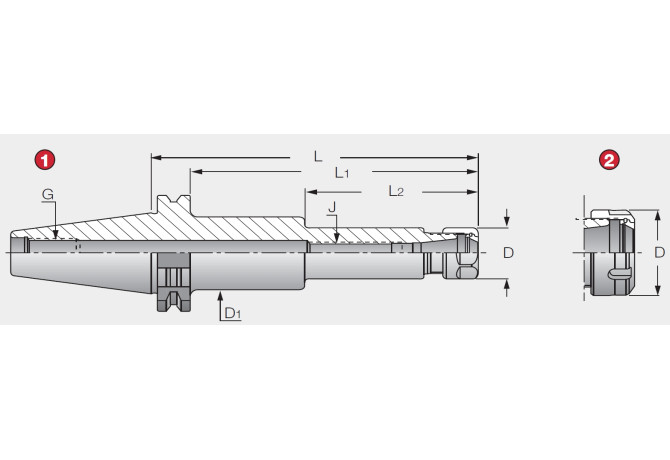

DIN69871 50 ER32X200

DIN69871 50 ER32X200 DIN69871 50 ER32X200

DIN69871 50 ER32X200

Tungaloy
Артикул: 4511009
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
1 - Radial adjustment possible
ADJHT Adujstment height property
0
BD Body diameter
50 mm
BLDEV Balancing device
0
BLQ Balance quality code
G2.5
CCFWS Form
02
CCONWS Connection count workpiece side
1
CCSWS Style
5
CCTWS Type
SZD
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
TT - Tungaloy
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0320
DCONWS Diameter
2 mm
DCONXWS Connection diameter max
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
9/27/2012
DIN
SKG05001115
FamilyProducts
collet chuck DIN69871-ER
HAND Cutting direction
N - Neutral
ID Technical product number
4511009
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LAM Actuation method
0 - manual clamping
LB Body length 1
180.9 mm
LOC-01 CCFWS Form
02
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SZD Collet adapter DIN / ISO
LOC-01 CZCWS Size code
0320
LOC-01 DCONWS Diameter
2 mm
LOC-01 DCONXWS Connection diameter max
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD03200215
LOC-03 CCFMS Form
11
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SKG steep taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05001115
LPR Protruding length
200 mm
Name Identifying order number
DIN69871 50 ER32X200
NameAnsi Identifying order number inch alternative
DIN69871 50 ER32 X 200
PENDP Pendulum property
0 - Without
Rotation Rotation indicator
1 - rotating tool
RPMX Rotational speed maximum
25000 1/min
STDNO Standard
DIN69871
TCMC Tool change method code
0 - manual tool change
